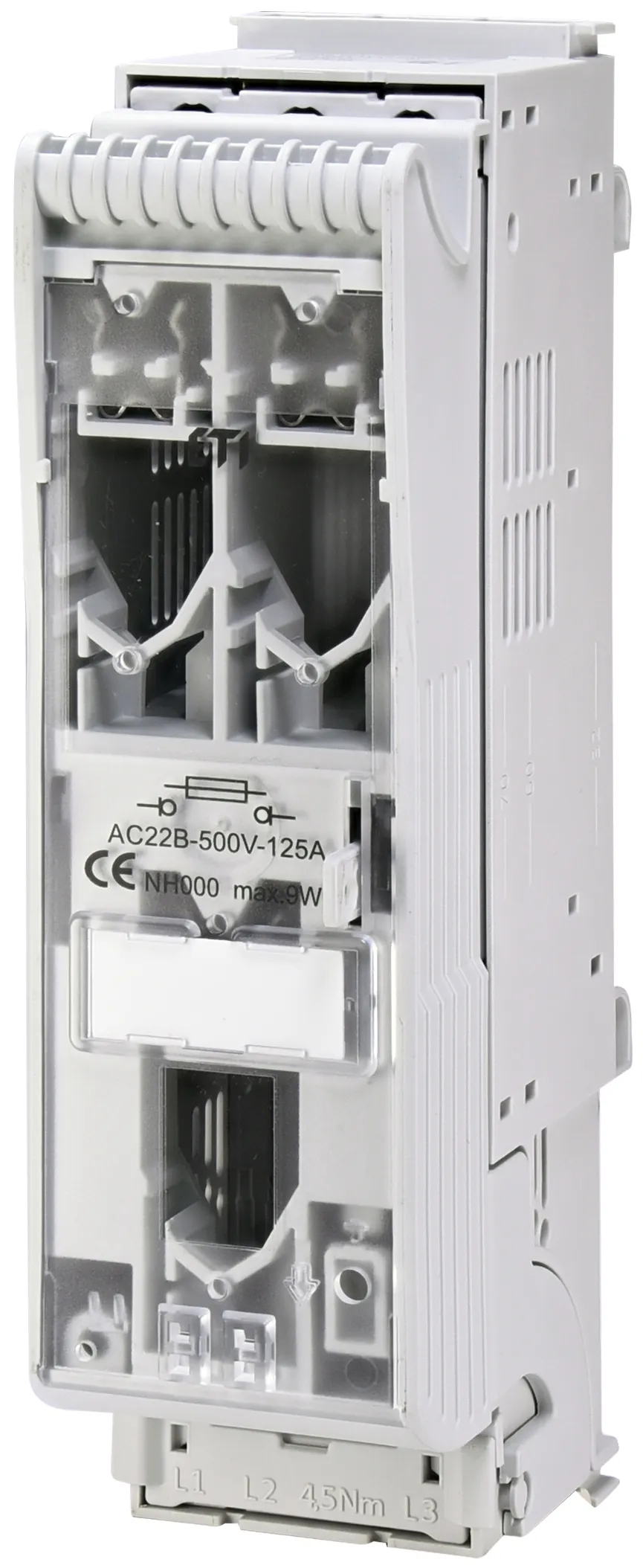

Fuse switch disconnector KVL-B-000 3p F50 Top 001690916
Specifications
- ETI Code:
- 001690916
- Description:
- KVL-B-000 3p F50 Top
- Class name:
- Fuse switch disconnector
- Altitude (m):
- ≤ 2000
- Rated short-time withstand current Icw (kA):
- 5/1 s
- Clamping cross-section (mm²):
- 1,5 ... 50
- Rated operational current Ie AC-21 A/B at 690V (A):
- 80
- Function:
- Fuse switch disconnector
- Number of poles:
- 3
- Rated conditional short-circuit current Inc (kA):
- 80 (500 V AC)
- Rated Frequency (Hz):
- 40 ... 60
- Voltage type:
- AC
- Rated impulse withstand voltage Uimp (kV):
- 6
- Size:
- 000
- Overvoltage Category:
- III
- IP rating:
- IP20
- Utilization category:
- AC-22B / AC-21B
- Connection:
- Top
- Mounting:
- Vertical / Horizontal
- Ambient temperature (°C):
- -25 ... +55
- Pollution degree:
- 2
- Rated insulation voltage (V):
- 800
- Max. rated operational voltage (V AC):
- 690
- Clamp material:
- Cu
- Power dissipation (W):
- 12
- Max. permissable power dissipation per fuse link (W):
- 12
- Mechanical cycles:
- 1400
- Electrical cycles:
- 200
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.58 kg
- Customs tariff
- 85363090
Level 1 Packaging
- EAN code for a basic packaging
Level 2 Packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895908067
- Transport packaging weight
- 0.781 kg
- Pallet quantity
- 500
ETIM Clasification
- Classification
- EC001040
- Class name
- Fuse switch disconnector
- Over voltage category
- III
- Mounting method
- Vertical / Horizontal
- Number of knife blade fuse holders
- 3
- Construction size
- 000
- Type of drive
- 40 ... 60
- Pollution degree
- 2
- Rated impulse withstand voltage Uimp
- 6
- Voltage type
- AC
- Max. rated operation voltage Ue AC
- 690V
- Rated permanent current Iu
- 125A
- Conditioned rated short-circuit current Iq
- 80kA
- Suitable for fuses
- NH000
- Number of poles
- 3
- Type of electrical connection of main circuit
- Frame clamp
- Cable entry
- Other
- Type of control element
- Other
- Position control element
- Other
- Degree of protection (IP), front side
- IP20
