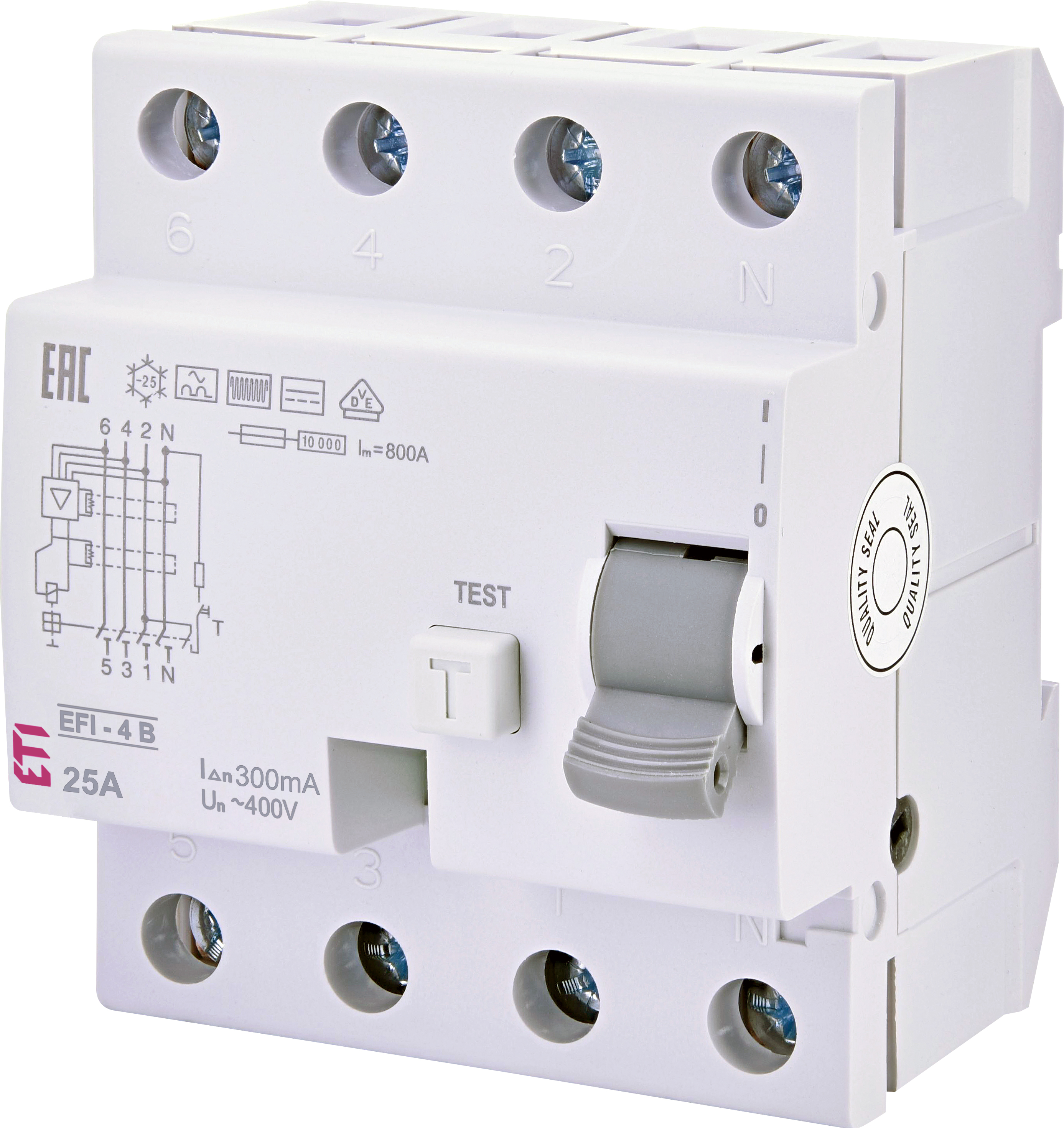

RCCB EFI-4 B 25/0.3 002064642 Obsolete
This product is obsolete and has been replaced with EFI-P4 B 25/0.3.
Compare products
Specifications
- ETI Code:
- 002064642
- Description:
- *EFI-4 B 25/0.3
- Class name:
- RCCB
- Rated residual current (A):
- 0.3
- Current type:
- B
- Rated current (A):
- 25
- Rated residual operating current IΔn (A):
- 0.3
- Type:
- B
- Number of poles:
- 3+N
- Rated conditional short-circuit current Inc (kA):
- 10
- Rated voltage (V):
- 400
- Rated Frequency (Hz):
- 50/60
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 61008, IEC/EN 62423
- IP rating:
- IP20
- Mounting type:
- TH 35
- Depth (mm):
- 68
Documents
Logistic Data
Product
- Net weight of the product
- 0.35 kg
- Customs tariff
- 85362010
- logis_net_width
- 72 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895693116
- Basic packaging weight
- 0.354 kg
Transport packaging
- Transport packaging quantity
- 27
- EAN code for a transport packaging
- 3838895693123
- Transport packaging weight
- 9.92 kg
- Pallet quantity
- 1404
ETIM Clasification
- Classification
- EC000003
- Class name
- Residual current circuit breaker (RCCB)
- Degree of protection (IP), front side
- IP20
- Number of knife blade fuse holders
- 3+N
- Type of drive
- 50/60
- Number of poles
- 4
- Rated voltage
- 230/400V
- Rated current
- 25A
- Rated fault current
- 0.3mA
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Mounting method
- DIN rail
- Leakage current type
- B
- Short-circuit breaking capacity (Icw)
- 10kA
- Frequency
- Other
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Built-in depth
- 68mm
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 1-25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
