RCCB EFI-P4 B 25/0.3 002061971
Specifications
- ETI Code:
- 002061971
- Description:
- EFI-P4 B 25/0.3
- Class name:
- RCCB
- Current type:
- B
- Rated residual current (A):
- 300
- Mounting:
- DIN rail
- IP rating:
- 20
- Depth (mm):
- 70
- Rated current (A):
- 25
- Rated residual operating current IΔn (A):
- 0.3
- Number of poles:
- 3p+N
- Rated conditional short-circuit current Inc (kA):
- 10
- Tripping time:
- Undelayed
- Rated voltage (V):
- 415
- Rated Frequency (Hz):
- 50/60
- Terminals (mm²):
- 1...25
- Standards:
- EN/IEC 61008-1, IEC 62423
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.4 kg
- Customs tariff
- 85362010
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400096937
- Basic packaging weight
- 0.43 kg
Level 2 Packaging
- Transport packaging quantity
- 27
- EAN code for a transport packaging
- 3838400096944
- Transport packaging weight
- 11.91 kg
- Pallet quantity
- 1404
ETIM Clasification
- Classification
- EC000003
- Class name
- Residual current circuit breaker (RCCB)
- Degree of protection (IP), front side
- 20
- Number of knife blade fuse holders
- 3p+N
- Type of drive
- 50/60
- Number of poles
- 4
- Rated voltage
- 415V
- Rated current
- 25A
- Rated fault current
- 300mA
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Mounting method
- DIN rail
- Leakage current type
- B
- Selective protection
- No
- Short-time delayed tripping
- No
- Short-circuit breaking capacity (Icw)
- 10kA
- Surge current capacity
- 3kA
- Frequency
- 50/60 Hz
- Additional equipment possible
- Yes
- With interlocking device
- No
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Built-in depth
- 70mm
- Ambient temperature during operating
- -40…70°C
- Pollution degree
- 2
- Connectable conductor cross section multi-wired
- 1...25mm²
- Connectable conductor cross section solid-core
- 1...25mm²

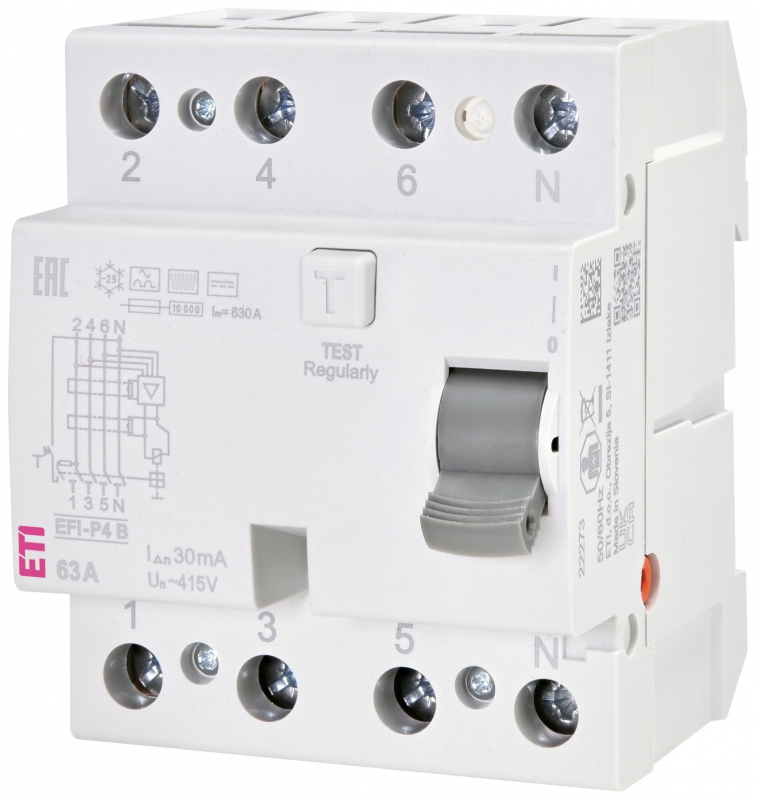

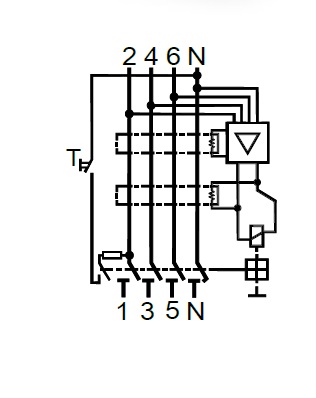

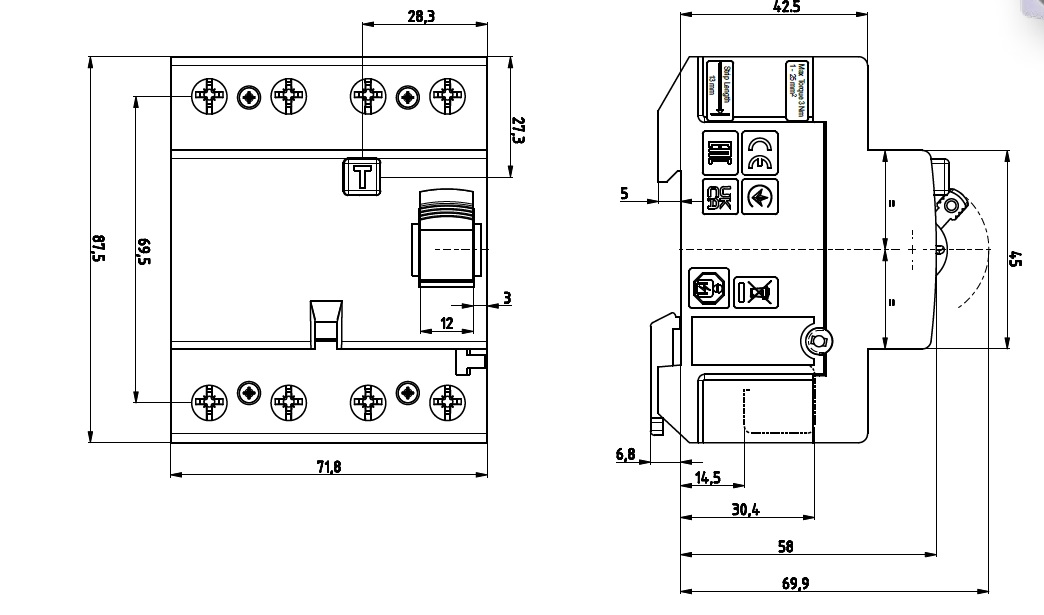

Images & Diagrams
