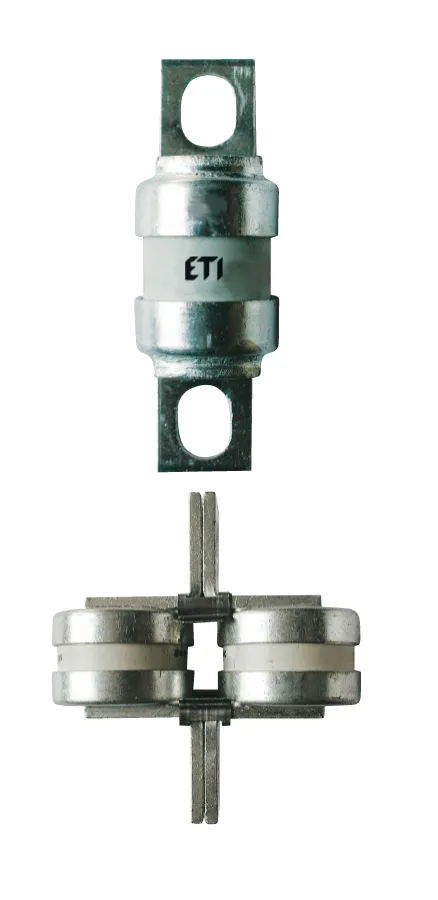

Fuse link BS17UQ/41/35A/240V 004750109 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004750109
- Description:
- *BS17UQ/41/35A/240V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- BS
- Size:
- BS17
- Rated current (A):
- 35
- Rated AC voltage (V):
- 240
- Rated DC voltage (V):
- 120
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 100
- Breaking capacity DC (kA):
- 100
- Application:
- For protection of semiconductor devices
- Power dissipation (W):
- 2,3
- Operating joule integral (A2s):
- 500
- Standards:
- IEC 60269-4, BS88 Part 4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895361831
- Net weight of the product
- 0.048 kg
- Customs tariff
- 85361050
- logis_net_width
- 18 mm
- logis_net_height
- 56 mm
- logis_net_depth
- 19 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895415855
- Basic packaging weight
- 0.155 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895361145
- Transport packaging weight
- 0.48 kg
- Pallet quantity
- 16670
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Rated voltage DC
- 120
- Rated current
- 35
- Application
- For protection of semiconductor devices
- Max. rated operation voltage Ue AC
- 240
- Construction size
- BS17
- Size
- Other
- Rated voltage
- Other
- Utilization category
- Other
- Nominal current
- 35A
- Breaking capacity
- 100kA
Characteristic
