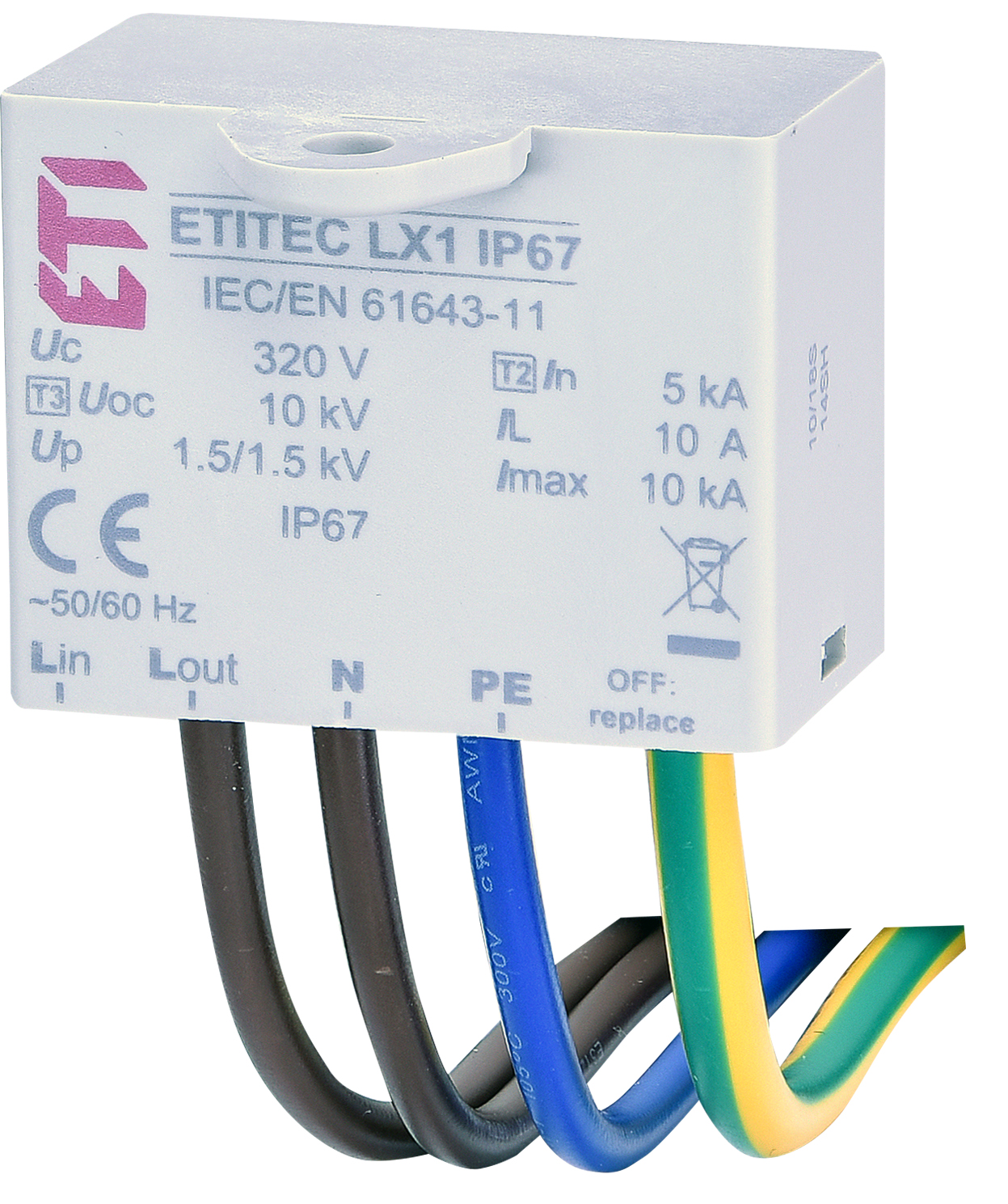

Surge arrester ETITEC LX1 IP67 002442983
Specifications
- ETI Code:
- 002442983
- Description:
- ETITEC LX1 IP67
- Class name:
- Surge arrester
- Network system:
- TT/TN-S
- AC max continous operating voltage Uc:
- 320
- Usage (IEC/VDE):
- II, III / C, D
- Current type:
- AC
- Function:
- SPD
- Rated voltage (V):
- 230
- Type:
- T2, T3
- Short circuit capacity (kA):
- 10
- Mounting:
- Other
- Catalogue Group:
- ETITEC LED
- Up - Voltage protection level (kV):
- 1,5
- Leakage current:
- NO
- Applied technology:
- MOV+GDT
- Max. discharge current Imax, 8/20 (kA):
- 10
- In 8/20 (kA):
- 5
- Installation:
- LED Street lighting protection
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895829584
- Net weight of the product
- 0.052 kg
- Customs tariff
- 85363090
- logis_net_width
- 37 mm
- logis_net_height
- 30 mm
- logis_net_depth
- 30 mm
Basic packaging
- Basic packaging quantity
- 18
- EAN code for a basic packaging
- 3838895859352
- Basic packaging weight
- 1.23 kg
Transport packaging
- Transport packaging quantity
- 216
- EAN code for a transport packaging
- 3838895829591
- Transport packaging weight
- 15.628 kg
- Pallet quantity
- 8640
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- Rated short-circuit breaking capacity according to EN 60898
- 10
- Leakage current type
- AC
- Rated voltage
- 230
- Degree of protection (IP), front side
- IP20
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN-C
- No
- System configuration TN-S
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 5
- Nominal voltage AC
- 230
- Short-circuit breaking capacity (Isccr)
- 10
- Max. continuous voltage AC
- 320
- Max. discharge surge current (8/20)
- 10
- Mounting method
- Other
- Construction size
- Other
- Max. conductor cross section solid (solid, stranded)
- 1,5
- With remote signalling contact
- No
- Integrated backup fuse
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
