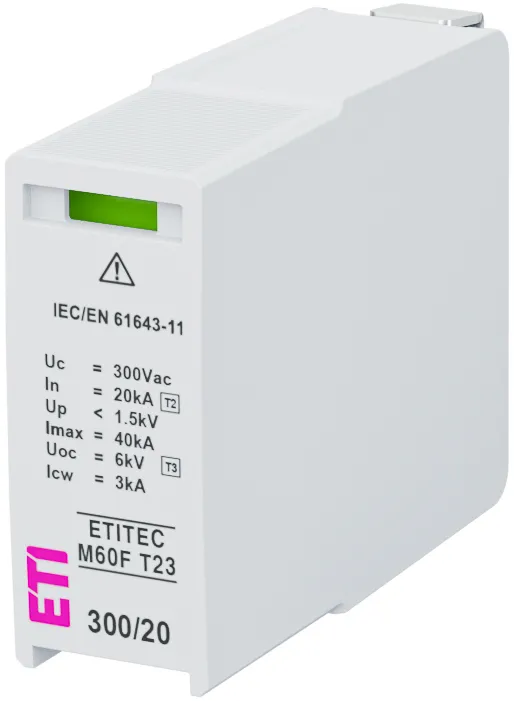

Surge arrester MOD.ETITEC M60F T23 300/20 002440864
Specifications
- ETI Code:
- 002440864
- Description:
- MOD.ETITEC M60F T23 300/20
- Class name:
- Surge arrester
- Function:
- SPD Module
- Type:
- T2, T3
- For use with:
- ETITEC M60F T23
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.069 kg
- Customs tariff
- 85363090
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400113986
- Basic packaging weight
- 0.076 kg
Level 2 Packaging
- Transport packaging quantity
- 28
- EAN code for a transport packaging
- 3838400113993
- Transport packaging weight
- 1.52 kg
- Pallet quantity
- 9324
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- Rated voltage
- No
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TN-S
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Nominal voltage AC
- 300
- Short-circuit breaking capacity (Isccr)
- 25
- Max. continuous voltage AC
- 300
- Max. discharge surge current (8/20)
- 40
- Mounting method
- Other
- Construction size
- No
- Voltage protection level
- 1,5
- Integrated backup fuse
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
MOD.ETITEC M60F T23 300/20
