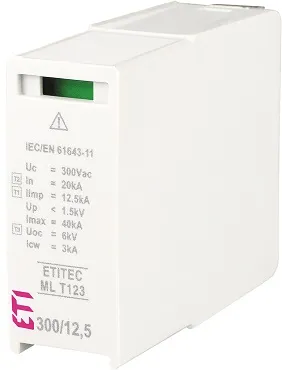

Surge arrester MOD.ETITEC ML T123 300/12,5 002440673
Specifications
- ETI Code:
- 002440673
- Description:
- MOD.ETITEC ML T123 300/12,5
- Class name:
- Surge arrester
- Function:
- SPD Module
- Type:
- T1, T2, T3
- For use with:
- ETITEC ML T123
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895927280
- Net weight of the product
- 0.094 kg
- Customs tariff
- 85363090
Transport packaging
- Transport packaging quantity
- 28
- EAN code for a transport packaging
- 3838895927297
- Transport packaging weight
- 3.185 kg
- Pallet quantity
- 5264
ETIM Clasification
- Classification
- EC001457
- Class name
- Combined arrester for power supply systems
- Number of knife blade fuse holders
- 1
- Degree of protection (IP), front side
- IP20
- Nominal discharge surge current (8/20)
- 20
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TN-S
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Number of poles
- 1
- Lightning impulse current (10/350 µs)
- 12,5
- Max. continuous voltage AC
- 300
- Nominal voltage AC
- 240
- Voltage protection level
- 1,5
- Specific energy (W/R)
- 39
- Mounting method
- On basic element
- Construction size
- Other
- Signalling at the device
- Optical
- Test class
- Type 1 + 2
- Exhausting
- No
- Integrated backup fuse
- No
MOD.ETITEC ML T123 300/12,5
