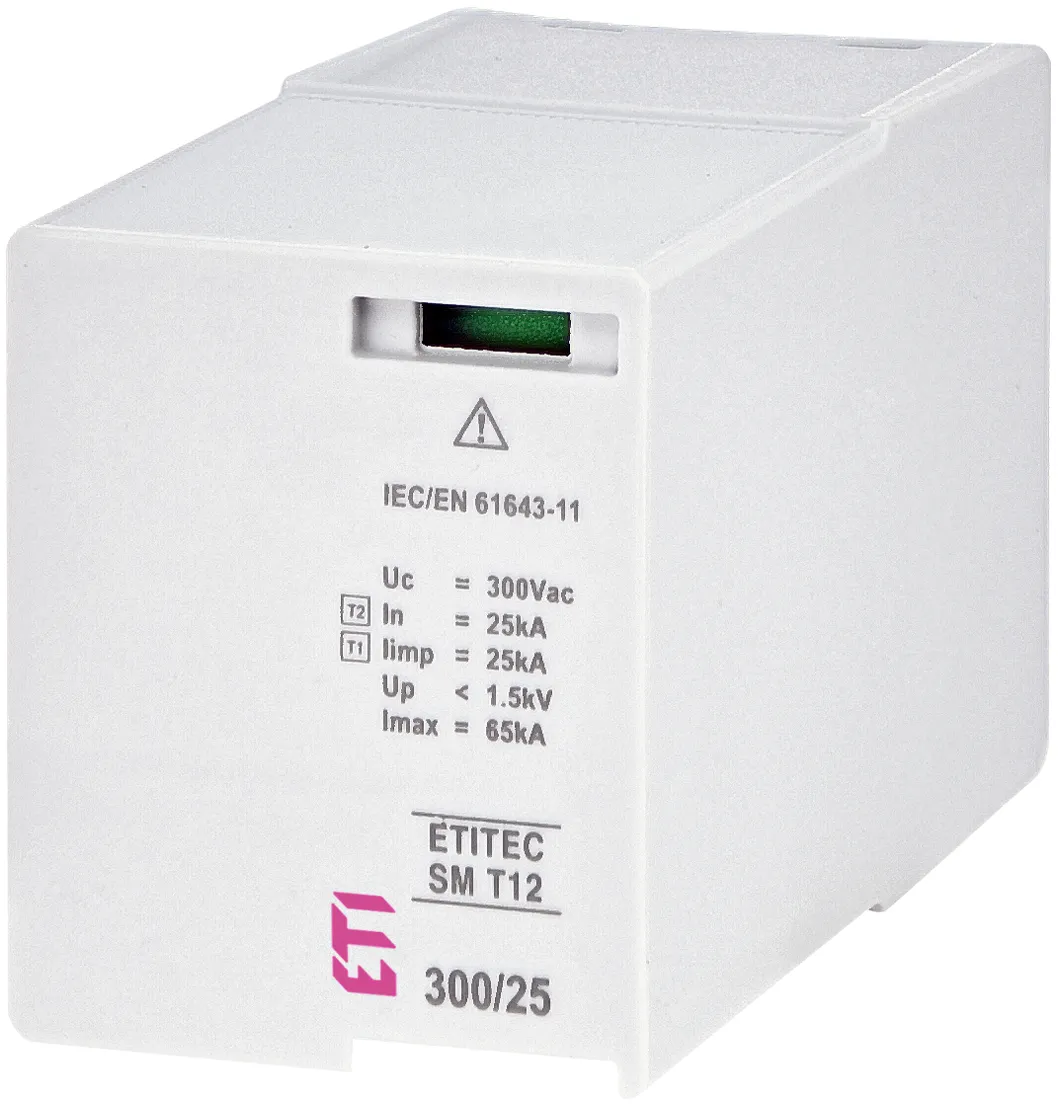

Surge arrester MOD. ETITEC SM T12 300/25 002440575
Specifications
- ETI Code:
- 002440575
- Description:
- MOD. ETITEC SM T12 300/25
- Class name:
- Surge arrester
- Function:
- SPD Module
- Type:
- T1, T2
- For use with:
- ETITEC SM T12
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895847595
- Net weight of the product
- 0.13 kg
- Customs tariff
- 85363090
Level 1 Packaging
- EAN code for a basic packaging
Level 2 Packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838895847601
- Transport packaging weight
- 1.416 kg
- Pallet quantity
- 1620
ETIM Clasification
- Classification
- EC001457
- Class name
- Combined arrester for power supply systems
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TN-S
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Number of poles
- 1
- Lightning impulse current (10/350 µs)
- 25
- Max. continuous voltage AC
- 300
- Nominal voltage AC
- 240
- Voltage protection level
- 1,5
- Specific energy (W/R)
- 156,2
- Mounting method
- On basic element
- Construction size
- Other
- Signalling at the device
- Optical
- Test class
- Type 1 + 2
- Exhausting
- No
- Integrated backup fuse
- No
MOD. ETITEC SM T12 300/25
