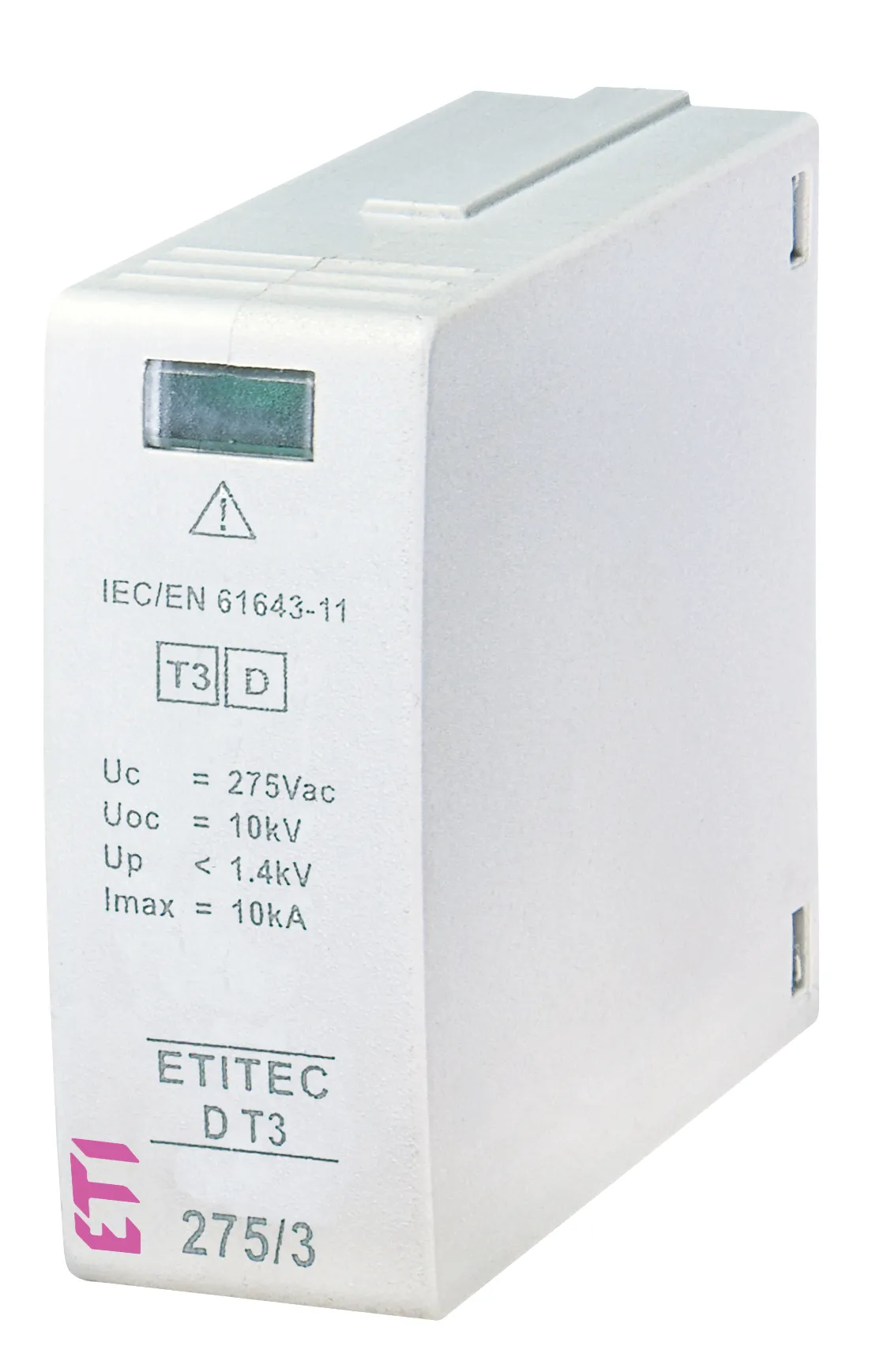

Surge arrester MOD.ETITEC D T3 275/3 002440421

Specifications

ETI Code:
002440421
Description:
MOD.ETITEC D T3 275/3
Class name:
Surge arrester
Function:
SPD Module
Type:
T3
For use with:
ETITEC D T3

Documents

Product

EAN code for a single product
3838895773221
Net weight of the product
0.058  kg
Customs tariff
85363090
logis_net_width
18  mm
logis_net_height
45  mm

Transport packaging

Transport packaging quantity
12
EAN code for a transport packaging
3838895773238
Transport packaging weight
0.064  kg
Pallet quantity
15120
Classification
EC000942
Class name
Surge protection device for terminal equipment
Mounting method
On basic element
Nominal voltage AC
230
Max. continuous voltage AC
275
Nominal discharge surge current (8/20) (L-N)
3
Category type 3
Yes
With interference suppressor filter
No
Degree of protection (IP)
IP20
ETIM Classification – Version 7.0
002440421 Flush mounted enclosure Surge arrester, MOD.ETITEC D T3 275/3 ETITEC Surge arresters Surge arresters ETITEC D T3 ETITEC D T3 ETITEC D T3 Surge arresters ETITEC Accessories Function SPD Module Short circuit capacity 25kA Type T3 Current type AC Rated voltage 230V For use with ETITEC D T3 Size 1 module Number of poles 1 Usage III IEC/VDE DIEC/VDE Max. discharge current Imax, 8/20 10kA IP rating IP20 Mounting On basic element Network system TN TT Catalogue Group ETITEC D Installation Home and residental building protection In 8/20 5kA Leakage current YES Applied technology MOV AC max continous operating voltage Uc 275 Surge arrester MOD.ETITEC
