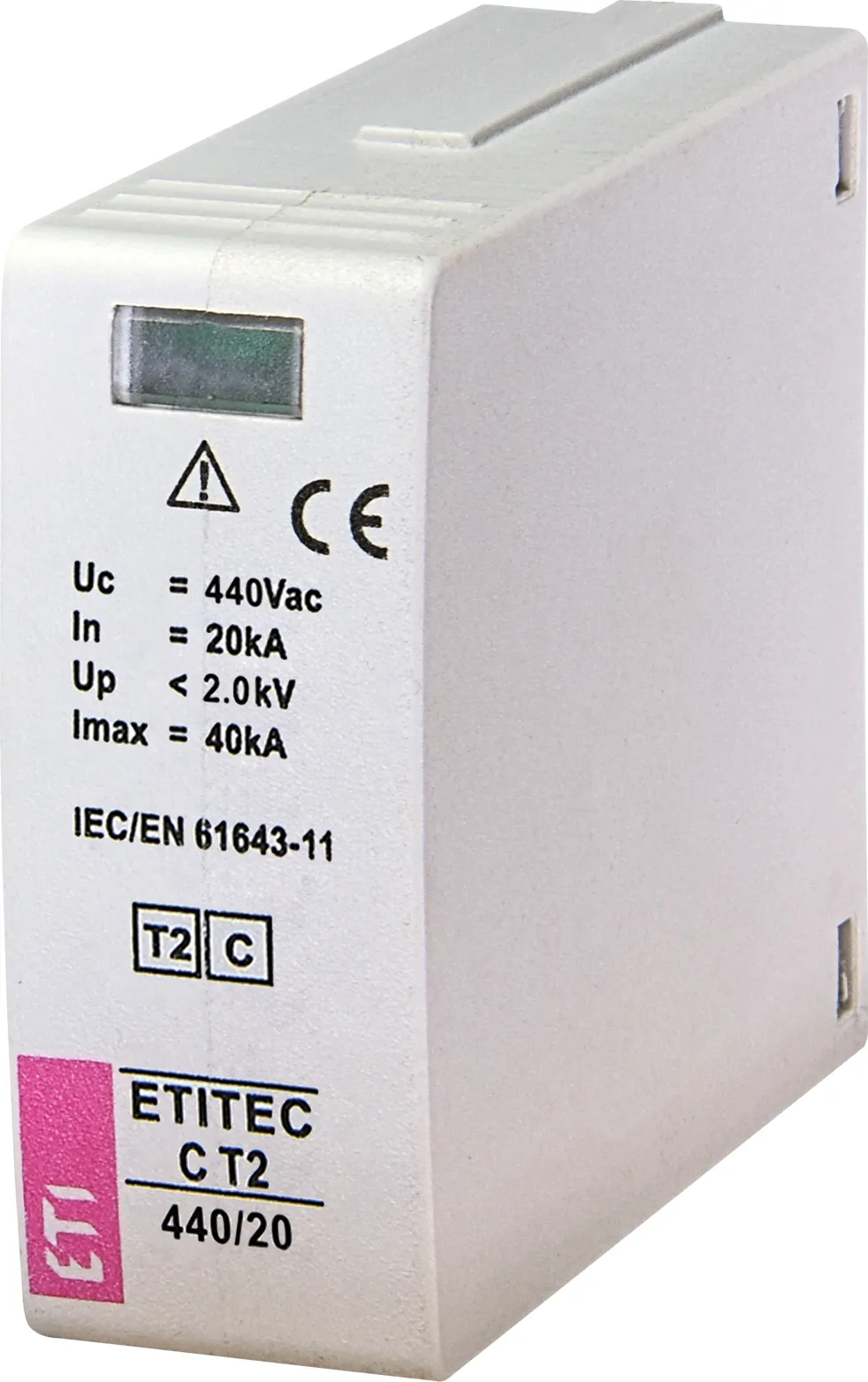

Surge arrester MOD. ETITEC C T2 440/20 002440415
Specifications
- ETI Code:
- 002440415
- Description:
- MOD. ETITEC C T2 440/20
- Class name:
- Surge arrester
- Function:
- SPD Module
- Type:
- T2
- For use with:
- ETITEC C T2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895773122
- Net weight of the product
- 0.058 kg
- Customs tariff
- 85363090
- logis_net_width
- 18 mm
- logis_net_height
- 45 mm
Level 1 Packaging
- EAN code for a basic packaging
Level 2 Packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895773139
- Transport packaging weight
- 0.064 kg
- Pallet quantity
- 15120
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- Degree of protection (IP), front side
- IP20
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TN-S
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20
- Nominal voltage AC
- 400
- Short-circuit breaking capacity (Isccr)
- 25
- Max. continuous voltage AC
- 440
- Max. discharge surge current (8/20)
- 40
- Mounting method
- On basic element
- Voltage protection level
- 2
- Integrated backup fuse
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
