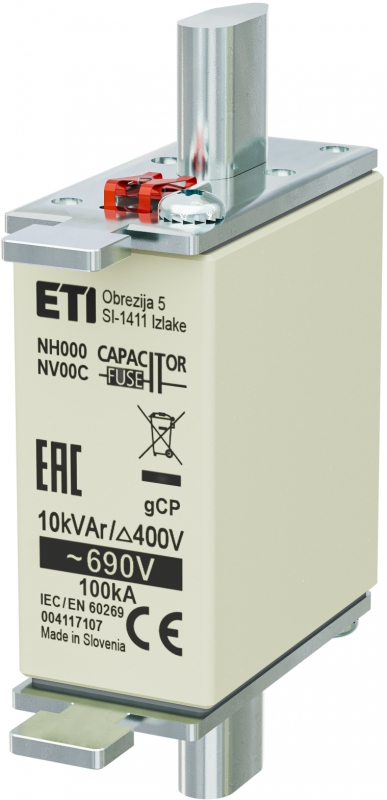

Fuse link NH000 gCP 10kVAr/690V 004117107
Specifications
- ETI Code:
- 004117107
- Description:
- NH000 gCP 10kVAr/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH000
- Rated power (kVAr):
- 10
- Rated AC voltage (V):
- 690
- Characteristics:
- gCP
- Breaking capacity AC (kA):
- 100
- Application:
- Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 2
- Standards:
- IEC 60269
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400063076
- Net weight of the product
- 120 g
- Customs tariff
- 85361050
- logis_net_width
- 21 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 52 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895734840
- Basic packaging weight
- 0.38 kg
Transport packaging
- Transport packaging quantity
- 120
- EAN code for a transport packaging
- 3838895734857
- Transport packaging weight
- 15.435 kg
- Pallet quantity
- 6240
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH000
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
