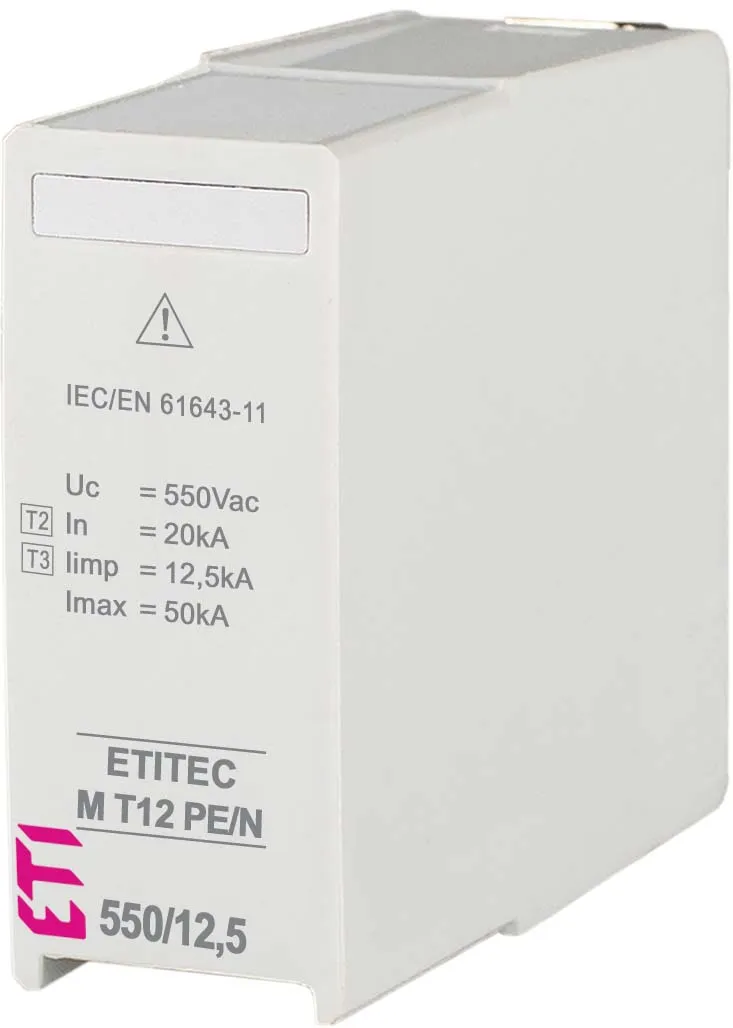

Surge arrester MOD.ETITEC M T12 550/12,5 PE/N 002440813
Specifications
- ETI Code:
- 002440813
- Description:
- MOD.ETITEC M T12 550/12,5 PE/N
- Class name:
- Surge arrester
- Usage (IEC/VDE):
- I, II / B, C
- Current type:
- AC
- Function:
- SPD Module
- Type:
- T1, T2
- For use with:
- ETITEC M T12 AC
- Size:
- 1 module
- IP rating:
- IP20
- Mounting:
- On basic element
- Catalogue Group:
- ETITEC M AC
- Leakage current:
- YES
- Applied technology:
- MOV
- Iimp(10/350) impulse current (kA):
- 12,5
- Max. discharge current Imax, 8/20 (kA):
- 50
- In 8/20 (kA):
- 20
- Installation:
- PV inverters protection on the AC side
Documents
Logistic Data
Product
- Net weight of the product
- 0.128 kg
- Customs tariff
- 85363090
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895985112
- Basic packaging weight
- 0.141 kg
Transport packaging
- Transport packaging quantity
- 28
- EAN code for a transport packaging
- 3838895985129
- Transport packaging weight
- 4.337 kg
- Pallet quantity
- 3864
ETIM Clasification
- Classification
- EC001457
- Class name
- Combined arrester for power supply systems
- Leakage current type
- AC
- Nominal discharge surge current (8/20)
- 20
- Number of knife blade fuse holders
- MOV
- Degree of protection (IP), front side
- 20
- System configuration DC
- Yes
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TN-C-S
- No
- System configuration TN-S
- No
- System configuration TT
- No
- System configuration other
- No
- Number of poles
- 1
- Lightning impulse current (10/350 µs)
- 12,5
- Max. continuous voltage AC
- 550
- Mounting method
- On basic element
- Signalling at the device
- Optical
- Test class
- Type 1 + 2
- Exhausting
- No
- Integrated backup fuse
- No
- Degree of protection (IP)
- IP20
