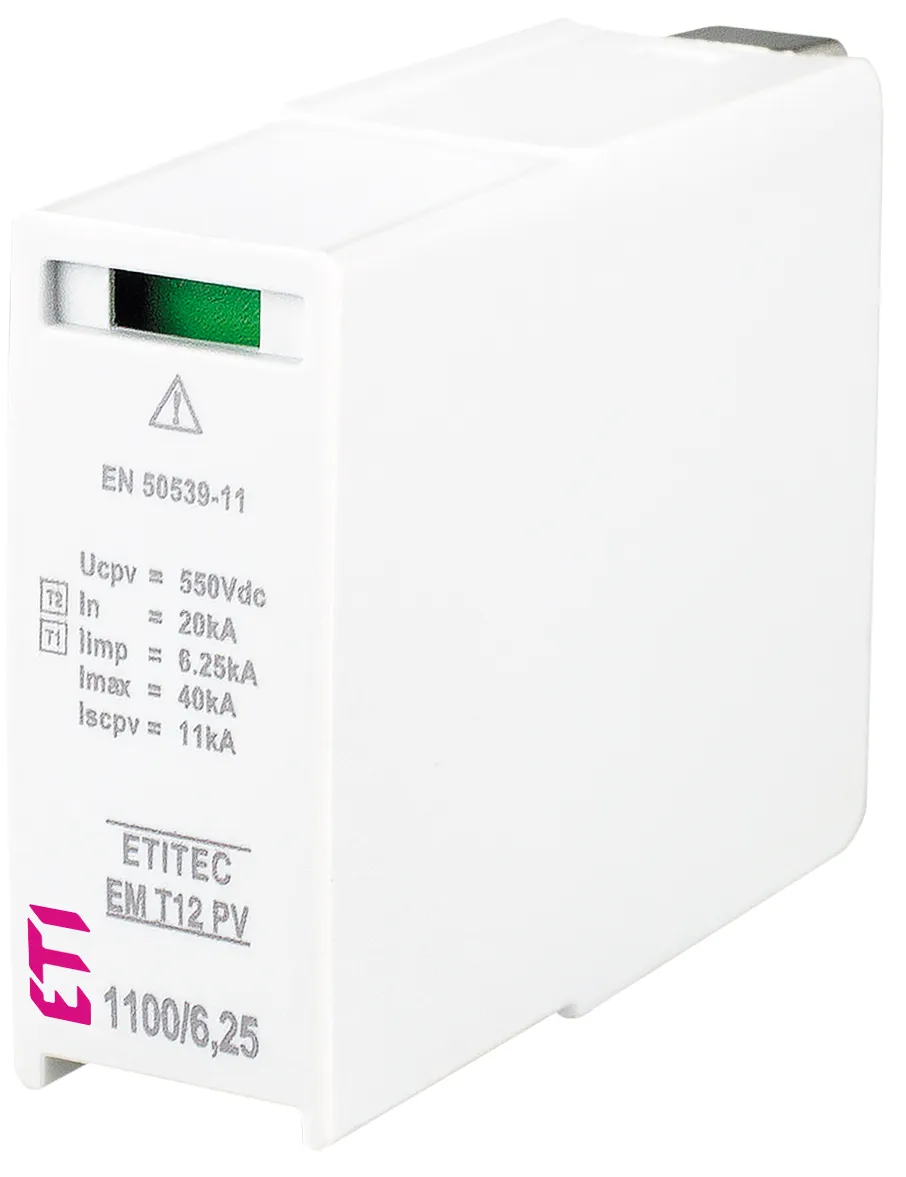

Surge arrester MOD. EM T12 PV 550/6,25 002440584
Specifications
- ETI Code:
- 002440584
- Description:
- MOD. EM T12 PV 550/6,25
- Class name:
- Surge arrester
- Usage (IEC/VDE):
- I, II / B, C
- Current type:
- DC
- Function:
- SPD Module
- Type:
- T1, T2
- For use with:
- ETITEC EM T12 PV
- Size:
- 1 module
- IP rating:
- IP20
- Mounting:
- On basic element
- Catalogue Group:
- ETITEC EM PV
- Leakage current:
- YES
- Applied technology:
- MOV
- Iimp(10/350) impulse current (kA):
- 6,25
- Max. discharge current Imax, 8/20 (kA):
- 40
- In 8/20 (kA):
- 20
- Installation:
- PV protection
Documents
Logistic Data
Product
- Net weight of the product
- 0.079 kg
- Customs tariff
- 85363090
- logis_net_width
- 18 mm
- logis_net_height
- 45 mm
- logis_net_depth
- 74 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895853039
- Basic packaging weight
- 0.087 kg
Transport packaging
- Transport packaging quantity
- 28
- EAN code for a transport packaging
- 3838895853046
- Transport packaging weight
- 2.677 kg
- Pallet quantity
- 5040
ETIM Clasification
- Classification
- EC001457
- Class name
- Combined arrester for power supply systems
- Number of knife blade fuse holders
- MOV
- Leakage current type
- DC
- Nominal discharge surge current (8/20)
- 20
- Degree of protection (IP), front side
- 20
- System configuration DC
- Yes
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TN-C-S
- No
- System configuration TN-S
- No
- System configuration TT
- No
- System configuration other
- No
- Number of poles
- 1
- Lightning impulse current (10/350 µs)
- 6,25
- Max. continuous voltage DC
- 550
- Mounting method
- On basic element
- Construction size
- Other
- Signalling at the device
- Optical
- Test class
- Type 1 + 2
- Exhausting
- No
- Integrated backup fuse
- No
- Degree of protection (IP)
- IP20
