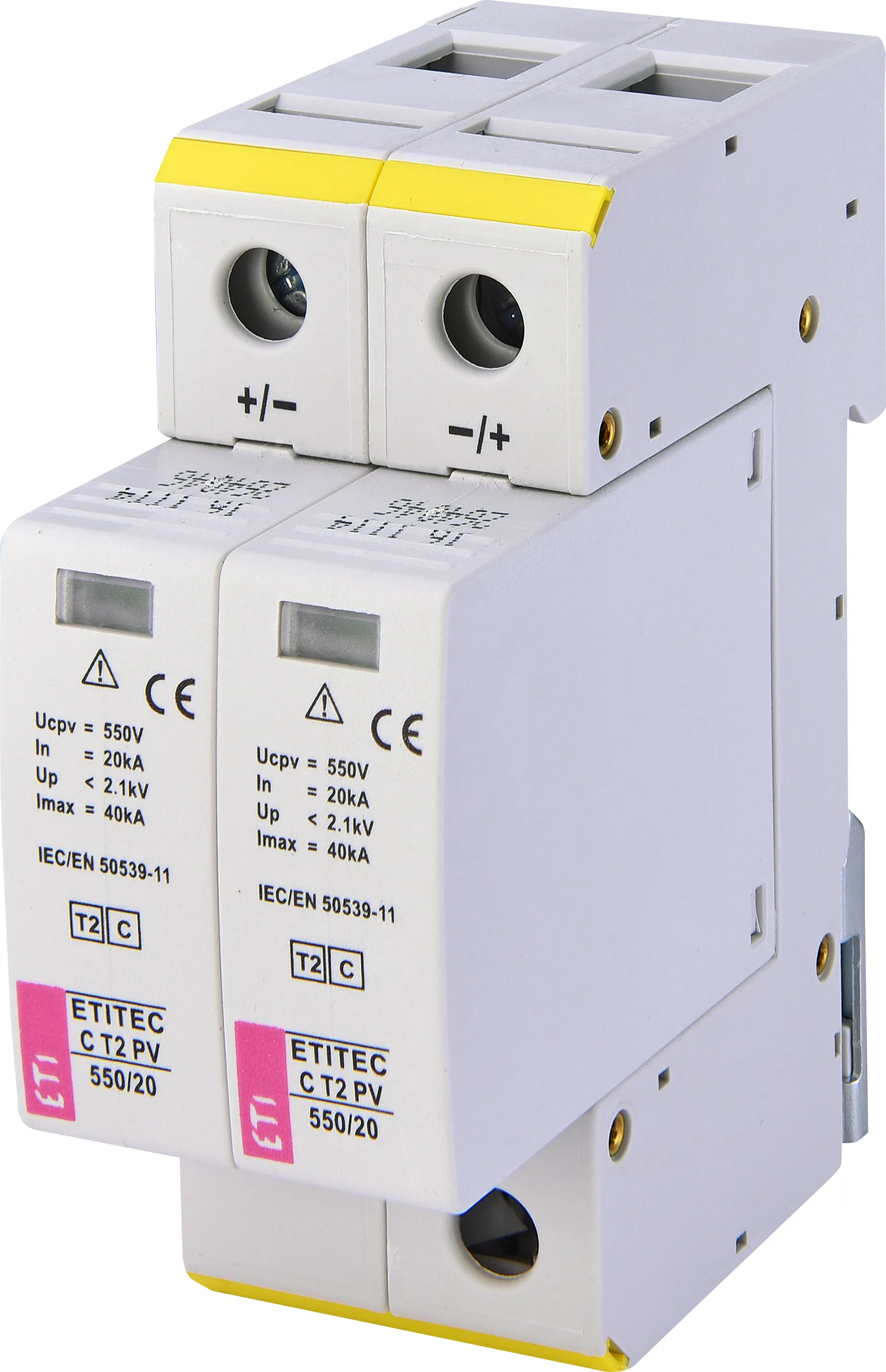

Surge arrester ETITEC C T2 PV 550/20 002440429
Specifications
- ETI Code:
- 002440429
- Description:
- ETITEC C T2 PV 550/20
- Class name:
- Surge arrester
- Usage (IEC/VDE):
- II / C
- Current type:
- DC
- Function:
- SPD
- Type:
- T2
- Number of poles:
- 2
- Size:
- 2 modules
- IP rating:
- IP20
- Mounting:
- DIN rail (top hat rail) 35 mm
- Catalogue Group:
- ETITEC C PV
- Number of modules:
- 2
- Up - Voltage protection level (kV):
- 0,7
- Leakage current:
- YES
- Applied technology:
- MOV
- Built-in depth (mm):
- 68
- Max. discharge current Imax, 8/20 (kA):
- 40
- Remote signalisation:
- NO
- In 8/20 (kA):
- 20
- Installation:
- PV protection
Documents
Logistic Data
Product
- Net weight of the product
- 0.302 kg
- Customs tariff
- 85363090
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895784470
- Basic packaging weight
- 0.332 kg
Transport packaging
- Transport packaging quantity
- 7
- EAN code for a transport packaging
- 3838895784487
- Transport packaging weight
- 2.558 kg
- Pallet quantity
- 1638
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- Leakage current type
- DC
- Degree of protection (IP), front side
- 20
- Number of knife blade fuse holders
- MOV
- System configuration DC
- Yes
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TN-C-S
- No
- System configuration TN-S
- No
- System configuration TT
- No
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20
- Short-circuit breaking capacity (Isccr)
- 0,1
- Max. discharge surge current (8/20)
- 40
- Max. continuous voltage DC
- 550
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- Other
- Voltage protection level
- 2,1
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- With remote signalling contact
- No
- Integrated backup fuse
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
