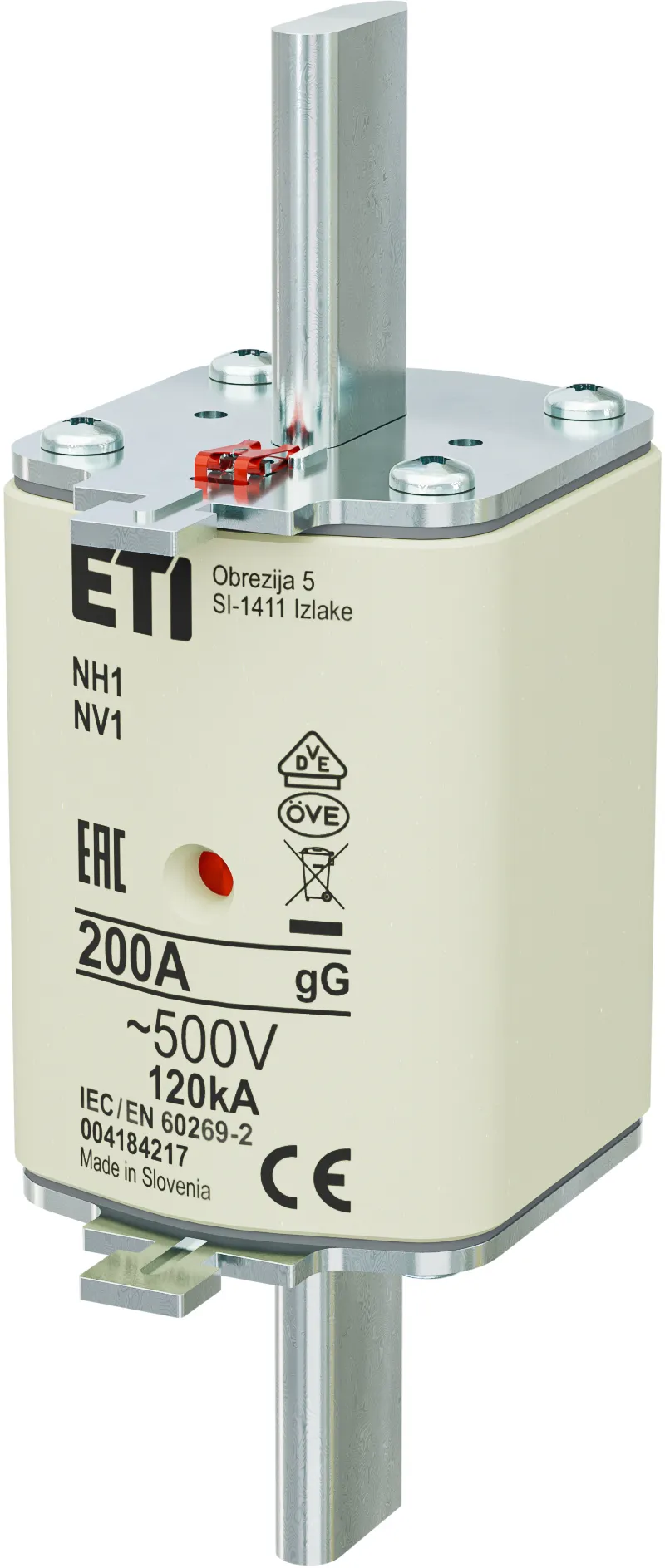

Fuse link NH1 gG 200A/500V 004184217

Specifications

ETI Code:
004184217
Description:
NH1 gG 200A/500V
Class name:
Fuse link
efuse:
1
Type:
NH
Size:
NH1
Rated current (A):
200
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
120
Application:
For cable protection
Indicator:
Combination fuse status indicator
Power dissipation (W):
13,5
Operating joule integral (A2s):
482.000
Prearcing joule integral (A2s):
116.000
Standards:
IEC 60269-1, IEC 60269-2

Documents

Product

EAN code for a single product
3838895354451
Net weight of the product
420  g
Customs tariff
85361090
logis_net_width
46  mm
logis_net_height
136  mm
logis_net_depth
65  mm

Basic packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895325765
Basic packaging weight
1.3  kg

Transport packaging

Transport packaging quantity
24
EAN code for a transport packaging
3838895325772
Transport packaging weight
10.9  kg
Pallet quantity
1248
Classification
EC000055
Class name
Low Voltage HRC fuse
Construction size
NH1
Rated current
200
Rated voltage
500
Voltage type
AC
Rated switching capacity
120
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
ETIM Classification – Version 7.0

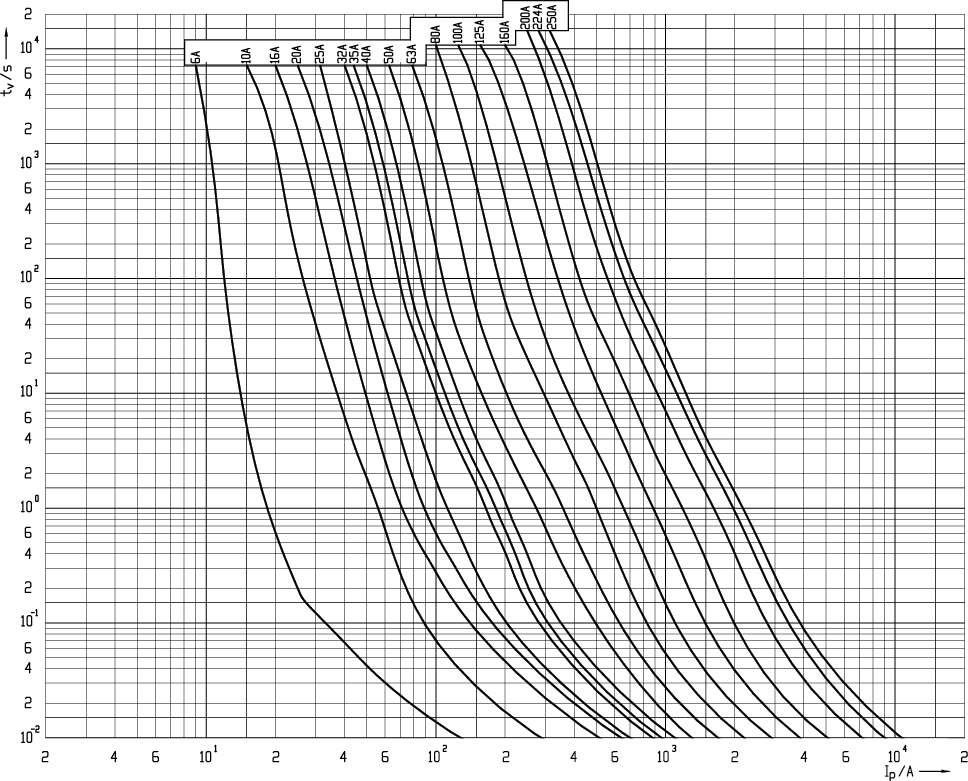

Images & Diagrams
