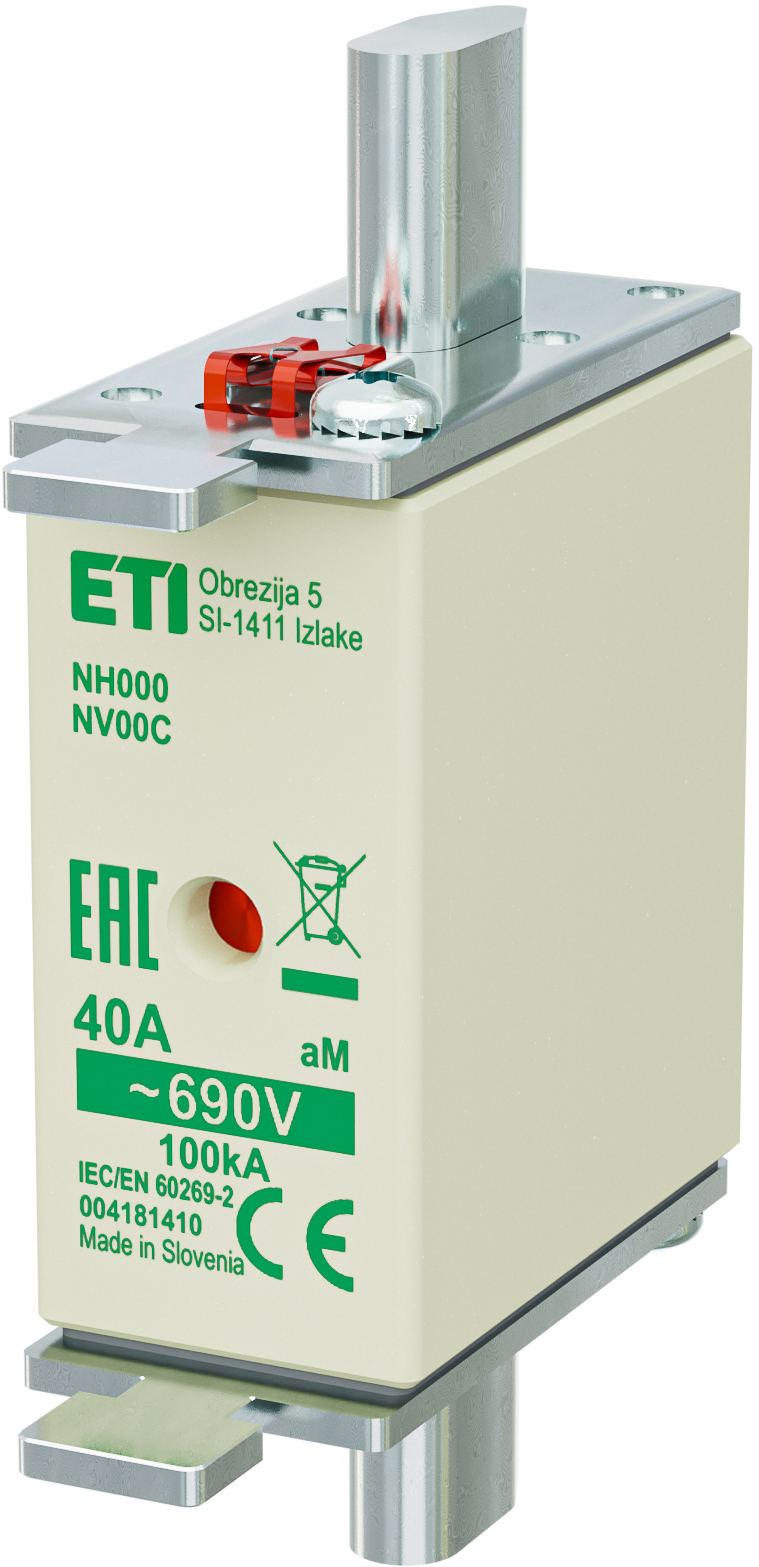

Fuse link NH000 aM 40A/690V 004181410
Specifications
- ETI Code:
- 004181410
- Description:
- NH000 aM 40A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- NH
- Size:
- NH000
- Rated current (A):
- 40
- Rated AC voltage (V):
- 690
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 100
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Indicator:
- Combination fuse status indicator
- Standards:
- VDE 0636-2011
Documents
Logistic Data
Product
- EAN code for a single product
- 5904722952232
- Net weight of the product
- 120 g
- Customs tariff
- 85361050
- logis_net_width
- 21 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 52 mm
Level 1 Packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895333982
- Basic packaging weight
- 0.377 kg
Level 2 Packaging
- Transport packaging quantity
- 120
- EAN code for a transport packaging
- 3838895333999
- Transport packaging weight
- 15.4 kg
- Pallet quantity
- 6240
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH000
- Rated current
- 40
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- aM (switchgear protection)
- Type of fuse status indicator
- Combination fuse status indicator
