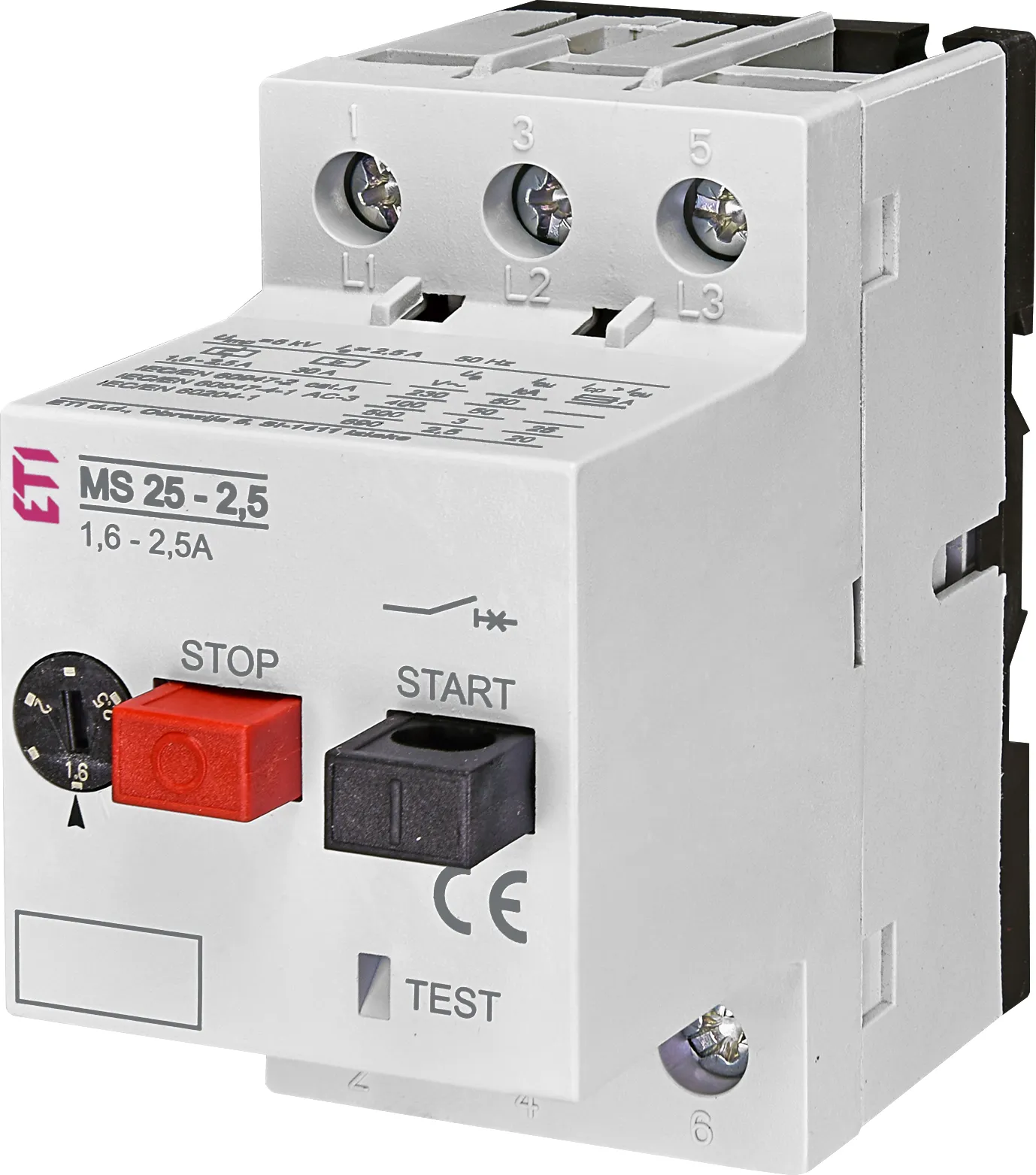

Mot.protec.circuit breaker MS25-2,5 004600070
Specifications
- ETI Code:
- 004600070
- Description:
- MS25-2,5
- Class name:
- Mot.protec.circuit breaker
- Current setting range (A):
- 1,6 - 2,5
- Short-circuit release Irm (A):
- 35
- Rated operation power at AC3 (kW):
- 0,75…1,1
- Max. rated operational voltage (V AC):
- 690
Documents
Logistic Data
Product
- Net weight of the product
- 0.255 kg
- Customs tariff
- 85365019
- logis_net_width
- 45 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 87 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895576310
- Basic packaging weight
- 0.25 kg
Transport packaging
- Transport packaging quantity
- 50
- EAN code for a transport packaging
- 3838895576327
- Transport packaging weight
- 12.5 kg
- Pallet quantity
- 3200

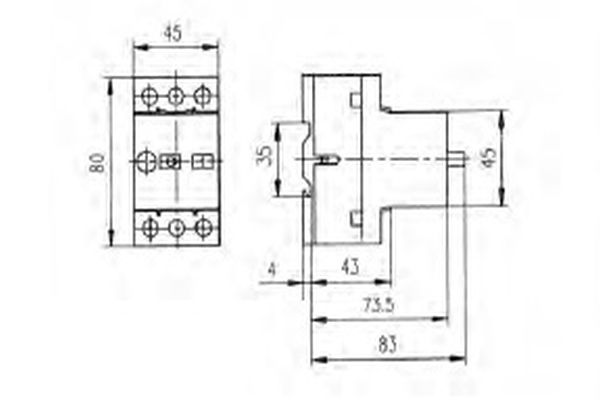

Images & Diagrams
