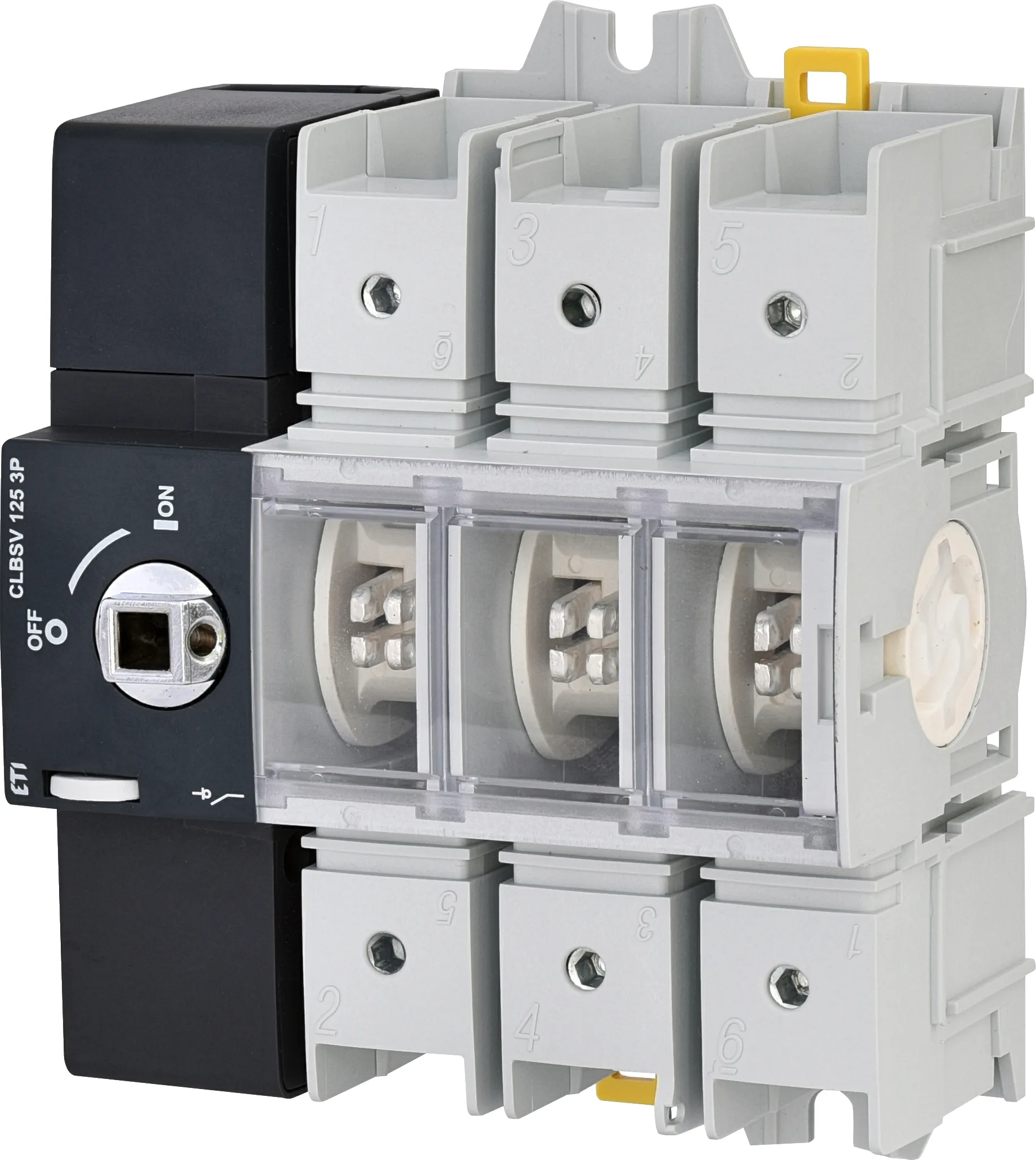

Switch disconnector CLBSV 125 3P 004661881
Specifications
- ETI Code:
- 004661881
- Description:
- CLBSV 125 3P
- Class name:
- Switch disconnector
- Function:
- 0-I
- Rated current (A):
- 125
- Type:
- DIN rail mounting
- Number of poles:
- 3
- Catalogue Group:
- Compact load break switch CLBSV
Documents
Logistic Data
Product
- Net weight of the product
- 0.82 kg
- Customs tariff
- 85365080
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895823988
- Basic packaging weight
- 0.82 kg
Transport packaging
- Transport packaging quantity
- 28
- EAN code for a transport packaging
- 3838895823995
- Transport packaging weight
- 22.96 kg
- Pallet quantity
- 420
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Number of knife blade fuse holders
- 3
- Rated current
- 125
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Max. rated operation voltage Ue AC
- 800V
- Rated permanent current Iu
- 125A
- Rated operation power at AC-23, 400 V
- 55kW
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Suitable for floor mounting
- Yes
- Type of control element
- Door coupling rotary drive
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
