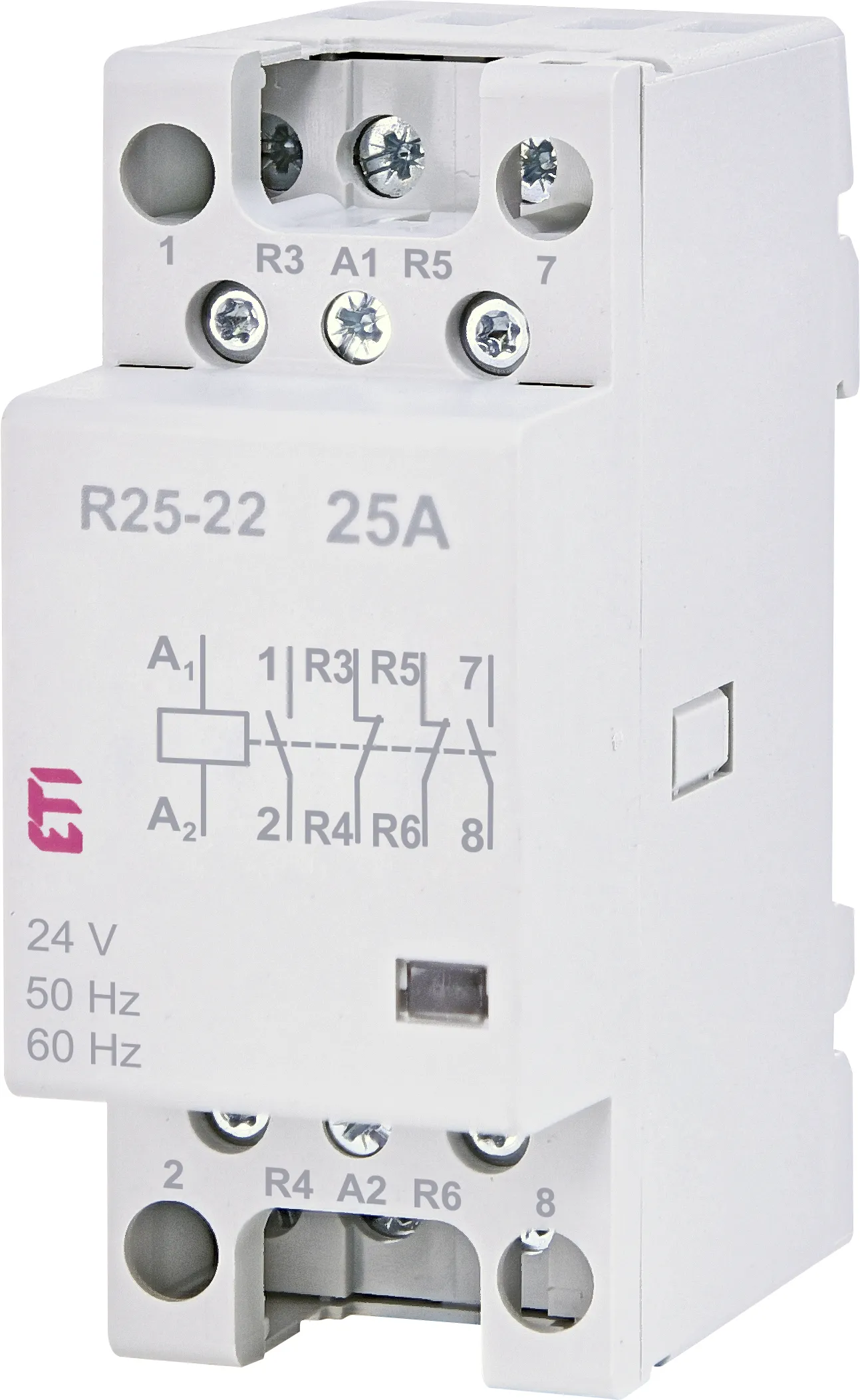

Modular contactor R 25-22 24V 002462341
Specifications
- ETI Code:
- 002462341
- Description:
- R 25-22 24V
- Class name:
- Modular contactor
- Function:
- Modular contactor
- Rated operational current Ie AC-1/AC-7 (A):
- 25
- Rated operational voltage AC (V):
- 440V
- Rated AC control circuit voltage Uc (V):
- 24V
- Type:
- AC
- Size:
- 4p, 2-modules
- Rated Frequency (Hz):
- 50/60
- Number of NO contacts:
- 2
- Number of NC contacts:
- 2
Documents
Logistic Data
Product
- EAN code for a single product
- 5904722903500
- Net weight of the product
- 0.21 kg
- Customs tariff
- 85364900
- logis_net_width
- 35 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 65 mm
Basic packaging
- Basic packaging quantity
- 6
- EAN code for a basic packaging
- 3838895141167
- Basic packaging weight
- 1.26 kg
Transport packaging
- Transport packaging quantity
- 60
- EAN code for a transport packaging
- 3838895162049
- Transport packaging weight
- 12.85 kg
- Pallet quantity
- 3480
ETIM Clasification
- Classification
- EC001653
- Class name
- Installation contactor for distribution board
- Number of normally closed contacts
- 2
- Number of normally open contacts
- 2
- Type of drive
- 50/60
- Construction size
- 4p, 2-modules
- Rated operating voltage
- 230…400V
- Rated operation current
- 25A
- Rated excitation voltage
- 24…24V
- Voltage type (operating voltage)
- AC
- Voltage type (excitation voltage)
- AC
- Number of contacts as normally open contact
- 2
- Number of contacts as normally closed contact
- 2
- Max. incandescent lamp load
- 3000W
- Max. load fluorescent lamp
- 1190VA
- Max. load fluorescent lamp (Duo circuit)
- 2552VA
- Max. load fluorescent lamp (parallel compensated)
- 1360VA
- Slider for hand switch
- No
- Number of modular spacings
- 2
- Built-in depth
- 60mm
- Additional equipment possible
- Yes
- Degree of protection (IP)
- IP20
