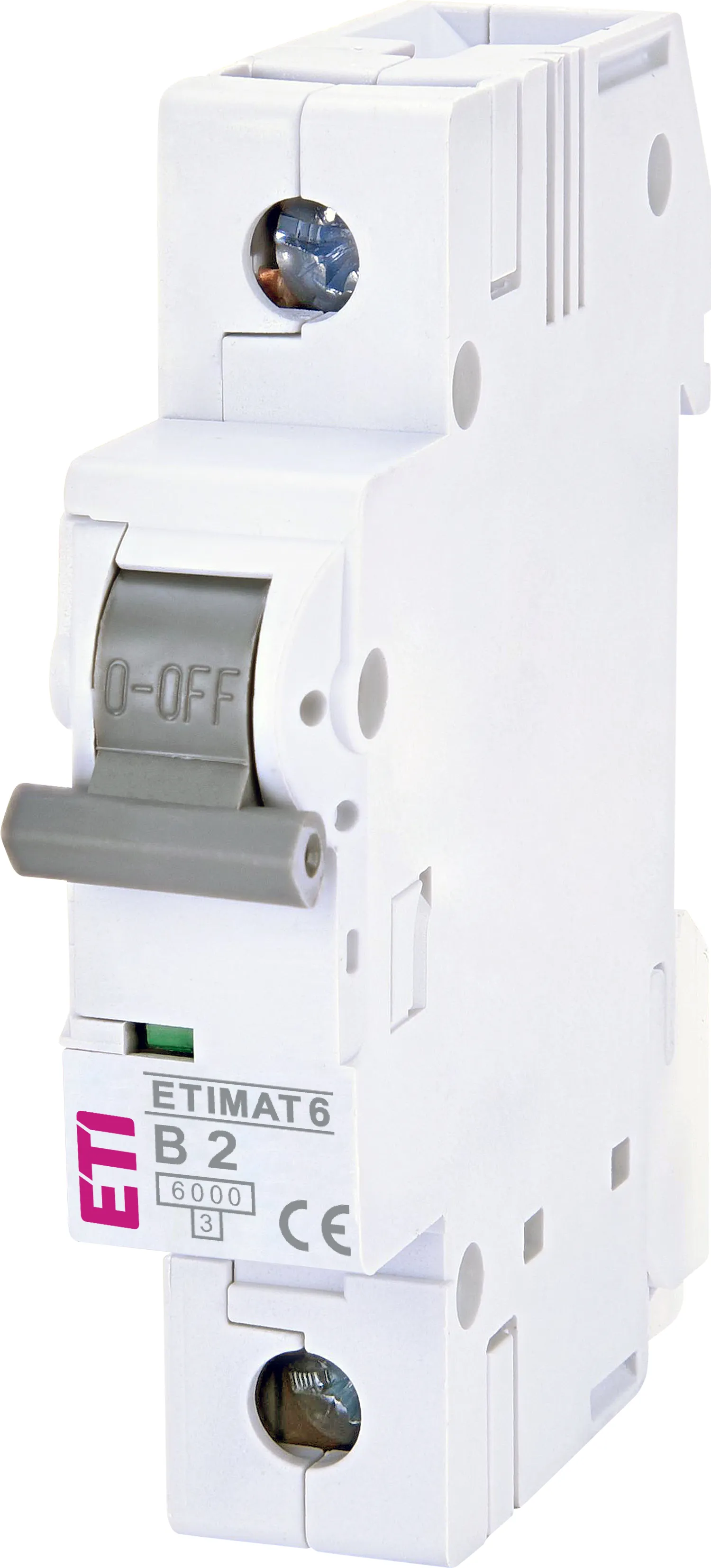

Miniature circuit breaker ETIMAT 6 1p B2 002111510
Specifications
- ETI Code:
- 002111510
- Description:
- ETIMAT 6 1p B2
- Class name:
- Miniature circuit breaker
- Rated current (A):
- 2
- Tripping characteristic:
- B
- Number of poles:
- 1
- Short circuit capacity (kA):
- 6
- Voltage type:
- AC
- Rated voltage (V):
- 230/400
- Rated Frequency (Hz):
- 50/60
- Rated impulse withstand voltage Uimp (kV):
- 6
- Rated cross section:
- 1-25
- Standards:
- IEC/EN 60898-1, IEC 60947-2
- Function:
- MCB
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895548058
- Net weight of the product
- 0.132 kg
- Customs tariff
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895548065
- Basic packaging weight
- 1.432 kg
Transport packaging
- Transport packaging quantity
- 108
- EAN code for a transport packaging
- 3838895548072
- Transport packaging weight
- 13.208 kg
- Pallet quantity
- 5616
ETIM Clasification
- Classification
- EC000042
- Class name
- Miniature circuit breaker (MCB)
- Rated short-circuit breaking capacity according to EN 60898
- 6
- Number of knife blade fuse holders
- 1
- Release characteristic
- B
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 2A
- Rated voltage
- 230/400V
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 6kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 6kA
- Voltage type
- Other
- Type of drive
- 50…60Hz
- Current limiting class
- 3
- Over voltage category
- 3
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 1
- Built-in depth
- 68mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 1-25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
