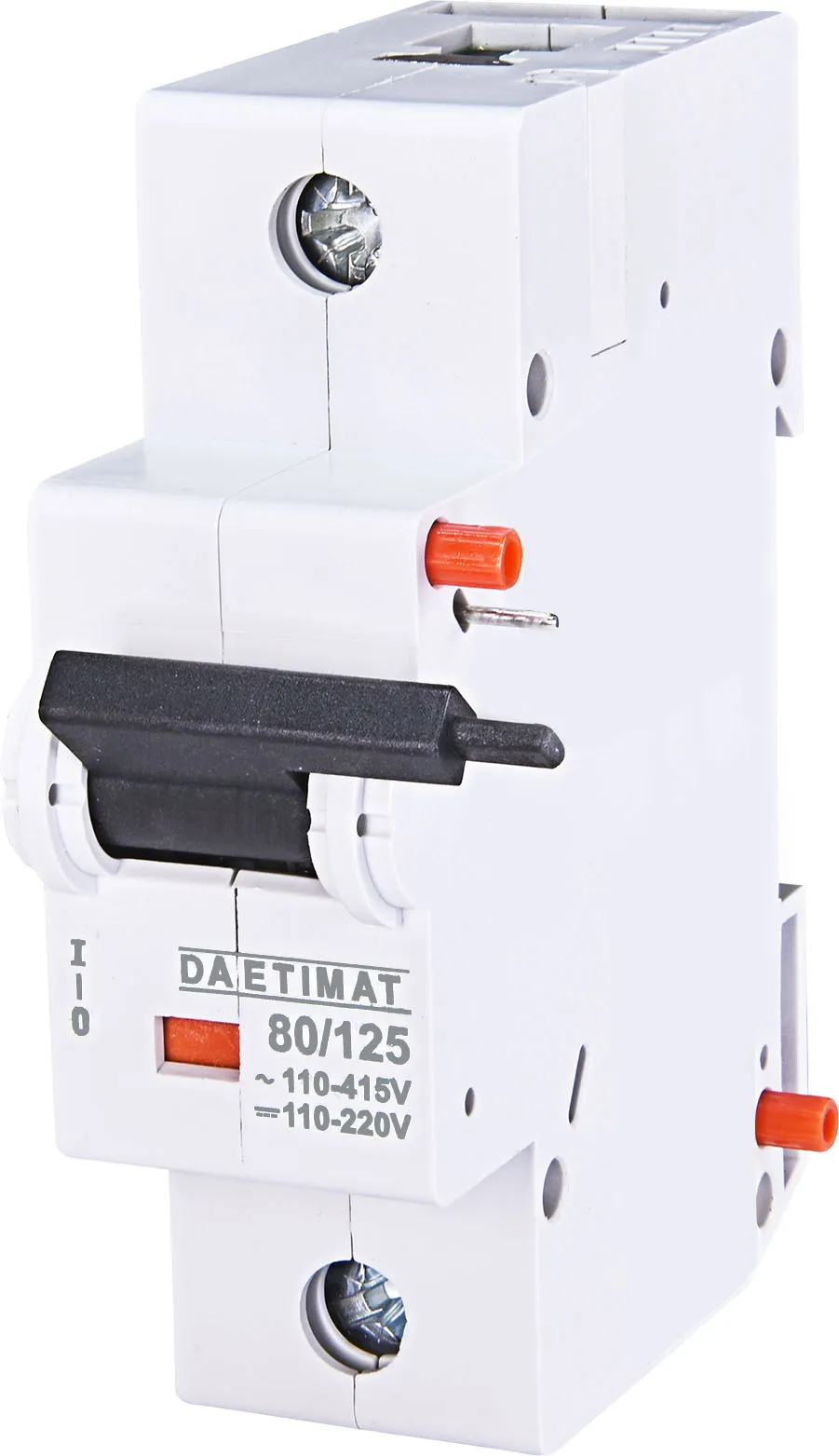

Shunt trip release DA ETIMAT 80/125 110-415V 002159321

Specifications

ETI Code:
002159321
Description:
DA ETIMAT 80/125 110-415V
Class name:
Shunt trip release
Function:
Shunt trip release
For use with:
ETIMAT 10 80-125 A

Documents

Product

Customs tariff
85389099
logis_net_width
39  mm
logis_net_height
90  mm
logis_net_depth
81  mm

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895342793
Basic packaging weight
0.103  kg

Transport packaging

Transport packaging quantity
54
EAN code for a transport packaging
3838895342809
Transport packaging weight
6.062  kg
Pallet quantity
2808
Classification
EC001023
Class name
Shunt release (for power circuit breaker)
Rated control supply voltage AC 50 Hz
110…415V
Voltage type for actuating
AC
Type of electric connection
Screw connection
ETIM Classification – Version 7.0
