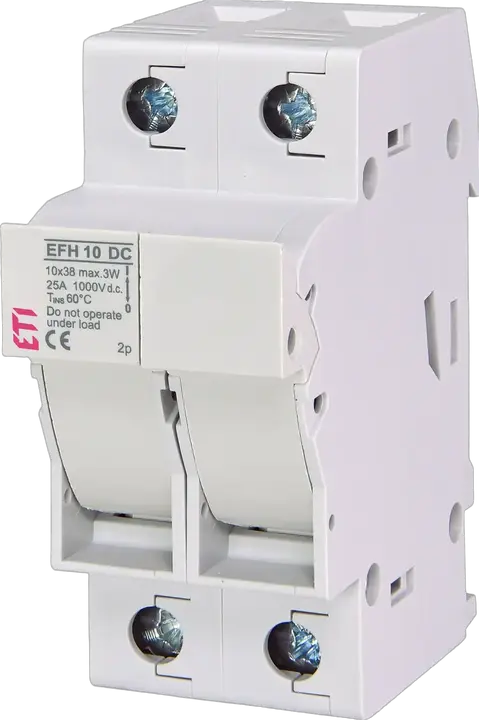

Fuse - base EFH 10 DC 2p 002540203

Specifications

ETI Code:
002540203
Description:
EFH 10 DC 2p
Class name:
Fuse - base
Rated current (A):
25
Number of poles:
2
To use with:
CH gPV fuse-links
Size:
10x38
Rated DC voltage (V):
1000
Application:
Photovoltaic Installation
UL certificate:
E356295
Product group:
LV-fuse base
Utilization category:
DC-20B
Connection:
1 - 25mm2
Mounting:
35mm DIN rail
Catalogue Group:
LV-fuse disconnector
Ambient temperature (°C):
-5 + 40°C
Mounting type:
TH 35
Standards:
IEC 60947-1, IEC 60947-3, UL 4248-1, UL 4248-19

Documents

Product

EAN code for a single product
3838895784609
Net weight of the product
123  g
Customs tariff
85389099
logis_net_width
35  mm
logis_net_height
81  mm
logis_net_depth
64  mm

Basic packaging

Basic packaging quantity
6
EAN code for a basic packaging
3838895712053
Basic packaging weight
0.794  kg

Transport packaging

Transport packaging quantity
54
EAN code for a transport packaging
3838895712060
Transport packaging weight
7.402  kg
Pallet quantity
2808
Classification
EC002705
Class name
Holder for cylindrical fuse
Rated voltage DC
1000
Construction size
10x38
Number of knife blade fuse holders
2
Application
Photovoltaic Installation
Rated current
25
Mounting method
Other
For fuse size
10x38 mm
Number of poles
2
ETIM Classification – Version 7.0
