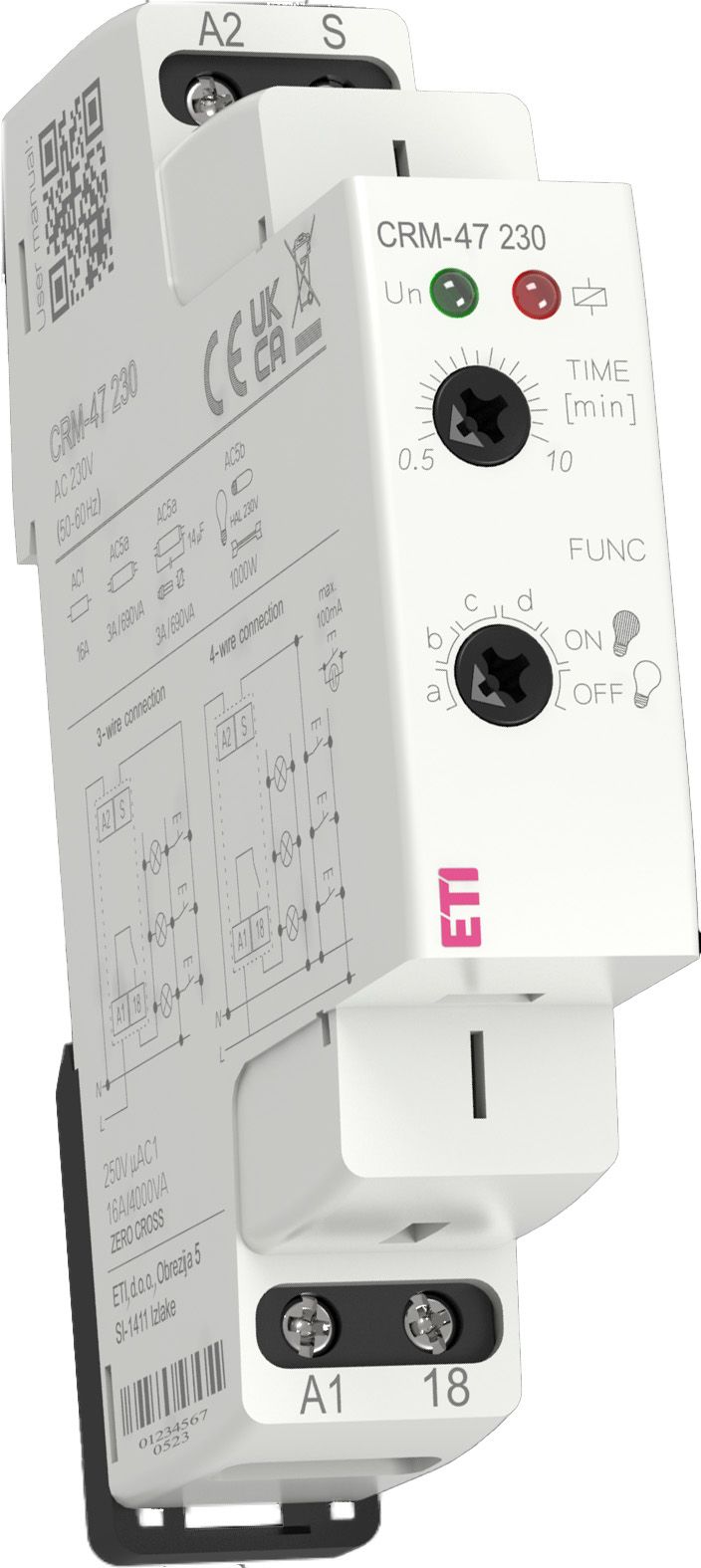

Staircase switch CRM-47 230 002470304
Specifications
- ETI Code:
- 002470304
- Description:
- CRM-47 230
- Class name:
- Staircase switch
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Time relay
- Supply voltage (V):
- 230
- Number of contacts:
- 1
- Rated current (A):
- 16
- Voltage type:
- AC
- Category:
- Twillight and staircase switches
- Type of contacts:
- CO
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.07 kg
- Customs tariff
- 85364900
Level 1 Packaging
- EAN code for a basic packaging
Level 2 Packaging
- EAN code for a transport packaging
ETIM Clasification
- Classification
- EC000297
- Class name
- Staircase lighting timer
- Rated current
- 16
- Voltage type
- AC
- Function
- Electronic with multi function
- Mounting method
- DIN rail
- Width in number of modular spacings
- 1
- Built-in depth
- 68mm
- Control voltage 1
- 230V
- Frequency control voltage 1
- 50Hz
- Rated switch current
- 16A
- Voltage type (supply voltage)
- AC
