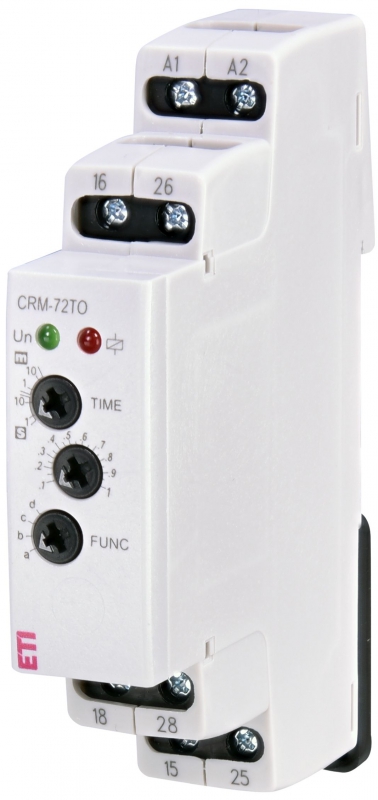

Time relay CRM-72TO UNI 002470096
Specifications
- ETI Code:
- 002470096
- Description:
- CRM-72TO UNI
- Class name:
- Time relay
- Maximum load capacity at AC1 (VA):
- 2000
- Function:
- Time relay
- Rated current (A):
- 8
- Voltage type:
- ac/dc
- Supply voltage (V):
- 12 - 240
- Type of contacts:
- CO
- Number of contacts:
- 2
- Time range:
- 0.1 s - 10 min
- Number of functions:
- 4
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.082 kg
- Customs tariff
- 85364900
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400120373
- Basic packaging weight
- 0.082 kg
Level 2 Packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838400120366
- Transport packaging weight
- 0.138 kg
- Pallet quantity
- 4600
ETIM Clasification
- Classification
- EC001669
- Class name
- Timer relay for distribution board
- Rated current
- 8
- Voltage type
- ac/dc
CRM-72TO UNI
