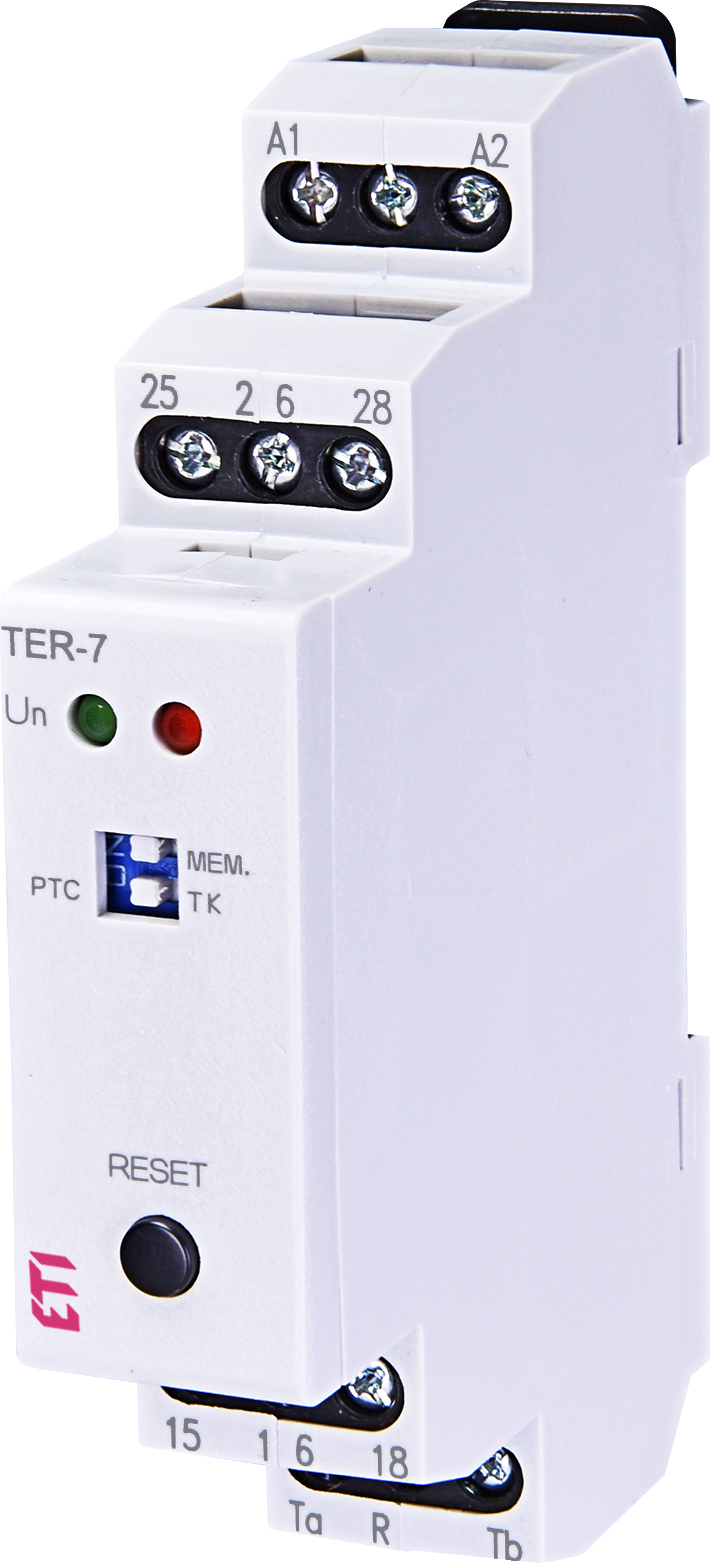

Control relay TER-7 002471804
Specifications
- ETI Code:
- 002471804
- Description:
- TER-7
- Class name:
- Control relay
- Maximum load capacity at AC1 (VA):
- 2000
- Number of CO contacts:
- 1
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 24-240
- Temperature range (C):
- -
- Sensor type:
- PTC temperature of motor winding
- Number of contacts:
- 2
- Rated current (A):
- 8
- Voltage type:
- AC/DC
Documents
Logistic Data
Product
- Net weight of the product
- 0.13 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895424208
- Basic packaging weight
- 0.13 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895424222
- Transport packaging weight
- 1.4 kg
- Pallet quantity
- 5710
ETIM Clasification
- Classification
- EC001666
- Class name
- Temperature controller for distribution board
- Voltage type
- AC/DC
- Rated current
- 8
- Model
- Digital
- Rated voltage
- 24…230V
- Rated frequency
- 50…50Hz
- Nominal switching current at 250 V, potential free
- 16A
- Width in number of modular spacings
- 1
- Assembly depth
- 65mm
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
TER-7
