Control relay TER-3A 002471801
Specifications
- ETI Code:
- 002471801
- Description:
- TER-3A
- Class name:
- Control relay
- Maximum load capacity at AC1 (VA):
- 4000
- Number of NO contacts:
- 1
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 24-240
- Temperature range (C):
- -30..+10
- Sensor type:
- external, termistor NTC
- Number of contacts:
- 1
- Rated current (A):
- 16
- Voltage type:
- AC/DC
Documents
Logistic Data
Product
- Net weight of the product
- 0.07 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895424239
- Basic packaging weight
- 0.07 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895474111
- Transport packaging weight
- 0.7 kg
- Pallet quantity
- 11250
ETIM Clasification
- Classification
- EC001666
- Class name
- Temperature controller for distribution board
- Voltage type
- AC/DC
- Rated current
- 16
- Model
- Analogue
- Rated voltage
- 24…230V
- Rated frequency
- 50…50Hz
- Adjustment range comfort
- -30…10°C
- Nominal switching current at 250 V, potential free
- 16A
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 1
- Assembly depth
- 65mm

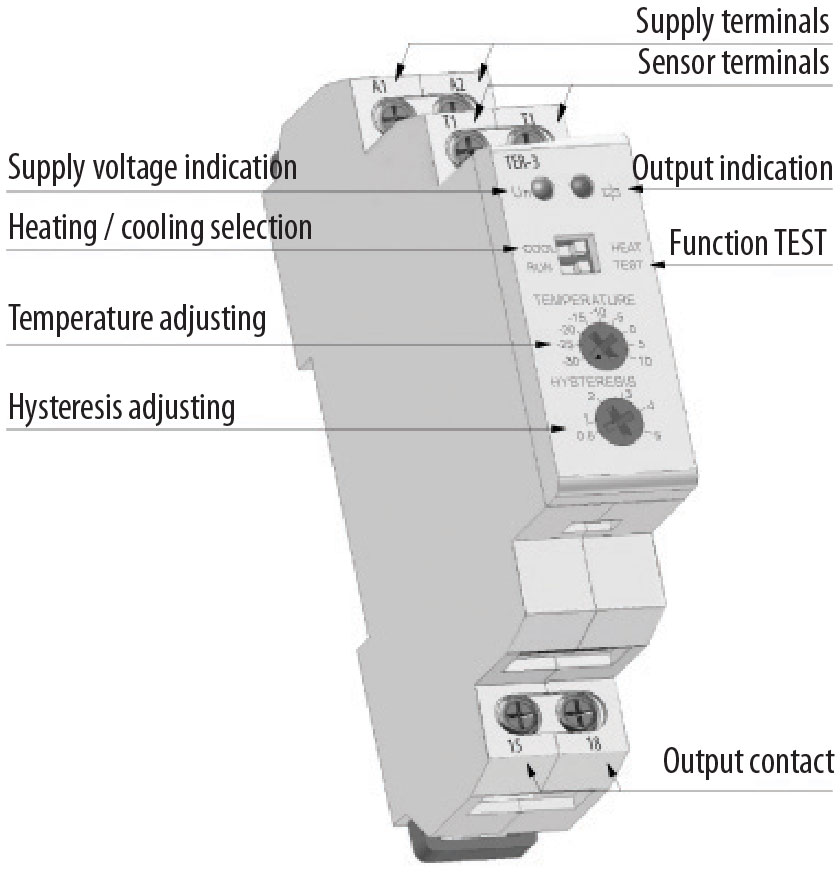

Images & Diagrams
