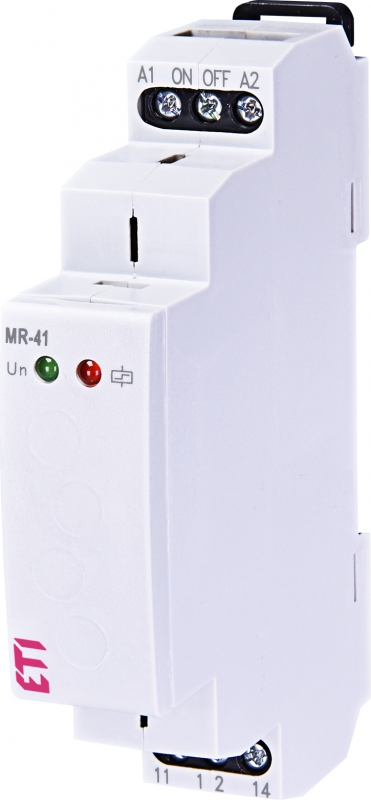

Memory relay MR-41 UNI 002470007
Specifications
- ETI Code:
- 002470007
- Description:
- MR-41 UNI
- Class name:
- Memory relay
- Storage temperature (°C):
- -30 ... +70
- Function:
- Memory relay
- Supply voltage (V):
- 12 ... 240
- Rated operation current Ie at AC1 (A):
- 16
- Voltage type:
- AC / DC
- Number of CO contacts:
- 1
- Rated Frequency (Hz):
- 50 / 60
- Size:
- 1p, 1-module
- Rated current (A):
- 16
- Number of poles:
- 1
- Rated cross section:
- 2,5
- Max. inrush current (A):
- 30/3s
- Dimensions:
- 90x17,6x64 mm
- Overvoltage Category:
- III
- IP rating:
- IP40
- Pollution degree:
- 2
- Mounting type:
- TH 35
- Number of modules:
- 1
- Working temperature (°C):
- -20 ... +55
- Switching voltage (V):
- 250 (AC) / 24 (DC)
- Power dissipation (W):
- 0,5 ... 1,2
- Electrical cycles:
- 70.000
- Standards:
- EN 60669-2-2, EN 61010-1
Documents
Logistic Data
Product
- Net weight of the product
- 0.079 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 65 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 8594030338278
- Basic packaging weight
- 0.079 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895231240
- Transport packaging weight
- 0.793 kg
- Pallet quantity
- 10090
ETIM Clasification
- Classification
- EC000188
- Class name
- Latching relay
- Voltage type
- AC / DC
- Construction size
- 1p, 1-module
- Rated operation current Ie at AC-1
- 16
- Degree of protection (IP), front side
- IP40
- Type of drive
- 50 / 60
- Connectable conductor cross section multi-wired
- 2,5 (max. cable size)
- Rated current
- 16
- Pollution degree
- 2
- Number of knife blade fuse holders
- 1
- Over voltage category
- III
- Function
- Electronic switch
- Mounting method
- DIN rail
- Width in number of modular spacings
- 1
- Built-in depth
- 65mm
- Control voltage 1
- 12…12V
- Type of control voltage 1
- AC/DC
- Control voltage 2
- 240…240V
- Type of control voltage 2
- AC/DC
- Rated switch current
- 16A
- Supply voltage
- 12…240V
- Voltage type (supply voltage)
- AC/DC
- Manual operation possible
- No
