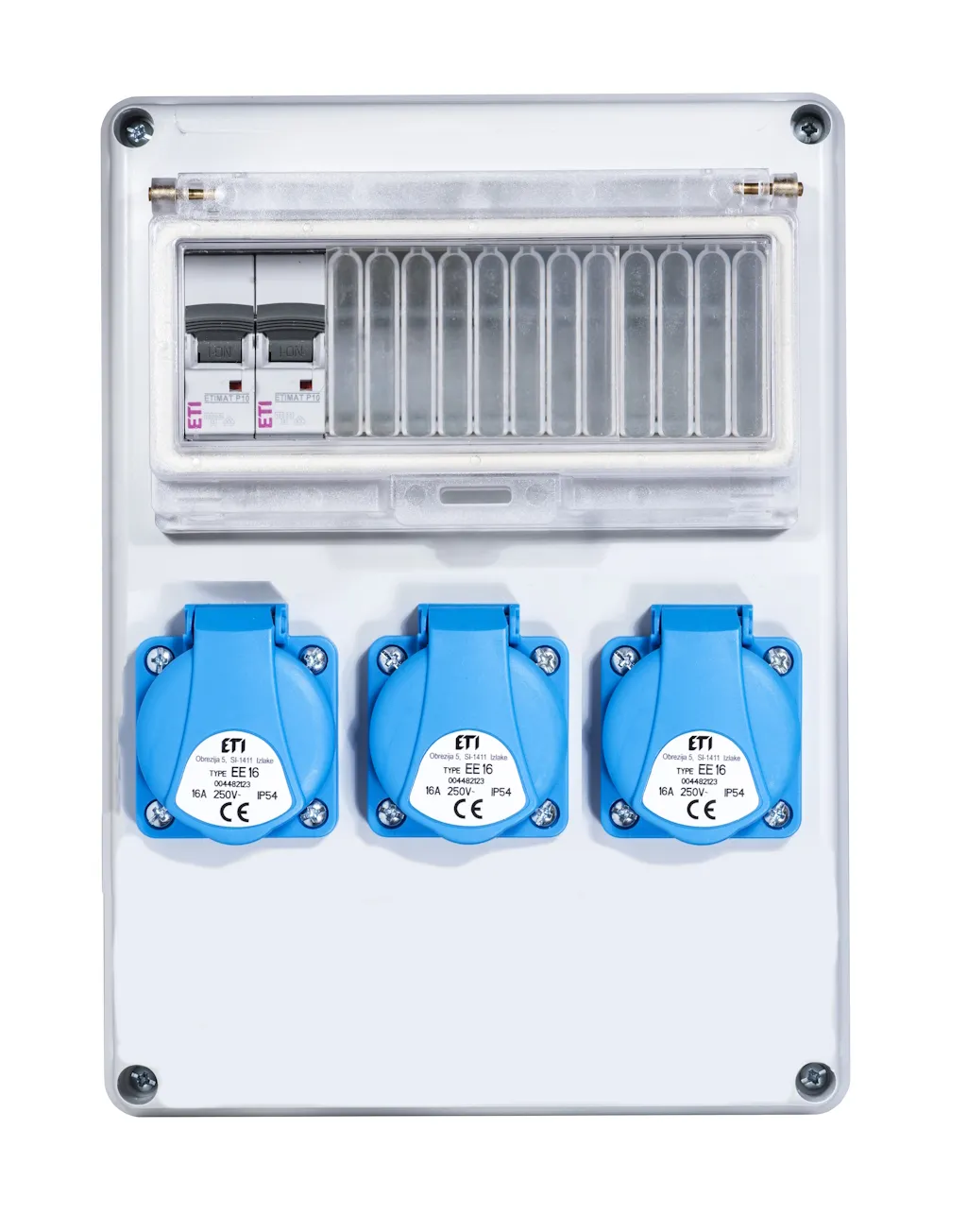

Assemblied distribution box EDS8 3 B 001105222

Specifications

ETI Code:
001105222
Description:
EDS8 3 B
Class name:
Assemblied distribution box
Rated current (A):
16
Rated voltage (V):
250
Type: socket/plug:
3xGROUND PIN
Number of modules:
8
IP rating:
IP44
MCBs_applied_EDS:
2xB16/1

Documents

Product

Net weight of the product
0.95  kg
Customs tariff
85371098

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838400122490
Transport packaging weight
0.95  kg
Pallet quantity
146
Classification
EC000379
Class name
CEE socket outlet combination
Rated voltage
250
Rated current
16
Degree of protection (IP), front side
IP44
Protection
Overcurrent switch
Earth leakage switch
None
Number of miniature circuit breakers (MCB)
2
Housing material
Plastic
Power supply/connection possibility
1 cable (branch line)
Type of mains connection
Other
Handling
Wall mounting
Degree of protection (IP)
IP44
Colour
Grey
Height
260mm
Width
190mm
Depth
84mm
ETIM Classification – Version 7.0
