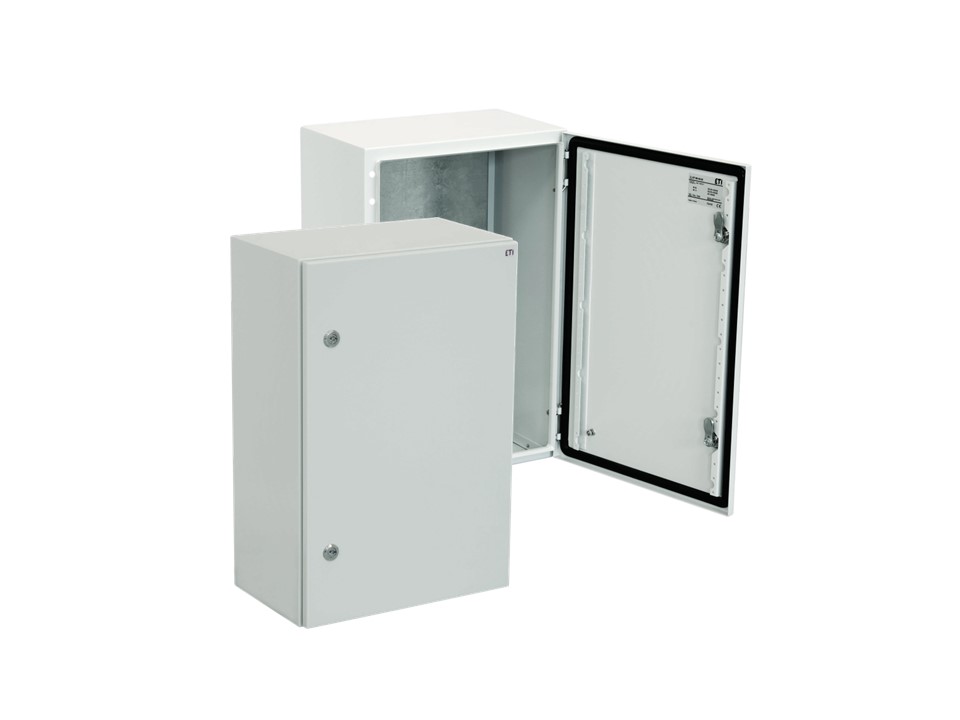

Enclosure GT 80-40-20 001102128
Specifications
- ETI Code:
- 001102128
- Description:
- GT 80-40-20
- Class name:
- Enclosure
- Protection Class:
- I
- IP rating:
- IP66
- Mechanical resistance:
- IK10
- Height (mm):
- 800
- Width (mm):
- 400
- Depth (mm):
- 200
- Application:
- Indoor use
- Color:
- RAL 7035
Documents
Logistic Data
Product
- Net weight of the product
- 19.45 kg
- Customs tariff
- 85369001
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895592099
- Basic packaging weight
- 20.05 kg
Transport packaging
- Transport packaging quantity
- 18
- EAN code for a transport packaging
- 3838895592105
- Transport packaging weight
- 360.9 kg
ETIM Clasification
- Classification
- EC000058
- Class name
- Empty cabinet
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- Yes
- Height
- 800mm
- Width
- 400mm
- Depth
- 200mm
- Built-in depth
- 200mm
- Colour
- Grey
- RAL-number
- 7035
- Number of openings for flange plates
- 1
- Housing material
- Steel
- Surface protection
- Powder coating
- With mounting plate
- Yes
- Suitable for outdoor use
- No
- Degree of protection (IP)
- IP66
- Protection class
- I
- Impact strength
- IK10
