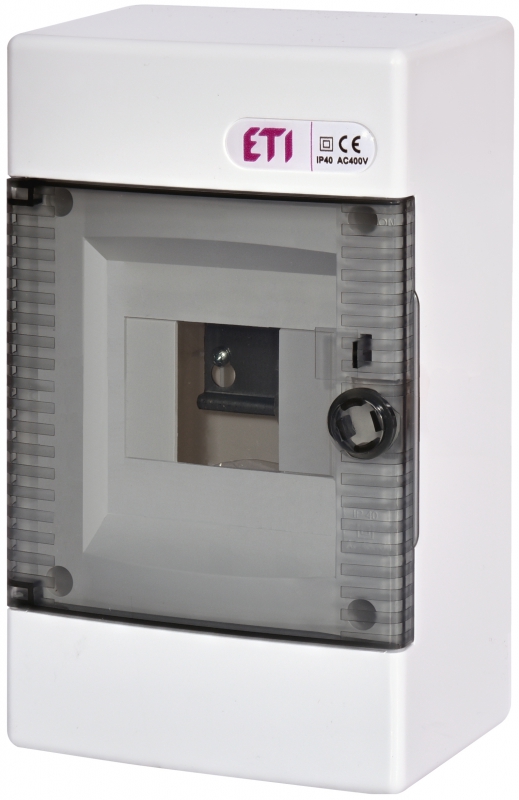

Distribution box ECT4PT 001100140
Specifications
- ETI Code:
- 001100140
- Description:
- ECT4PT
- Class name:
- Distribution box
- Protection Class:
- II
- Mounting type:
- Surface mounted
- Rated voltage (V):
- 400
- Rated current (A):
- 63
- IP rating:
- IP40
- Frame size (Number of rows):
- 1
- Number of modules (Total/per row):
- 4 / 4
- Door (material, color):
- Plastic, transparent
- Enclosure base (material, color):
- Plastic, white
- Number of PE/N terminals (connections):
- 4 / 4
- Glow wire test (°C):
- 650
Documents
Logistic Data
Product
- Net weight of the product
- 0.49 kg
- Customs tariff
- 85381000
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895876625
- Basic packaging weight
- 0.49 kg
Transport packaging
- Transport packaging quantity
- 5
- EAN code for a transport packaging
- 3838895876632
- Transport packaging weight
- 2.95 kg
- Pallet quantity
- 460
ETIM Clasification
- Classification
- EC000214
- Class name
- Small distribution board
- Rated voltage
- 400
- Degree of protection (IP), front side
- IP 40
- Rated current
- 63
- Mounting method
- Surface mounting
- Number of rows
- 1
- Width in number of modular spacings
- 4
- Type of covering
- Door
- Cover model
- Closed
- Transparent cover/door
- Yes
- Housing material
- Plastic
- Height
- 235mm
- Width
- 143mm
- Depth
- 98mm
- Built-in depth
- 68mm
- DIN-rail
- Yes
- With mounting plate
- No
- Extension possible
- No
- EMC-version
- Yes
- Colour
- White
- RAL-number
- 9003
- Degree of protection (IP)
- IP40
