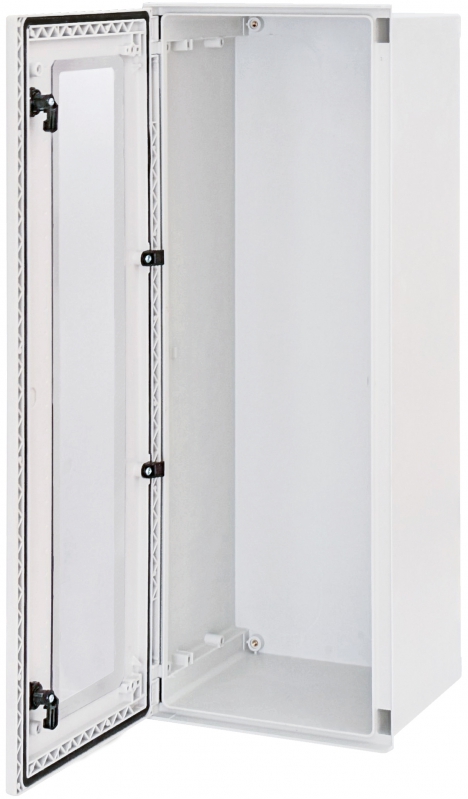

Enclosure EPC-W 80-30-23 001102614
Specifications
- ETI Code:
- 001102614
- Description:
- EPC-W 80-30-23
- Class name:
- Enclosure
- Height (mm):
- 800
- Depth (mm):
- 230
- Width (mm):
- 300
- Protection Class:
- II
- Rated current (A):
- 630
- Rated voltage (V):
- 1000VAC / 1500VDC
- IP rating:
- IP66
- With mounting plate:
- False
- Material:
- Polyester reinforced with fiber glass
- Mechanical resistance:
- IK 07
- Color:
- RAL7035
- Type of door:
- Door with window
Documents
Logistic Data
Product
- Net weight of the product
- 6.4 kg
- Customs tariff
- 85381000
- logis_net_width
- 300 mm
- logis_net_height
- 800 mm
- logis_net_depth
- 230 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895831969
- Transport packaging weight
- 6.4 kg
- Pallet quantity
- 18
ETIM Clasification
- Classification
- EC000058
- Class name
- Empty cabinet
- Rated current
- 630
- Degree of protection (IP), front side
- IP 66
- Rated voltage
- 1000 / 1500
- Mounting method
- Surface mounted (plaster)
- Type of covering
- Door
- Cover model
- Closed
- Transparent cover/door
- Yes
- With lock
- Yes
- Nominal current (In)
- 630A
- Height
- 800mm
- Width
- 300mm
- Depth
- 230mm
- Built-in depth
- 230mm
- Inner depth
- 203mm
- RAL-number
- 7035
- Extension possible
- Yes
- Housing material
- Plastic
- With mounting plate
- No
- Suitable for outdoor use
- Yes
- Suitable for lightning protection
- Yes
- Degree of protection (IP)
- IP66
- Protection class
- II
- Impact strength
- IK07
- Circuit integrity
- None
