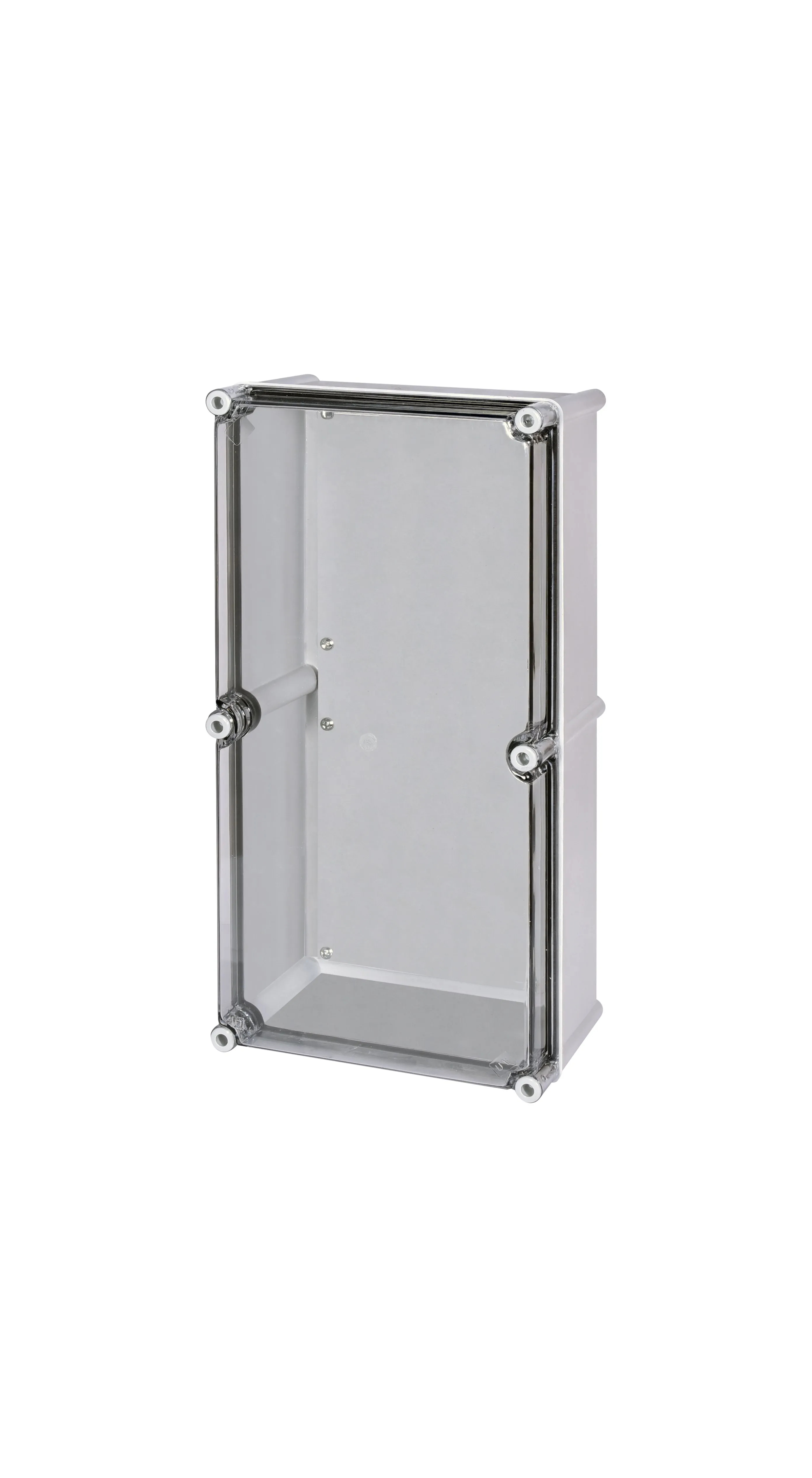

Wall mounted enclosure SB-64 001102502
Specifications
- ETI Code:
- 001102502
- Description:
- SB-64
- Class name:
- Wall mounted enclosure
- Height (mm):
- 540
- Depth (mm):
- 170
- Width (mm):
- 360
- Protection Class:
- II
- Rated current (A):
- 630
- Rated voltage (V):
- 1000 / 1500
- IP rating:
- IP66
- With mounting plate:
- True
- Material:
- Polyester reinforced with fiber glass
- Mechanical resistance:
- IK 10
- Color:
- RAL7035
- Type of door:
- Transparent lid
Documents
Logistic Data
Product
- Net weight of the product
- 5.2 kg
- Customs tariff
- 85381000
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895746973
- Transport packaging weight
- 5.2 kg
- Pallet quantity
- 66
ETIM Clasification
- Classification
- EC000058
- Class name
- Empty cabinet
- Rated voltage
- 1000 / 1500
- Rated current
- 630
- Degree of protection (IP), front side
- IP 66
- Mounting method
- Surface mounted (plaster)
- Type of covering
- Cover
- Cover model
- Closed
- Type of door
- Other
- Transparent cover/door
- Yes
- With lock
- No
- Nominal current (In)
- 630A
- Height
- 540mm
- Width
- 360mm
- Depth
- 170mm
- Built-in depth
- 170mm
- Inner depth
- 154mm
- Colour
- Other
- RAL-number
- 7035
- Housing material
- Plastic
- With mounting plate
- Yes
- Suitable for outdoor use
- Yes
- Suitable for lightning protection
- Yes
- Degree of protection (IP)
- IP66
- Protection class
- II
- Impact strength
- IK10
- Circuit integrity
- None
