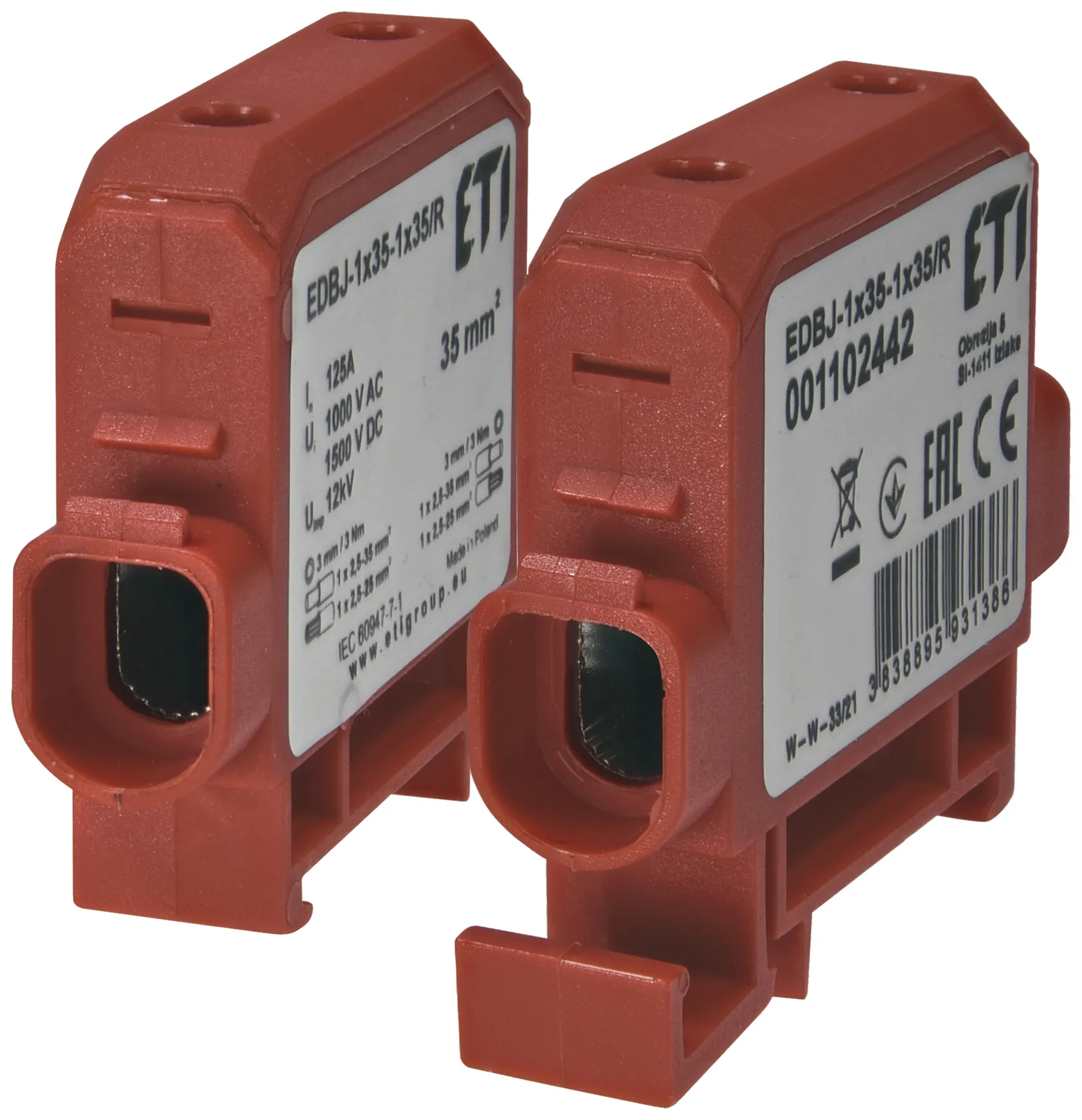

Conductor connection clamps EDBJ-1x35-1x35/R 001102442
Specifications
- ETI Code:
- 001102442
- Description:
- EDBJ-1x35-1x35/R
- Class name:
- Conductor connection clamps
- Working temperature (°C):
- -30°C - +80°C
- Mounting type:
- TH 35
- Rated current (A):
- 125
- Rated voltage (V):
- 415
- Rated insulation voltage (V):
- 1000
- Short circuit capacity (kA):
- 4,2
- Number of terminals:
- 2
- Height (mm):
- 58,7
- Width (mm):
- 13,2
- Depth (mm):
- 48,5
- Rated cross section:
- 1x2,5-35mm2 + 1x 2,5-35mm2
- Body material:
- PA6.6
- Clamp material:
- Al 6060+ Sn
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895931386
- Net weight of the product
- 0.027 kg
- Customs tariff
- 85369010
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895931287
- Basic packaging weight
- 0.32 kg
Transport packaging
- Transport packaging quantity
- 300
- EAN code for a transport packaging
- 3838895931294
- Transport packaging weight
- 8.1 kg
- Pallet quantity
- 15000
ETIM Clasification
- Classification
- EC001284
- Class name
- Single- and multi-pole terminal strip
- Width
- 13,2
- Rated short-circuit breaking capacity according to EN 60898
- 4,2
- Rated current
- 125
- Built-in depth
- 48,5
- Height
- 58,7
- Rated voltage
- 415V
- Mounting method
- Other
- Operating temperature
- -30°C - +80°C°C
