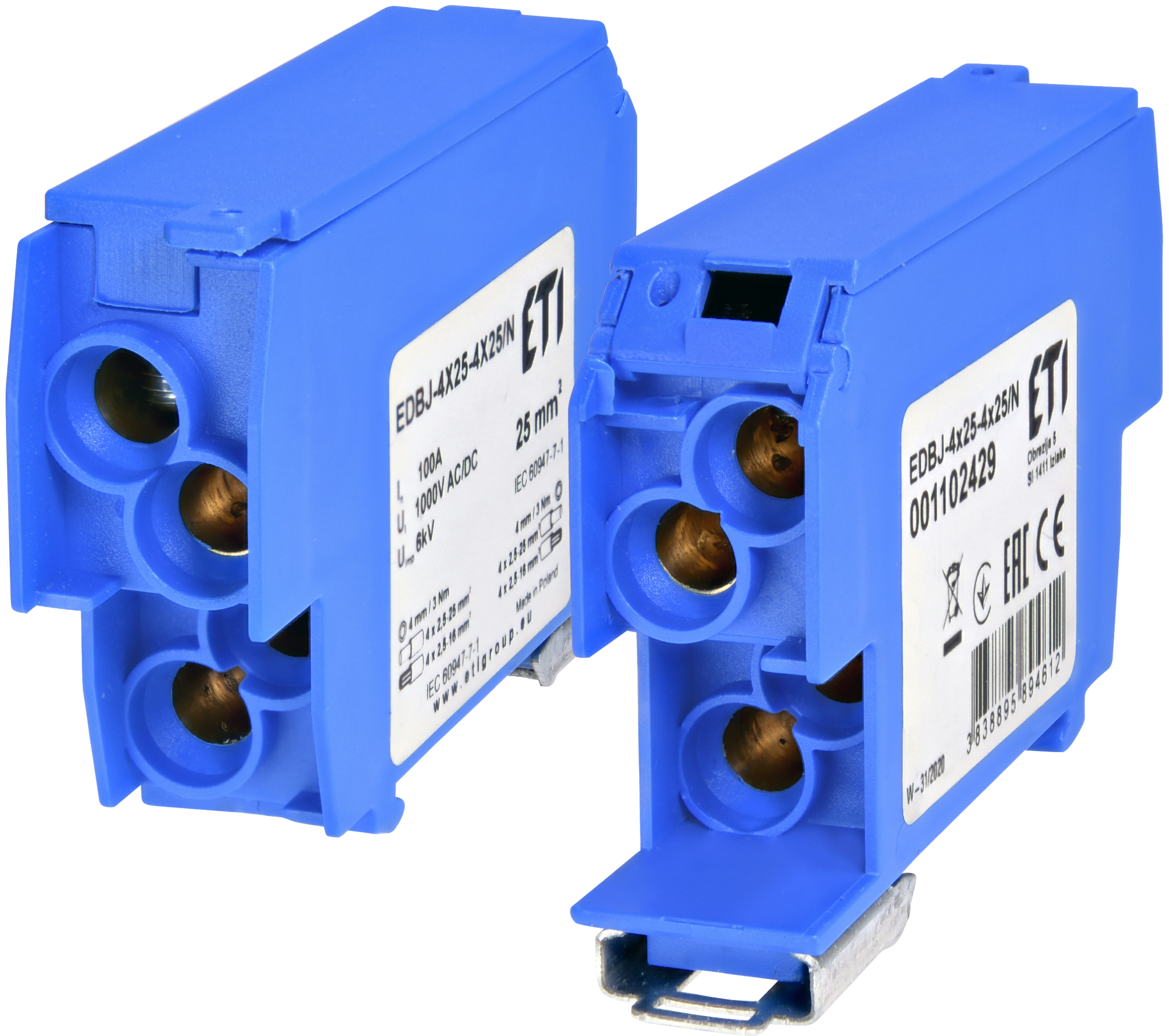

Distribution block EDBJ-4x25-4x25/N 001102429
Specifications
- ETI Code:
- 001102429
- Description:
- EDBJ-4x25-4x25/N
- Class name:
- Distribution block
- Working temperature (°C):
- -30°C - +80°C
- Function:
- Razdelilni blok
- Mounting type:
- TH 35
- Rated current (A):
- 100
- Rated voltage (V):
- 415
- Rated insulation voltage (V):
- 1000
- Short circuit capacity (kA):
- 10
- Number of terminals:
- 8
- Height (mm):
- 80,3
- Width (mm):
- 17,8
- Depth (mm):
- 50
- Rated cross section:
- 4x2,5-25mm2-4x2,5-25mm2
- Body material:
- PC/ABS
- Clamp material:
- MO-58
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895894612
- Net weight of the product
- 0.125 kg
- Customs tariff
- 85369010
Basic packaging
- Basic packaging quantity
- 12
- EAN code for a basic packaging
- 3838895894599
- Basic packaging weight
- 1.7 kg
Transport packaging
- Transport packaging quantity
- 240
- EAN code for a transport packaging
- 3838895894605
- Transport packaging weight
- 21 kg
- Pallet quantity
- 7920
ETIM Clasification
- Classification
- EC001284
- Class name
- Single- and multi-pole terminal strip
- Height
- 80,3
- Rated short-circuit breaking capacity according to EN 60898
- 10
- Width
- 17,8
- Rated current
- 100
- Built-in depth
- 50
- Connectable conductor cross section solid-core
- 2.5…25mm²
- Rated current In
- 100A
- Rated voltage
- 415V
- Type of electrical connection 1
- Screw connection
- Number of poles
- 1
- Number of clamp positions per pole
- 8
- Mounting method
- Other
- Material insulation body
- Thermoplastic
- Operating temperature
- -30°C - +80°C°C
- Inflammability class of insulation material according to with UL94
- V0
- Width/grid dimension
- 17,8mm
- Height at lowest possible mounting height
- 50mm
- Length
- 80mm
- Closing plate required
- No
- Colour
- Blue
