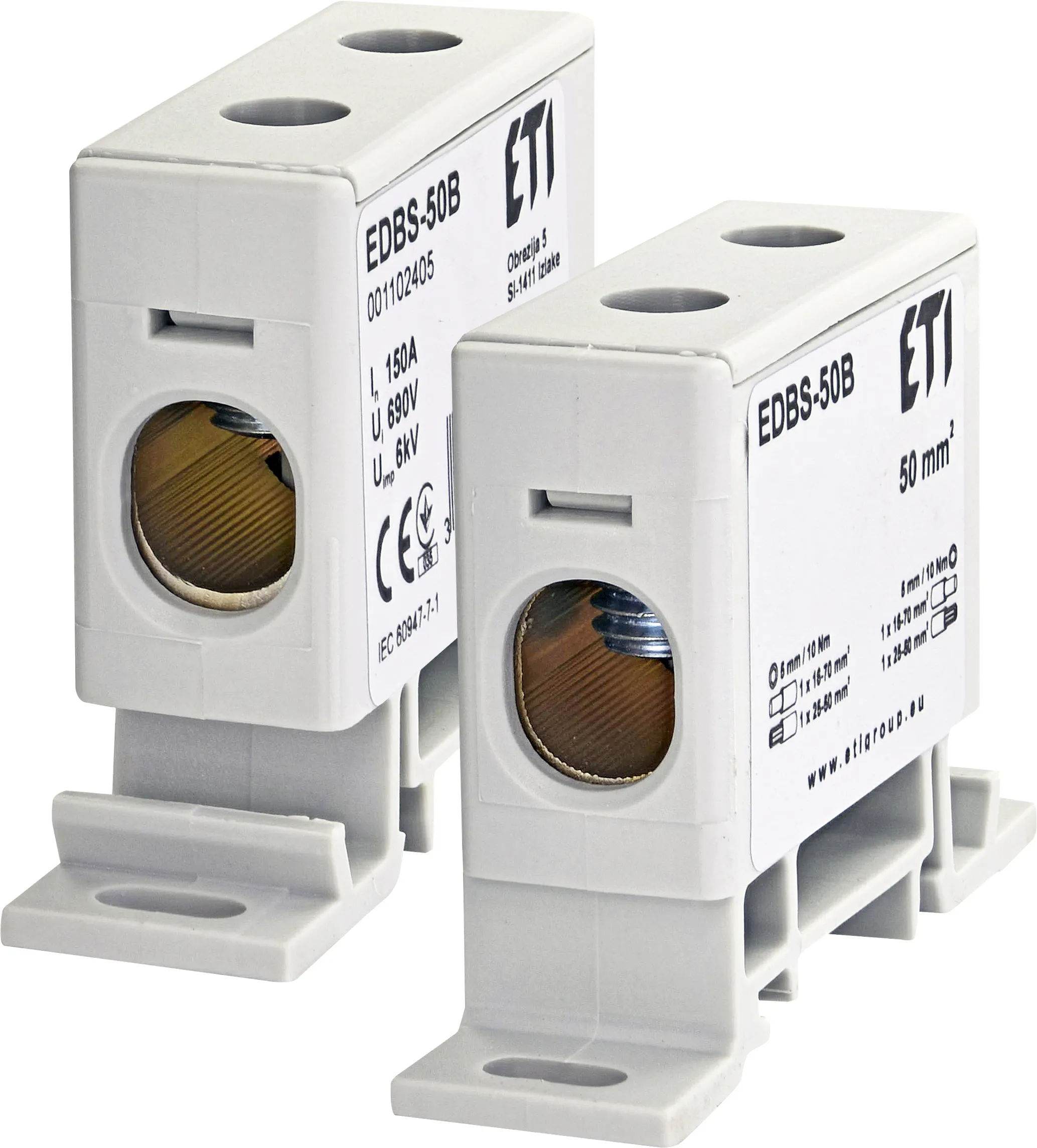

Conductor connection clamps EDBS-50B 001102405
Specifications
- ETI Code:
- 001102405
- Description:
- EDBS-50B
- Class name:
- Conductor connection clamps
- Mounting type:
- TH 35
- Rated current (A):
- 150
- Rated voltage (V):
- 690
- Rated insulation voltage (V):
- 690
- Short circuit capacity (kA):
- 12
- Number of terminals:
- 2
- Height (mm):
- 40
- Width (mm):
- 17,8
- Depth (mm):
- 70
- Rated cross section:
- 2 x 16-70 mm2
- Body material:
- PA6 GF25
- Clamp material:
- Al 6060 + Sn
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895742548
- Net weight of the product
- 0.04 kg
- Customs tariff
- 85369010
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895733980
- Basic packaging weight
- 0.44 kg
Transport packaging
- Transport packaging quantity
- 200
- EAN code for a transport packaging
- 3838895733997
- Transport packaging weight
- 8.8 kg
- Pallet quantity
- 7200
ETIM Clasification
- Classification
- EC001284
- Class name
- Single- and multi-pole terminal strip
- Height
- 40
- Width
- 17,8
- Rated short-circuit breaking capacity according to EN 60898
- 12
- Rated current
- 150
- Built-in depth
- 70
- Connectable conductor cross section solid-core
- 16…70mm²
- Rated current In
- 150A
- Rated voltage
- 690V
- Type of electrical connection 1
- Screw connection
- Connection position
- Atop
- Number of poles
- 1
- Number of clamp positions per pole
- 2
- Mounting method
- Other
- Material insulation body
- Thermoplastic
- Operating temperature
- -25…80°C
- Width/grid dimension
- 17,8mm
- Height at lowest possible mounting height
- 45mm
- Length
- 70mm
- Closing plate required
- No
- Colour
- Grey
