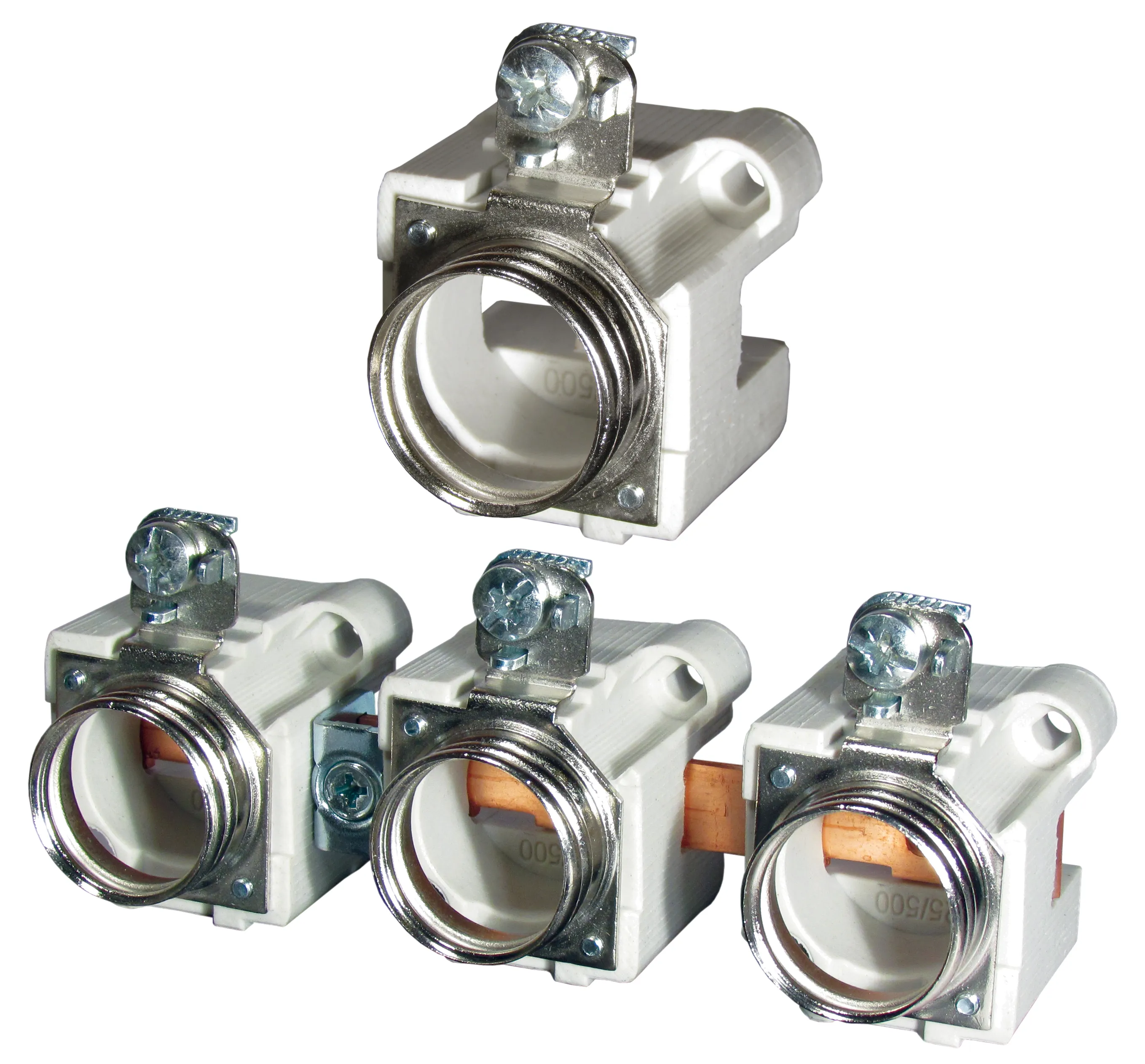

Fuse - base SET EZR 63/GEG 63 4p 002323112
Specifications
- ETI Code:
- 002323112
- Description:
- SET EZR 63/GEG 63 4p
- Class name:
- Fuse - base
- Mounting type:
- Busbar mounting
- Type:
- EZR/4
- Size:
- DII
- Dimensions:
- E27
- Number of poles:
- 4
- Rated current (A):
- 63
- Rated AC voltage (V):
- 500
- Connection:
- 2XM5
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400074300
- Net weight of the product
- 0.608 kg
- Customs tariff
- 85389099
- logis_net_width
- 226 mm
- logis_net_height
- 65 mm
- logis_net_depth
- 48 mm
Transport packaging
- Transport packaging quantity
- 18
- EAN code for a transport packaging
- 3838895565802
- Transport packaging weight
- 10.95 kg
- Pallet quantity
- 540
ETIM Clasification
- Classification
- EC000094
- Class name
- D-system fuse base
- Number of poles
- 4
- Construction size
- DII
- Material
- Porcelain
- Model
- Fitted screw
- Rated voltage
- 500V
- Rated current
- 63A
