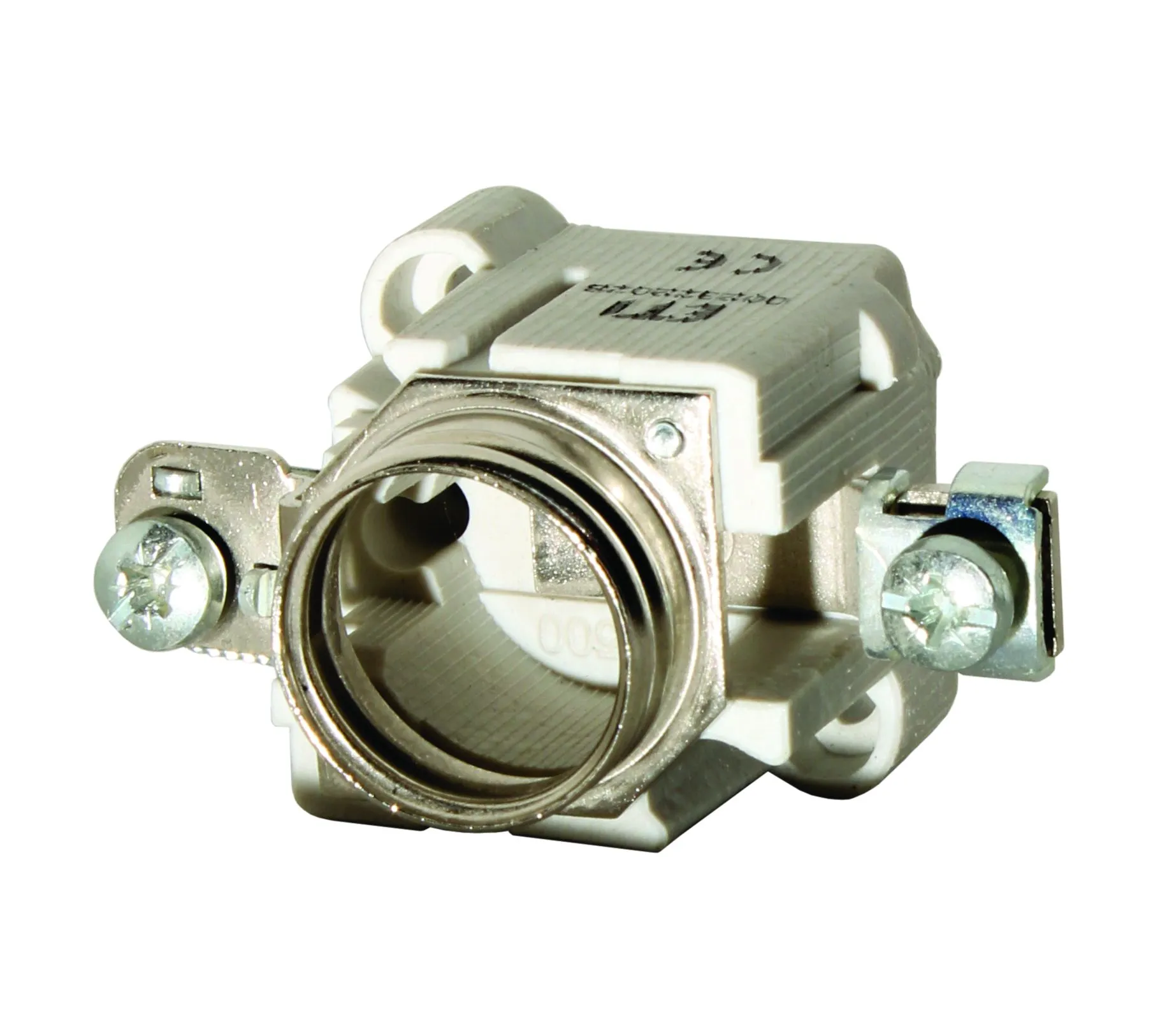

Fuse - base EZV 63 GS 002323032
Specifications
- ETI Code:
- 002323032
- Description:
- EZV 63 GS
- Class name:
- Fuse - base
- Mounting type:
- Base plate mounting
- Type:
- EZV GS
- Size:
- DIII
- Dimensions:
- E33
- Number of poles:
- 1
- Rated current (A):
- 63
- Rated AC voltage (V):
- 500
- Connection:
- M5
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400029652
- Net weight of the product
- 0.171 kg
- Customs tariff
- 85389099
- logis_net_width
- 46 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 48 mm
Basic packaging
- Basic packaging quantity
- 15
- EAN code for a basic packaging
- 3838895559429
- Basic packaging weight
- 2.57 kg
Transport packaging
- Transport packaging quantity
- 90
- EAN code for a transport packaging
- 3838895717430
- Transport packaging weight
- 15.8 kg
- Pallet quantity
- 2160
ETIM Clasification
- Classification
- EC000094
- Class name
- D-system fuse base
- Number of poles
- 1
- Construction size
- DIII
- Material
- Porcelain
- Model
- Fitted screw
- Mounting method
- Screw mounting
- Rated voltage
- 500V
- Rated current
- 63A

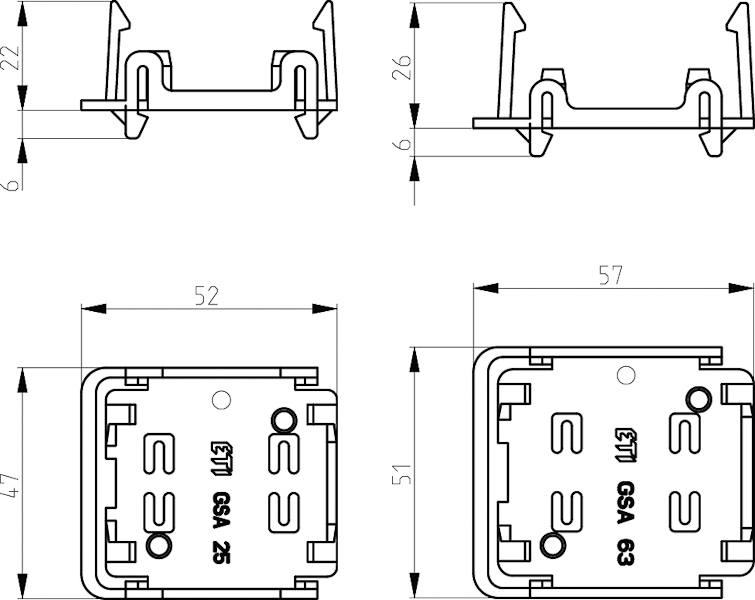

Images & Diagrams
