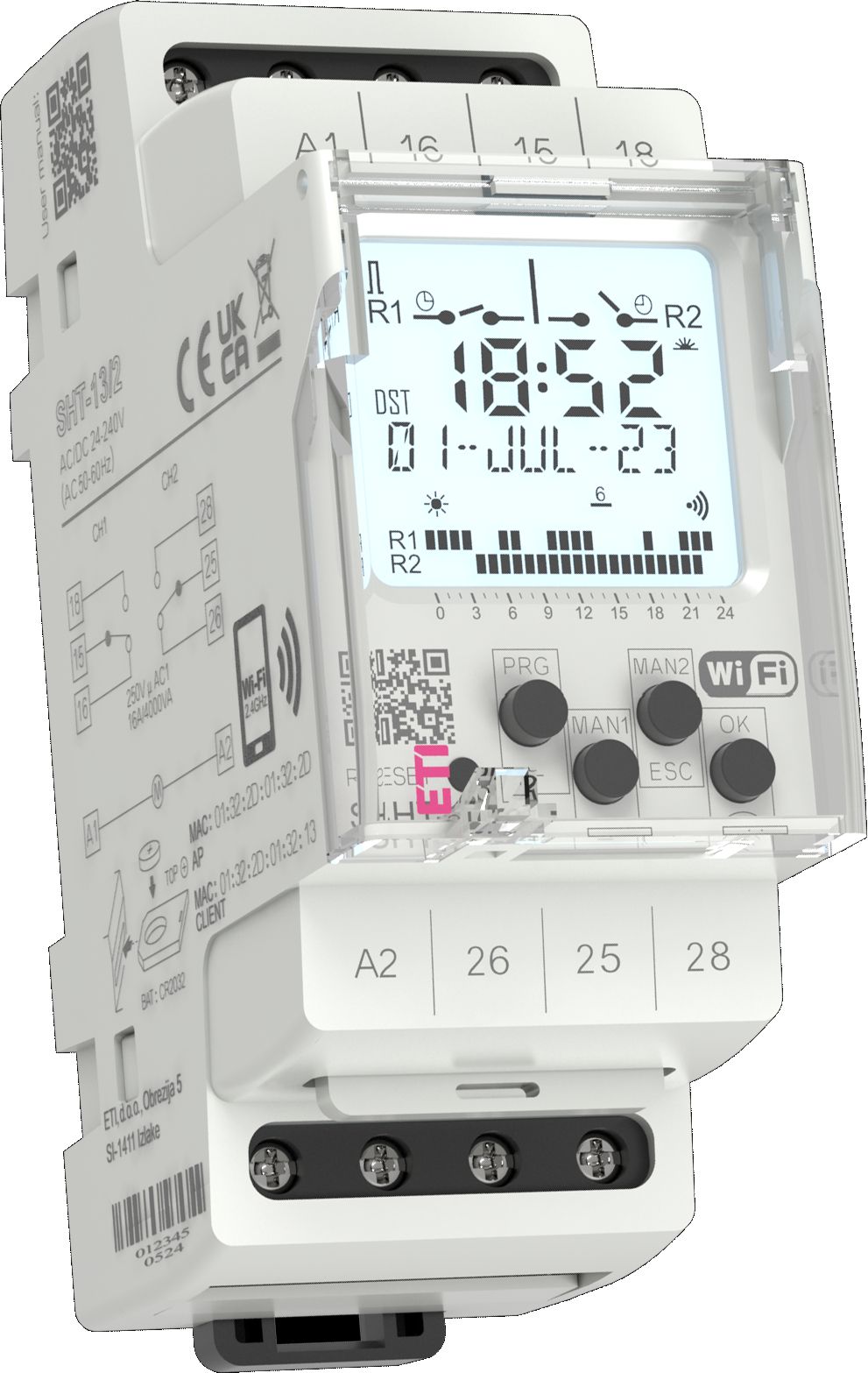

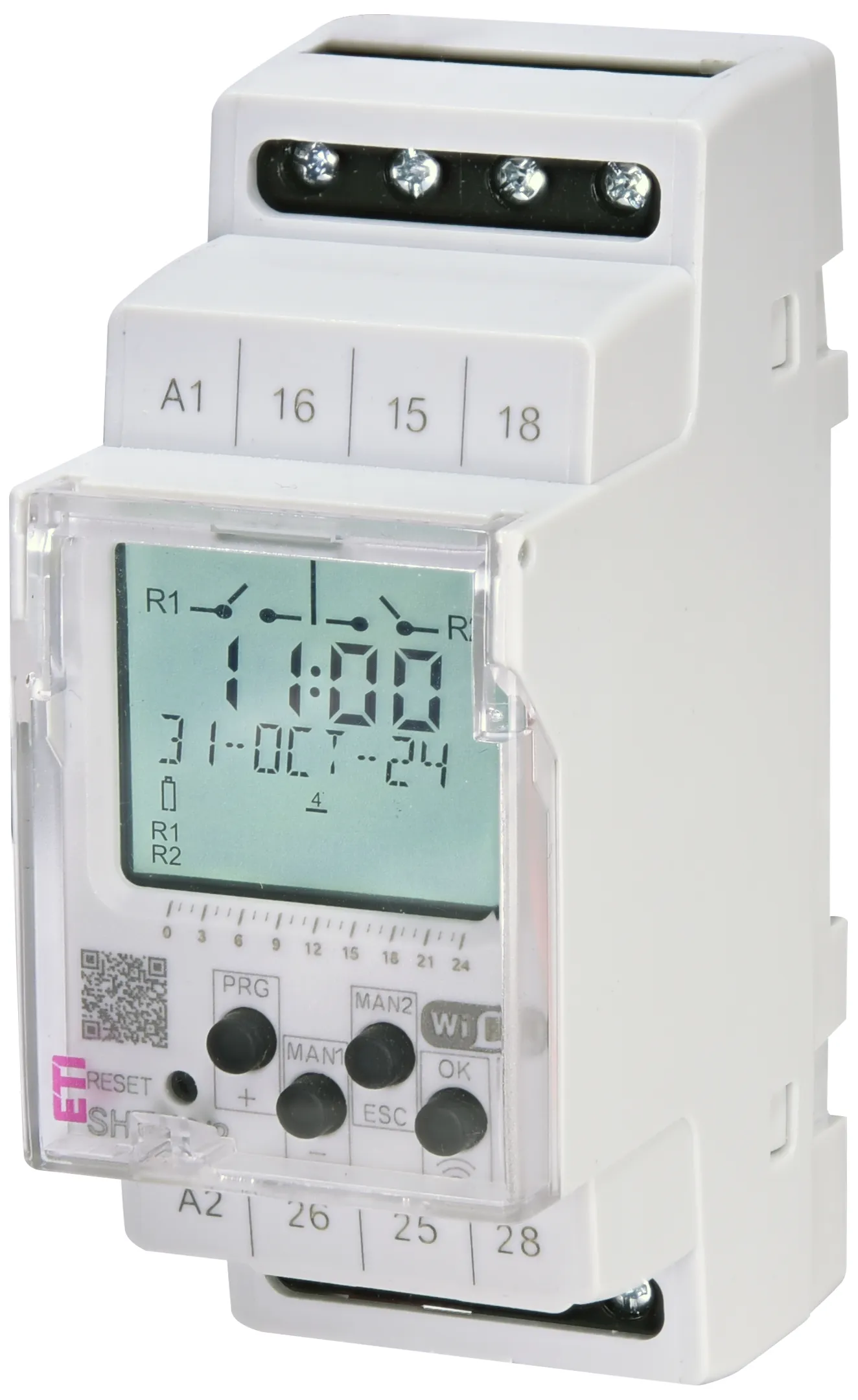

Time relay - digital SHT-13/2 UNI 002470305
Specifications
- ETI Code:
- 002470305
- Description:
- SHT-13/2 UNI
- Class name:
- Time relay - digital
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Time relay
- Rated current (A):
- 16
- Voltage type:
- AC/DC
- Supply voltage (V):
- 24...230
- Type of contacts:
- CO
- Number of contacts:
- 2
- Time range:
- SUNRISE, SUNSET, FIXED TIME: ON/OFF, REDUC.
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.287 kg
- Customs tariff
- 85364900
Level 1 Packaging
- EAN code for a basic packaging
Level 2 Packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838400117106
- Transport packaging weight
- 0.287 kg
- Pallet quantity
- 2000
ETIM Clasification
- Classification
- EC002305
- Class name
- Digital time switch for distribution board
- Voltage type
- AC/DC
- Rated current
- 16
- Mounting method
- DIN rail
- Number of channels
- 2
- Supply voltage
- 24...230V
- Voltage type (supply voltage)
- AC/DC
- Frequency supply voltage
- 50Hz
- Autonomy in years
- 0,3
- External programming
- Yes
- 60 min program
- Yes
- 24 h program
- Yes
- Weekly program
- Yes
- Annual program
- Yes
- Holiday program
- Yes
- Impulse program
- Yes
- Cycle program
- Yes
- Astro program
- Yes
- Random program
- Yes
- Hour meter
- Yes
- Contact type
- Change-over contact
- Number of memory locations
- 200
- Automatic switching summer-/winter time
- Yes
- Nominal switching current at 250 V AC
- 16A
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 2
- Width
- 35mm
- Height
- 90mm
- Depth
- 64mm
