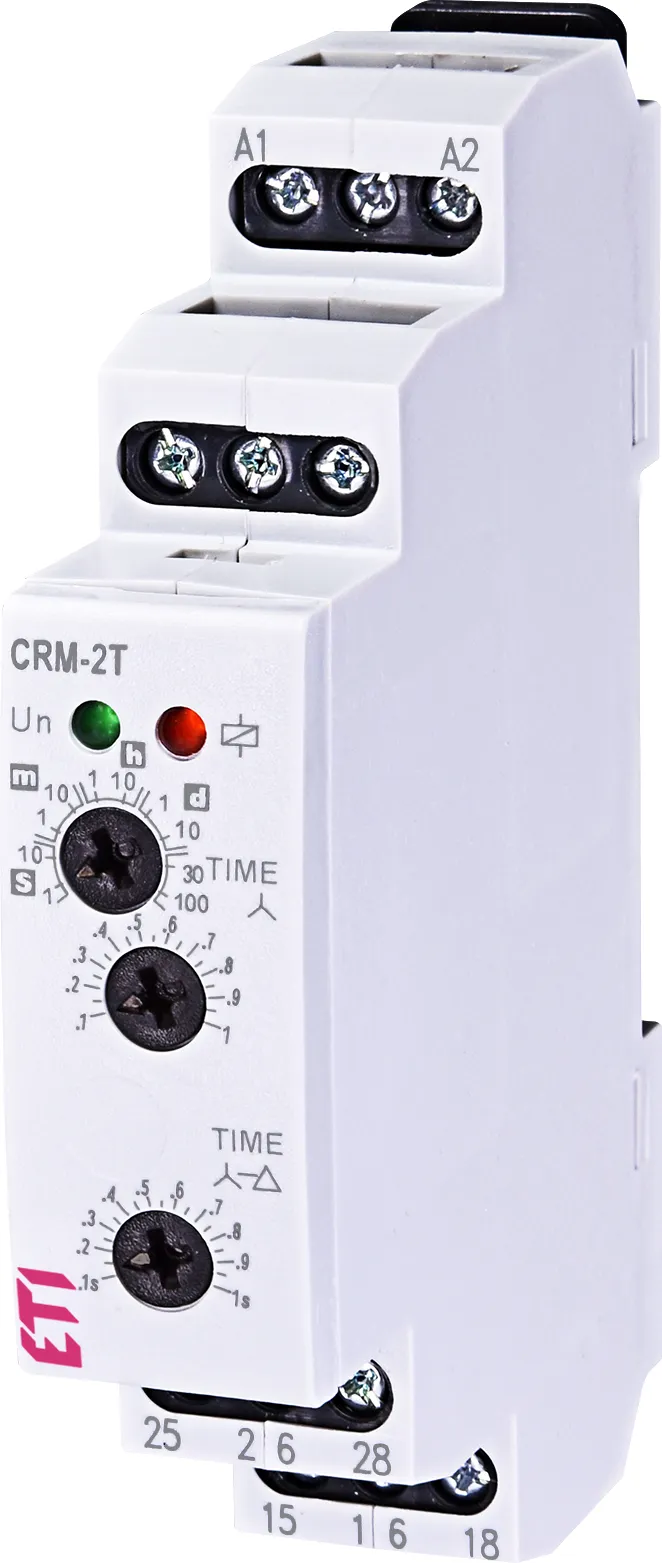

Time relay CRM-2T UNI 002470013
Specifications
- ETI Code:
- 002470013
- Description:
- CRM-2T UNI
- Class name:
- Time relay
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Time relay
- Rated current (A):
- 16
- Voltage type:
- AC/DC
- Number of CO contacts:
- 1
- Supply voltage (V):
- 12 - 240
- Number of contacts:
- 2
- Time range:
- 0.1 s-100 days
- Number of functions:
- 1
Documents
Logistic Data
Product
- Net weight of the product
- 0.098 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895241553
- Basic packaging weight
- 0.093 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895241560
- Transport packaging weight
- 0.98 kg
- Pallet quantity
- 8160
ETIM Clasification
- Classification
- EC001669
- Class name
- Timer relay for distribution board
- Rated current
- 16
- Voltage type
- AC/DC
- Type of excitation
- Digital with single function
- Function
- Operating and release delay
- 1st interval unit
- Seconds/hours
- 1st interval
- 1…2400
- 2nd interval unit
- Seconds/minutes
- 2nd interval
- 0.1…0.02
- Mounting method
- DIN rail
- Width in number of modular spacings
- 1
- Built-in height
- 65mm
- Number of changeover switches
- 2
- Supply voltage
- 12…240V
- Voltage type (supply voltage)
- AC/DC
