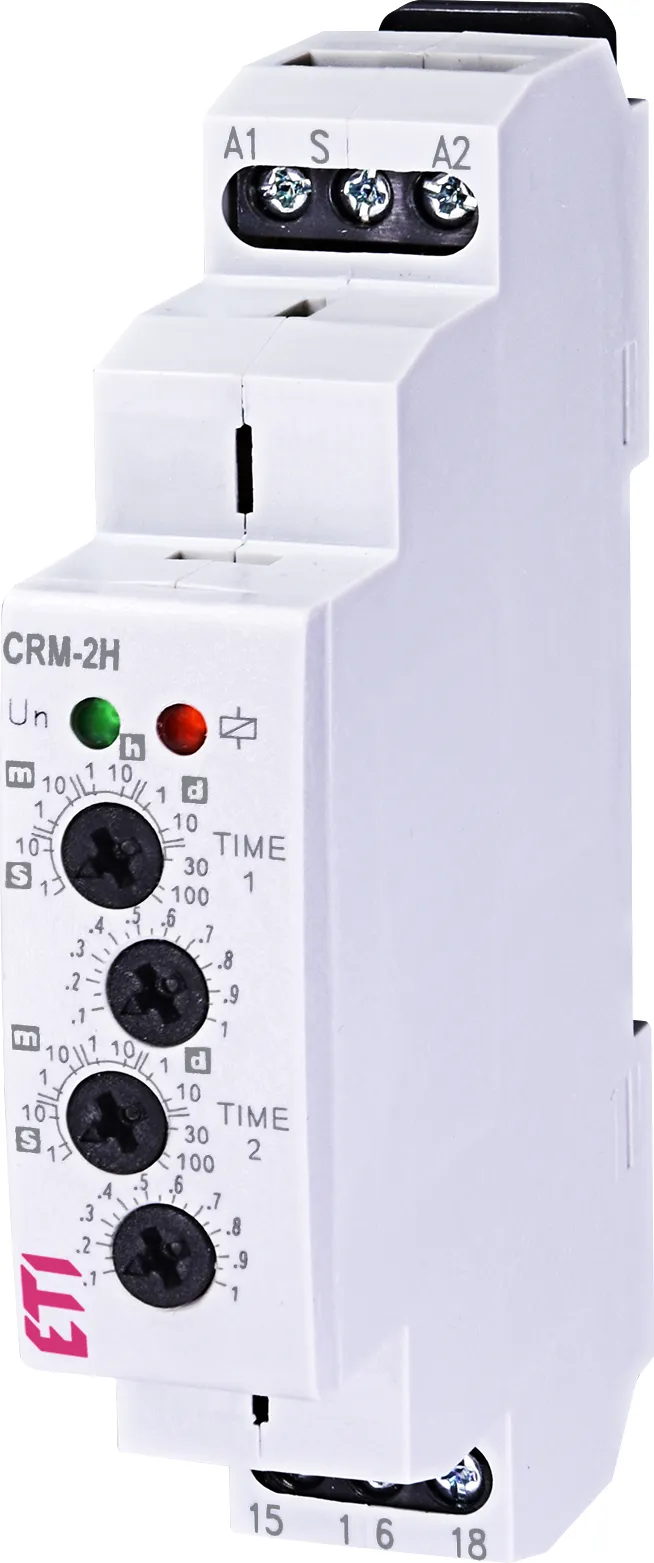

Time relay CRM-2H UNI 002470003
Specifications
- ETI Code:
- 002470003
- Description:
- CRM-2H UNI
- Class name:
- Time relay
- Maximum load capacity at AC1 (VA):
- 4000
- Function:
- Time relay
- Rated current (A):
- 16
- Voltage type:
- AC/DC
- Number of CO contacts:
- 1
- Supply voltage (V):
- 12 - 240
- Number of contacts:
- 1
- Time range:
- 0.1 s-100 days
- Number of functions:
- 2
Documents
Logistic Data
Product
- Net weight of the product
- 0.083 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 8594030338322
- Basic packaging weight
- 0.083 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895231219
- Transport packaging weight
- 0.833 kg
- Pallet quantity
- 9600
ETIM Clasification
- Classification
- EC001669
- Class name
- Timer relay for distribution board
- Voltage type
- AC/DC
- Rated current
- 16
- Type of excitation
- Digital with single function
- Function
- On/off-switch wiping relay
- 1st interval unit
- Minutes/hours
- 1st interval
- 0.02…2400
- 2nd interval unit
- Minutes/hours
- 2nd interval
- 0.02…2400
- Mounting method
- DIN rail
- Width in number of modular spacings
- 1
- Built-in height
- 65mm
- Number of changeover switches
- 1
- Control voltage 1
- 12…12V
- Type of control voltage 1
- AC/DC
- Frequency control voltage 1
- 50…50Hz
- Control voltage 2
- 240…240V
- Type of control voltage 2
- AC
- Frequency control voltage 2
- 50…60Hz
- Nominal switching current at 250 V AC
- 16A
