Aux.contacts RN-02 002464069
Specifications
- ETI Code:
- 002464069
- Description:
- RN-02
- Class name:
- Aux.contacts
- Function accessories:
- Auxiliary contactor block for contactors R25, R40, R63 AC
- For use with:
- Modular contactor
Documents
Logistic Data
Product
- Customs tariff
- 85389099
- logis_net_width
- 9 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 60 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895540960
- Transport packaging weight
- 0.03 kg
- Pallet quantity
- 18000
ETIM Clasification
- Classification
- EC001286
- Class name
- Auxiliary device for distribution board devices
- Device fitting
- Auxiliary switch / relay
- Additional equipment
- Auxiliary switch
- Assembly width (in number of modular spacings)
- 0,5
- Rated switch current
- 4A

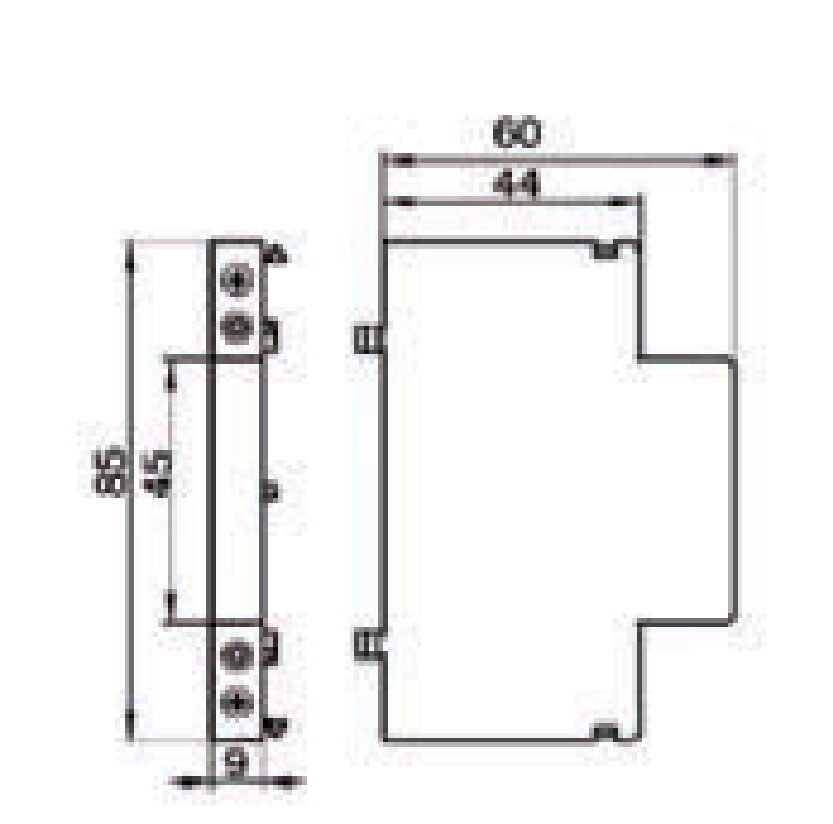

Images & Diagrams
