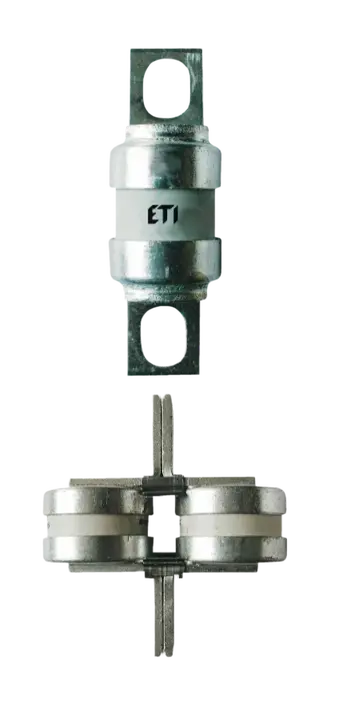

Fuse link BS38UQ/59/400A/240V 004750244 Obsolete This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement. Specifications Add to comparison Remove from comparison ETI Code: 004750244 Description: *BS38UQ/59/400A/240V Class name: Fuse link efuse: 1 Product group: Semiconductor Protection Type: BS Size: BS38 Rated current (A): 400 Rated AC voltage (V): 240 Rated DC voltage (V): 120 Characteristics: aR Breaking capacity AC (kA): 100 Breaking capacity DC (kA): 100 Application: For protection of semiconductor devices Power dissipation (W): 37 Operating joule integral (A2s): 78.000 Standards: IEC 60269-4, BS88 Part 4 Documents 2 Logistic Data ETIM Clasification v7.0 Characteristic 1 Images & Diagrams 3 Software & drivers 1 Tags Documents Technical data catalogue Eplan file Logistic Data Product Net weight of the product 0.196 kg Customs tariff 85361090 logis_net_width 38 mm logis_net_height 84 mm logis_net_depth 41 mm Basic packaging Basic packaging quantity 5 EAN code for a basic packaging 3838895415985 Basic packaging weight 0.85 kg Transport packaging Transport packaging quantity 10 EAN code for a transport packaging 3838895361275 Transport packaging weight 1.96 kg Pallet quantity 4080 ETIM Clasification Classification EC002704 Class name Cylindrical fuse Construction size BS38 Max. rated operation voltage Ue AC 240 Rated current 400 Rated voltage DC 120 Application For protection of semiconductor devices Size Other Rated voltage Other Utilization category Other Nominal current 400A Breaking capacity 100kA ETIM Classification – Version 7.0 Characteristic Images & Diagrams Software & drivers Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers. Tags 004750244 Flush mounted enclosure Fuse link, BS38UQ/59/400A/240V Ultra Quick System BS aR Characteristic aR Characteristic Rated voltage 240V BS38 Fuse links for semi conductor protection ULTRA QUICK Fuse links ULTRA QUICK BS38UQ/59/400A/2 Rated current 400A Type BS Size BS38 Product group Semiconductor Protection Characteristics aR Rated AC voltage 240V Rated DC voltage 120V Dimensions screw 59mm Breaking capacity AC 100kA Breaking capacity DC 100kA Power dissipation 37W Catalogue Group Semiconductor Protection Standards IEC 60269-4, BS88 Part 4 Operating joule integral 78.000A2s Application For protection of semiconductor devices
