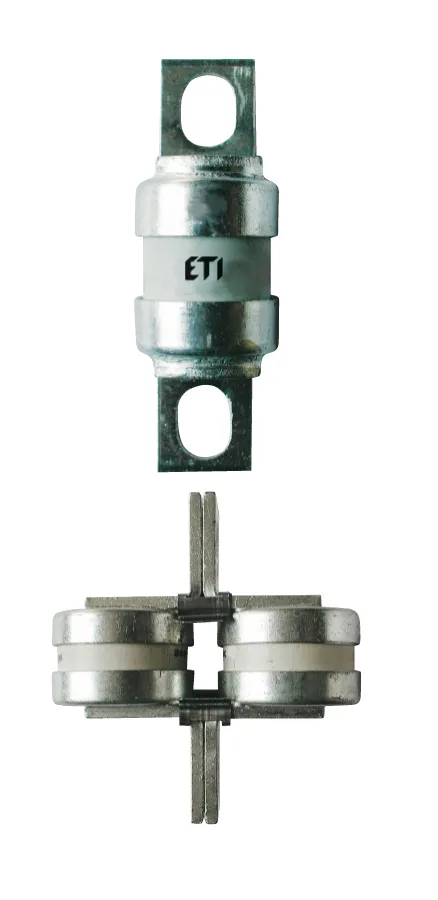

Fuse link BS38UQ/59/250A/240V 004750236 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004750236
- Description:
- *BS38UQ/59/250A/240V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- BS
- Size:
- BS38
- Rated current (A):
- 250
- Rated AC voltage (V):
- 240
- Rated DC voltage (V):
- 120
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 100
- Breaking capacity DC (kA):
- 100
- Application:
- For protection of semiconductor devices
- Power dissipation (W):
- 20
- Operating joule integral (A2s):
- 27.500
- Standards:
- IEC 60269-4, BS88 Part 4
Documents
Logistic Data
Product
- Net weight of the product
- 0.196 kg
- Customs tariff
- 85361090
- logis_net_width
- 38 mm
- logis_net_height
- 84 mm
- logis_net_depth
- 41 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895415954
- Basic packaging weight
- 0.85 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895361244
- Transport packaging weight
- 1.96 kg
- Pallet quantity
- 4080
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Rated voltage DC
- 120
- Rated current
- 250
- Application
- For protection of semiconductor devices
- Max. rated operation voltage Ue AC
- 240
- Construction size
- BS38
- Size
- Other
- Rated voltage
- Other
- Utilization category
- Other
- Nominal current
- 250A
- Breaking capacity
- 100kA
Characteristic
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.

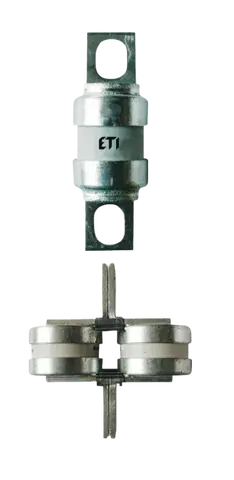

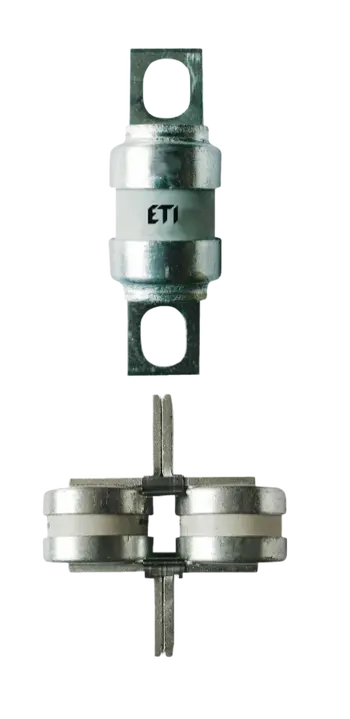

*BS38UQ/59/250A/240V
