Fuse link NHG2/M UQ01 aR 200A/1500V 004735155
Specifications
- ETI Code:
- 004735155
- Description:
- NHG2/M UQ01 aR 200A/1500V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- NH-G
- Size:
- NH3
- Rated current (A):
- 200
- Rated AC voltage (V):
- 1500
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 50
- Application:
- For protection of semiconductor devices
- Indicator:
- Centre trip indicator for MK
- Power dissipation (W):
- 40
- Operating joule integral (A2s):
- 45.000
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895637349
- Net weight of the product
- 1050 g
- Customs tariff
- 85351000
- logis_net_width
- 60 mm
- logis_net_height
- 106 mm
- logis_net_depth
- 60 mm
Transport packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838895637356
- Transport packaging weight
- 6.65 kg
- Pallet quantity
- 468
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH3
- Rated current
- 200
- Rated voltage
- 1500
- Voltage type
- AC
- Rated switching capacity
- 50
- Type of fuse status indicator
- Other
- Insulated metal gripping lugs (IMGL)
- No

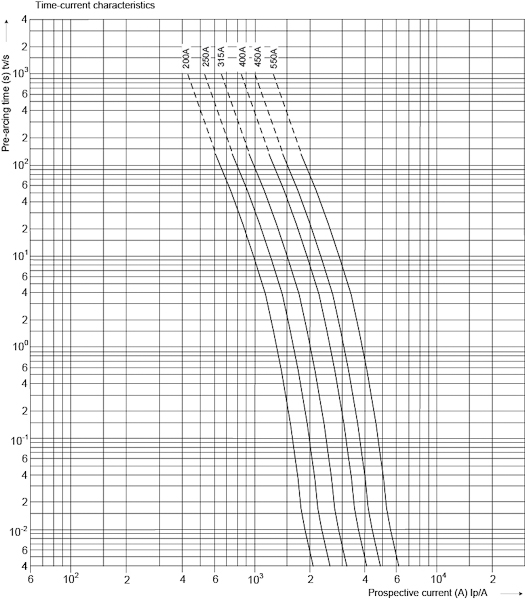

Characteristic

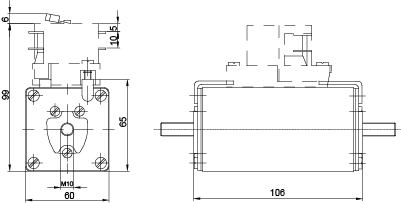

Images & Diagrams
