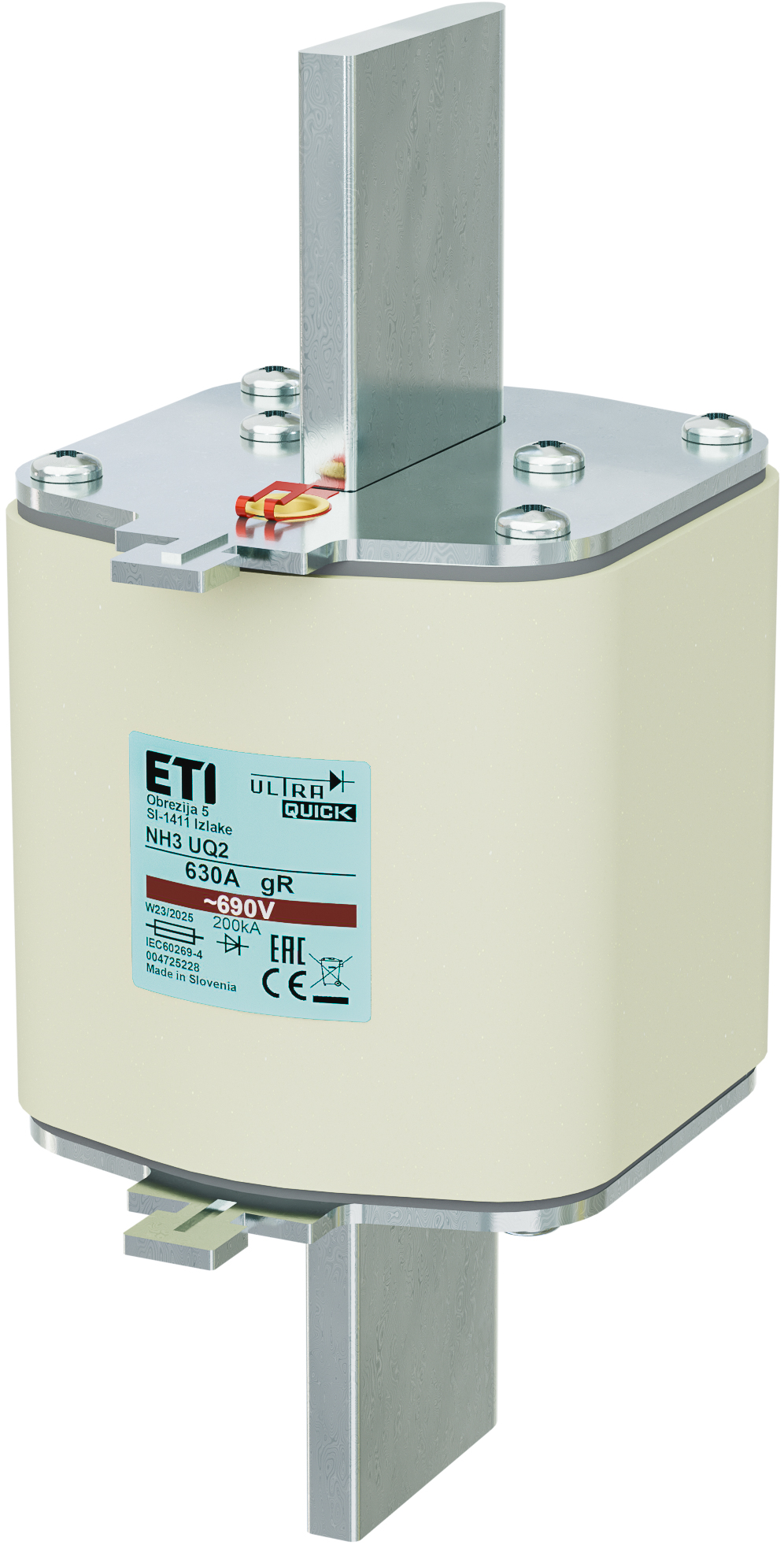

Fuse link NH3 UQ2 gR 630A/690V 004725228
Specifications
- ETI Code:
- 004725228
- Description:
- NH3 UQ2 gR 630A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- NH
- Size:
- NH3
- Rated current (A):
- 630
- Rated AC voltage (V):
- 690
- Characteristics:
- gR
- Breaking capacity AC (kA):
- 200
- Application:
- For protection of semiconductor devices
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 160
- Operating joule integral (A2s):
- 400.000
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895350651
- Net weight of the product
- 0.918 kg
- Customs tariff
- 85361090
- logis_net_width
- 64 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 84 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895366355
- Basic packaging weight
- 2.83 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895562245
- Transport packaging weight
- 14.7 kg
- Pallet quantity
- 360
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH3
- Rated current
- 630
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 200
- Utilization category
- gR (general purpose semiconductor protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
