Fuse link NH2XL gBat 350A/1100V DC 004724359
Specifications
- ETI Code:
- 004724359
- Description:
- NH2XL gBat 350A/1100V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 350
- Type:
- NH

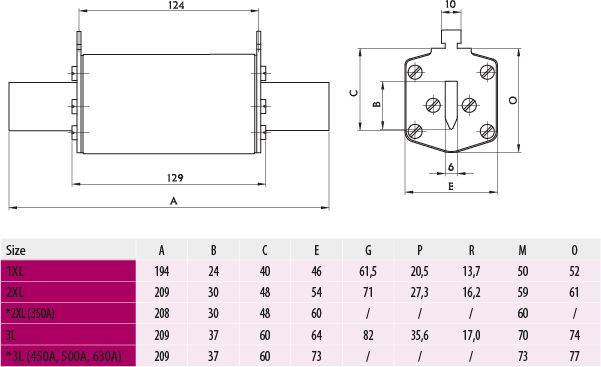

- Size:
- 2XL
- Characteristics:
- gBat
- Rated DC voltage (V):
- 1100
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 30
- Operating joule integral (A2s):
- 130.000
- L/R (ms):
- 2

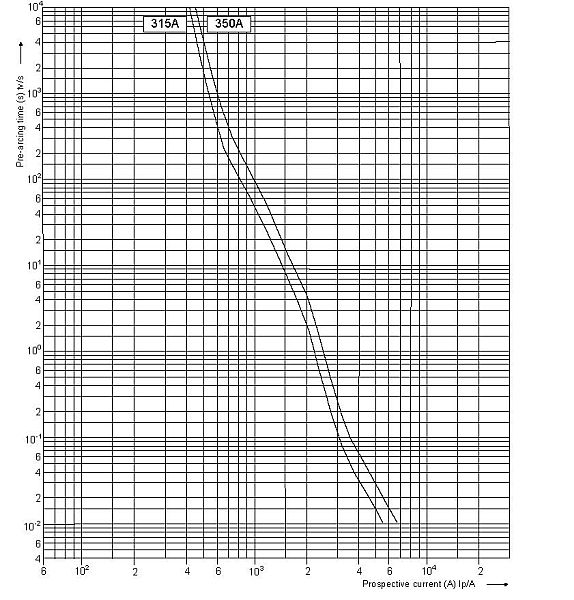

- Prearcing joule integral (A2s):
- 40.000
- Application:
- Battery protection
- Power dissipation (W):
- 65,5
- Power dissipation (0,7x In) (W):
- 27
- Standards:
- IEC 60269
Documents
Logistic Data
Product
- Net weight of the product
- 1050 g
- Customs tariff
- 85351000
- logis_net_width
- 54 mm
- logis_net_height
- 71 mm
- logis_net_depth
- 61 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895898436
- Basic packaging weight
- 1.3 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895898443
- Transport packaging weight
- 15.95 kg
- Pallet quantity
- 624
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- Battery protection
- Rated voltage DC
- 1100
- Construction size
- Other
- Rated current
- 350
- Rated voltage
- 1100
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
NH2XL gBat 350A/1100V DC
