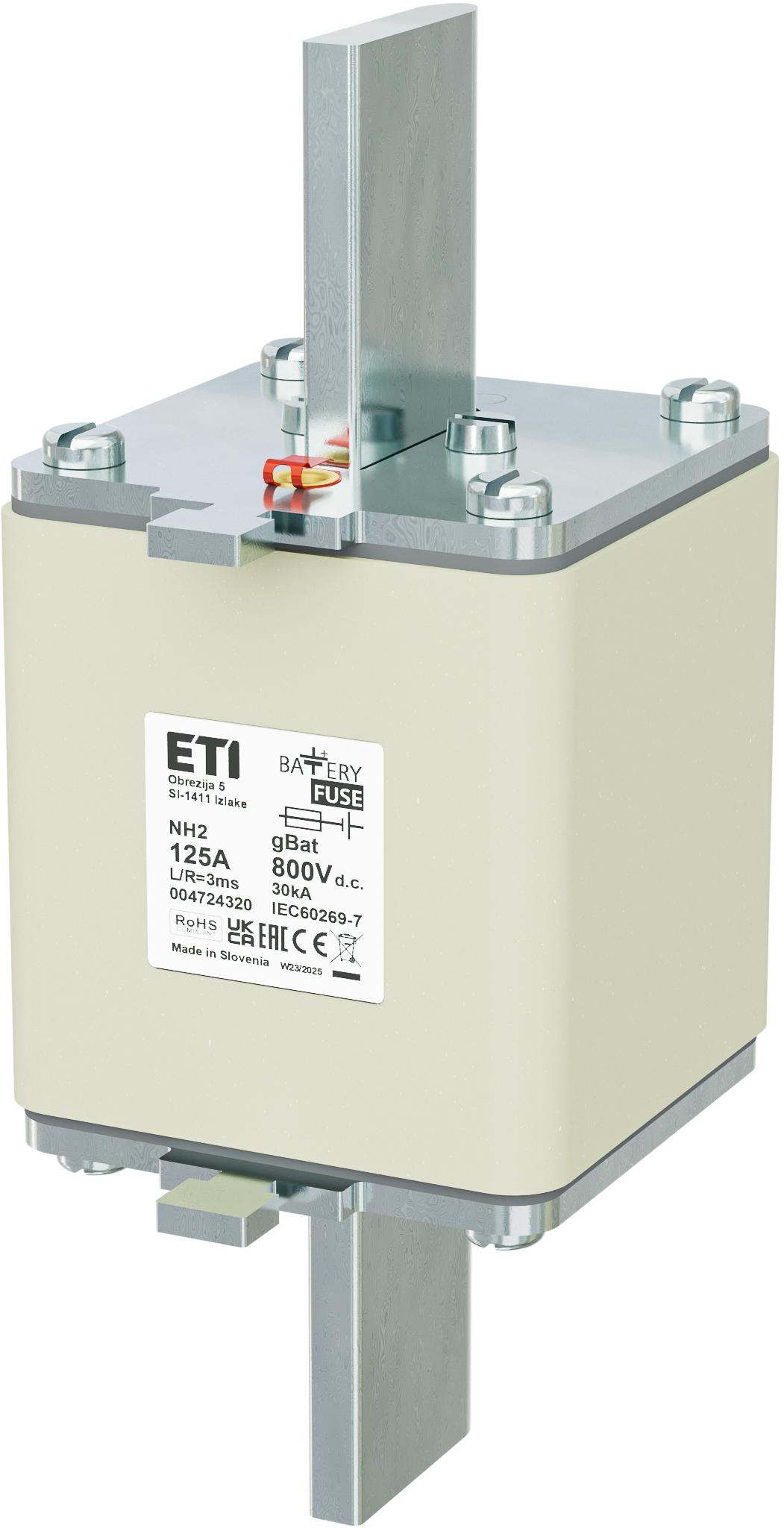

Fuse link NH2 gBat 125A/800V DC 004724320
Specifications
- ETI Code:
- 004724320
- Description:
- NH2 gBat 125A/800V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 125
- Type:
- NH
- Size:
- NH2
- Characteristics:
- gBat
- Rated DC voltage (V):
- 800
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 30
- Operating joule integral (A2s):
- 13.046
- L/R (ms):
- 3
- Prearcing joule integral (A2s):
- 2.200
- Application:
- Battery protection
- Power dissipation (W):
- 20
- Power dissipation (0,7x In) (W):
- 9
- Standards:
- IEC 60269-7
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895760306
- Net weight of the product
- 700 g
- Customs tariff
- 85361090
- logis_net_width
- 55 mm
- logis_net_height
- 151 mm
- logis_net_depth
- 72 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895707875
- Basic packaging weight
- 2.08 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895707882
- Transport packaging weight
- 17.96 kg
- Pallet quantity
- 1248
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- Battery protection
- Rated voltage DC
- 800
- Construction size
- NH2
- Rated current
- 125
- Rated voltage
- 800
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
