Fuse link NHS1/110 gS 160A/690V 004723250
Specifications
- ETI Code:
- 004723250
- Description:
- NHS1/110 gS 160A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- NH
- Size:
- NH1
- Rated current (A):
- 160
- Rated AC voltage (V):
- 690
- Characteristics:
- gS
- Breaking capacity AC (kA):
- 100
- Application:
- For protection of semiconductor devices
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 23

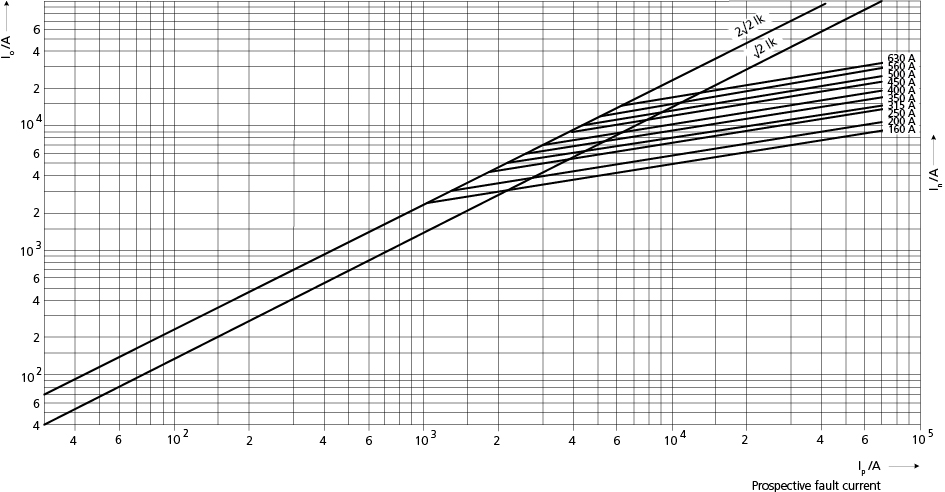

- Operating joule integral (A2s):
- 61.500
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895566304
- Net weight of the product
- 490 g
- Customs tariff
- 85361090

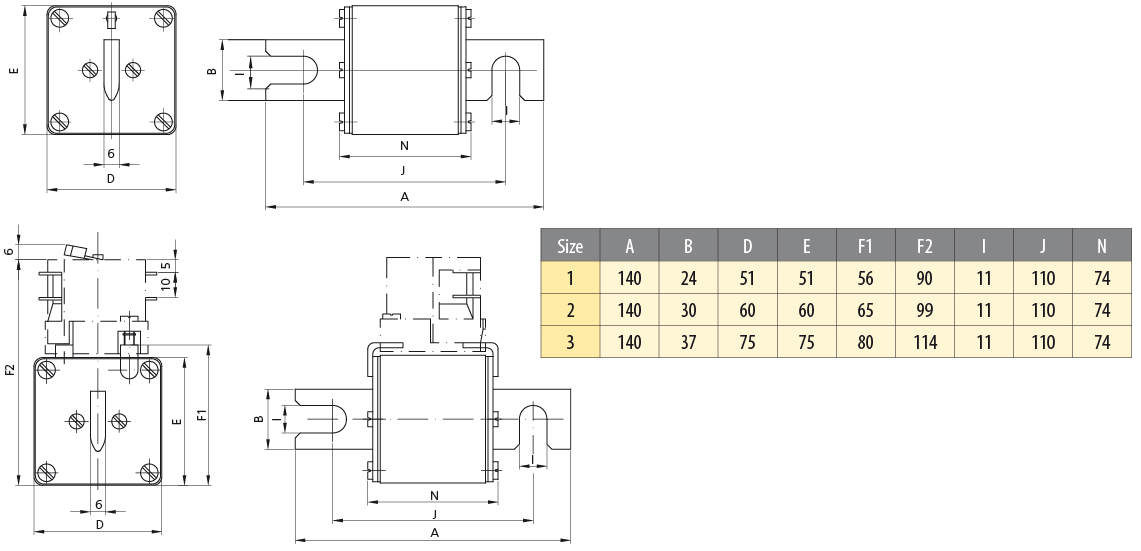

- logis_net_width
- 51 mm
- logis_net_height
- 139 mm
- logis_net_depth
- 51 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895505921
- Basic packaging weight
- 0.53 kg
Transport packaging
- Transport packaging quantity
- 26
- EAN code for a transport packaging
- 3838895566311
- Transport packaging weight
- 14.13 kg
- Pallet quantity
- 1352
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Max. rated operation voltage Ue AC
- 690
- Application
- For protection of semiconductor devices
- Breaking capacity
- 100
- Construction size
- NH1
- Rated current
- 160
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

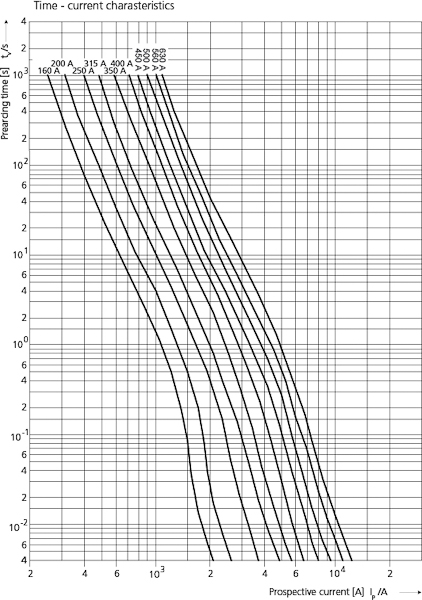

Characteristic
