Fuse link NH1 gS 250A/690V 004723232

Specifications

ETI Code:
004723232
Description:
NH1 gS 250A/690V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
NH
Size:
NH1
Rated current (A):
250
Rated AC voltage (V):
690
Characteristics:
gS
Breaking capacity AC (kA):
100
Application:
For protection of semiconductor devices
Indicator:
Top fuse status indicator
Power dissipation (W):
30
Operating joule integral (A2s):
202.000
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895757290
Net weight of the product
640  g
Customs tariff
85361090
logis_net_width
51  mm
logis_net_height
135  mm
logis_net_depth
63  mm

Basic packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895505556
Basic packaging weight
1.36  kg

Transport packaging

Transport packaging quantity
24
EAN code for a transport packaging
3838895565208
Transport packaging weight
11.23  kg
Pallet quantity
576
Classification
EC000055
Class name
Low Voltage HRC fuse
Max. rated operation voltage Ue AC
690
Application
For protection of semiconductor devices
Breaking capacity
100
Construction size
NH1
Rated current
250
Rated voltage
690
Voltage type
AC
Rated switching capacity
100
Utilization category
Other
Type of fuse status indicator
Top fuse status indicator
Insulated metal gripping lugs (IMGL)
No
ETIM Classification – Version 7.0

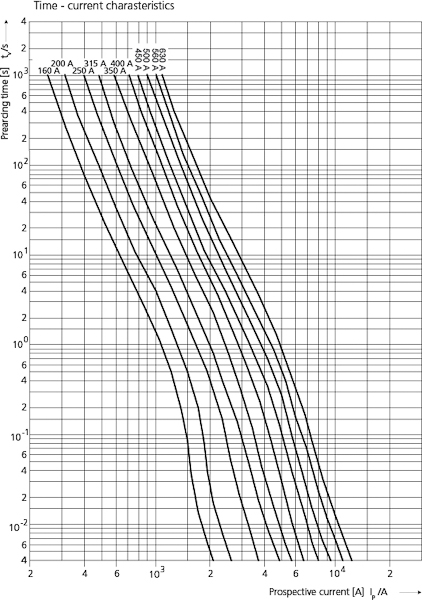

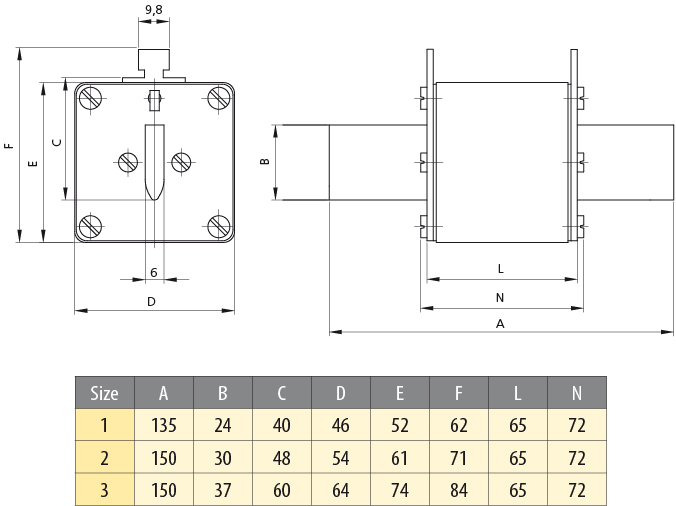

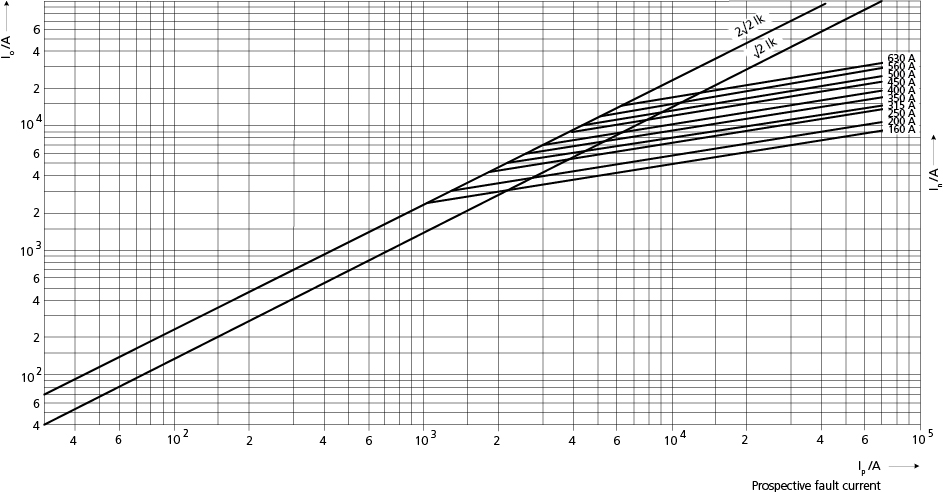

Images & Diagrams
