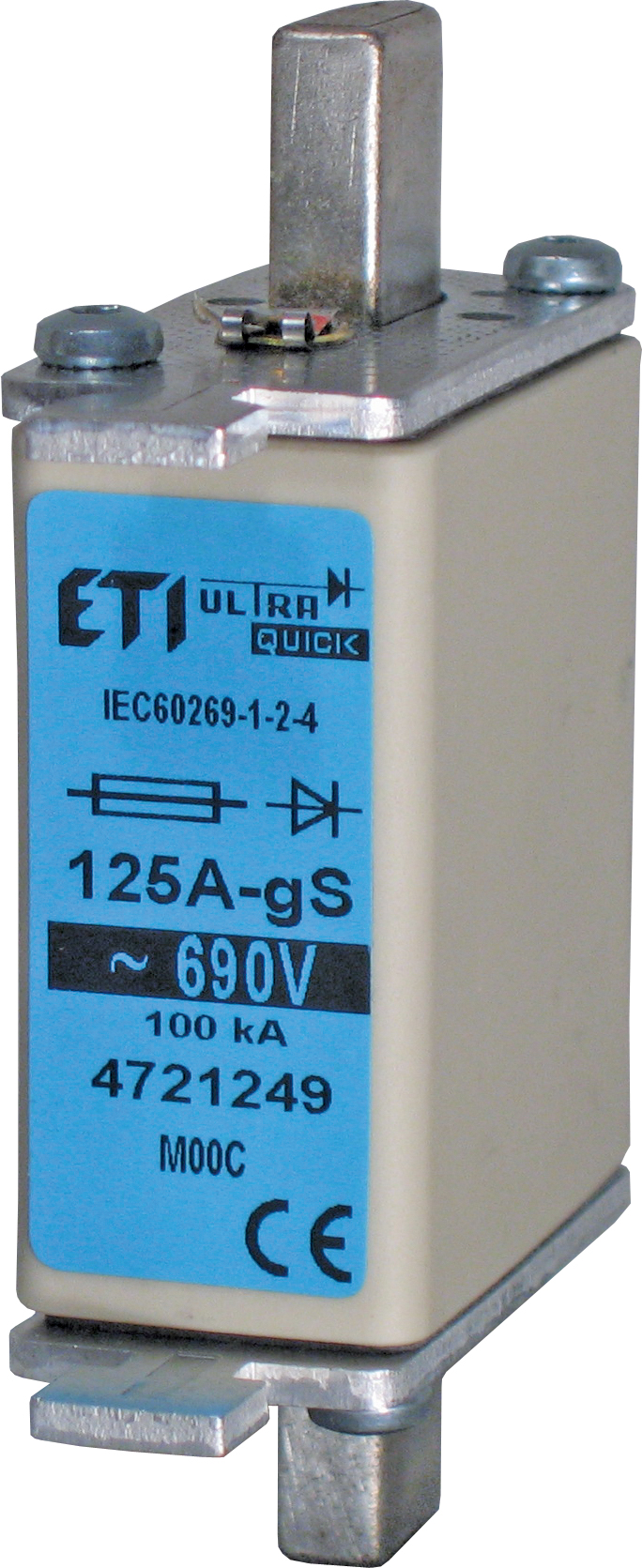

Fuse link NH000 gS 125A/690V 004721249
Specifications
- ETI Code:
- 004721249
- Description:
- NH000 gS 125A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- NH
- Size:
- NH000
- Rated current (A):
- 125
- Rated AC voltage (V):
- 690
- Characteristics:
- gS
- Breaking capacity AC (kA):
- 100
- Application:
- For protection of semiconductor devices
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 11,7

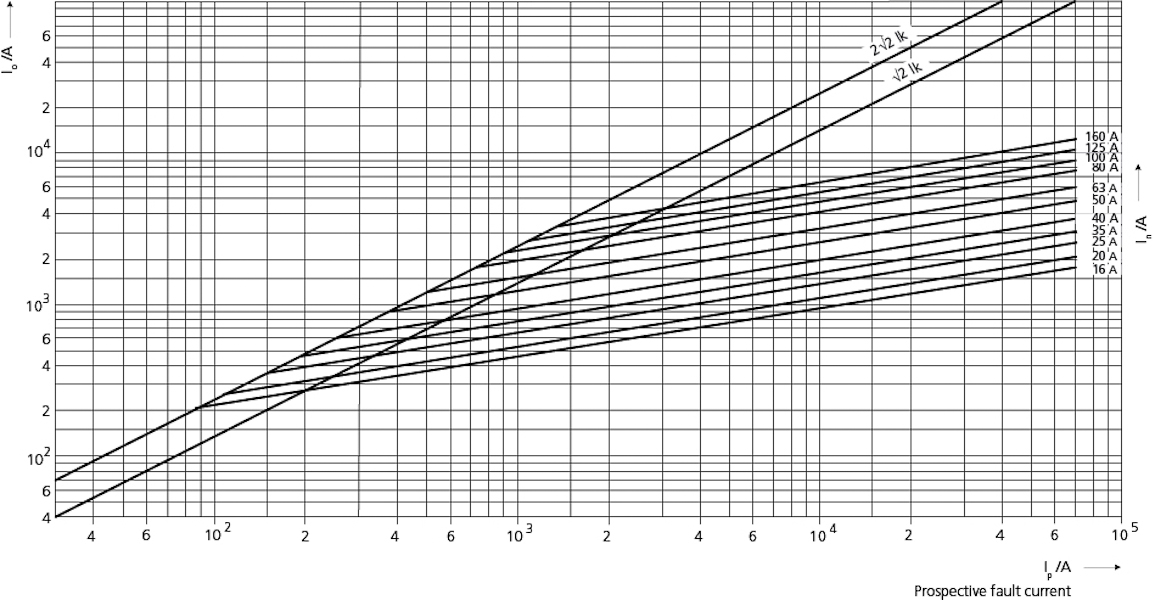

- Operating joule integral (A2s):
- 64.500
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895757252
- Net weight of the product
- 120 g
- Customs tariff
- 85361090

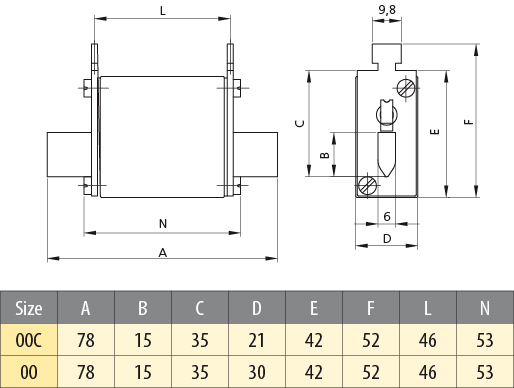

- logis_net_width
- 21 mm
- logis_net_height
- 78 mm
- logis_net_depth
- 52 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895493907
- Basic packaging weight
- 0.52 kg
Transport packaging
- Transport packaging quantity
- 120
- EAN code for a transport packaging
- 3838895565161
- Transport packaging weight
- 21.15 kg
- Pallet quantity
- 6240
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Max. rated operation voltage Ue AC
- 690
- Application
- For protection of semiconductor devices
- Breaking capacity
- 100
- Construction size
- NH000
- Rated current
- 125
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

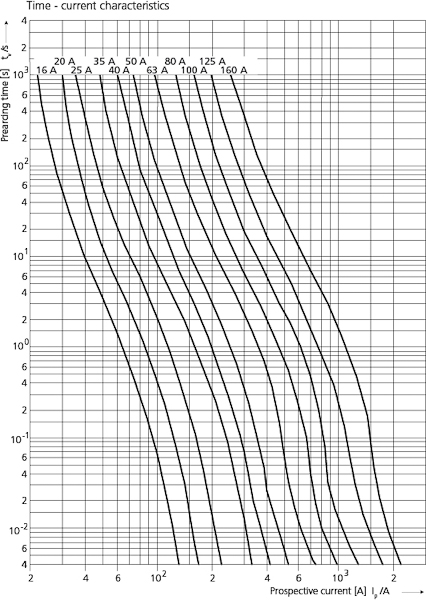

Characteristic
